66 Matrix SETU ATA211 V1 System Manual

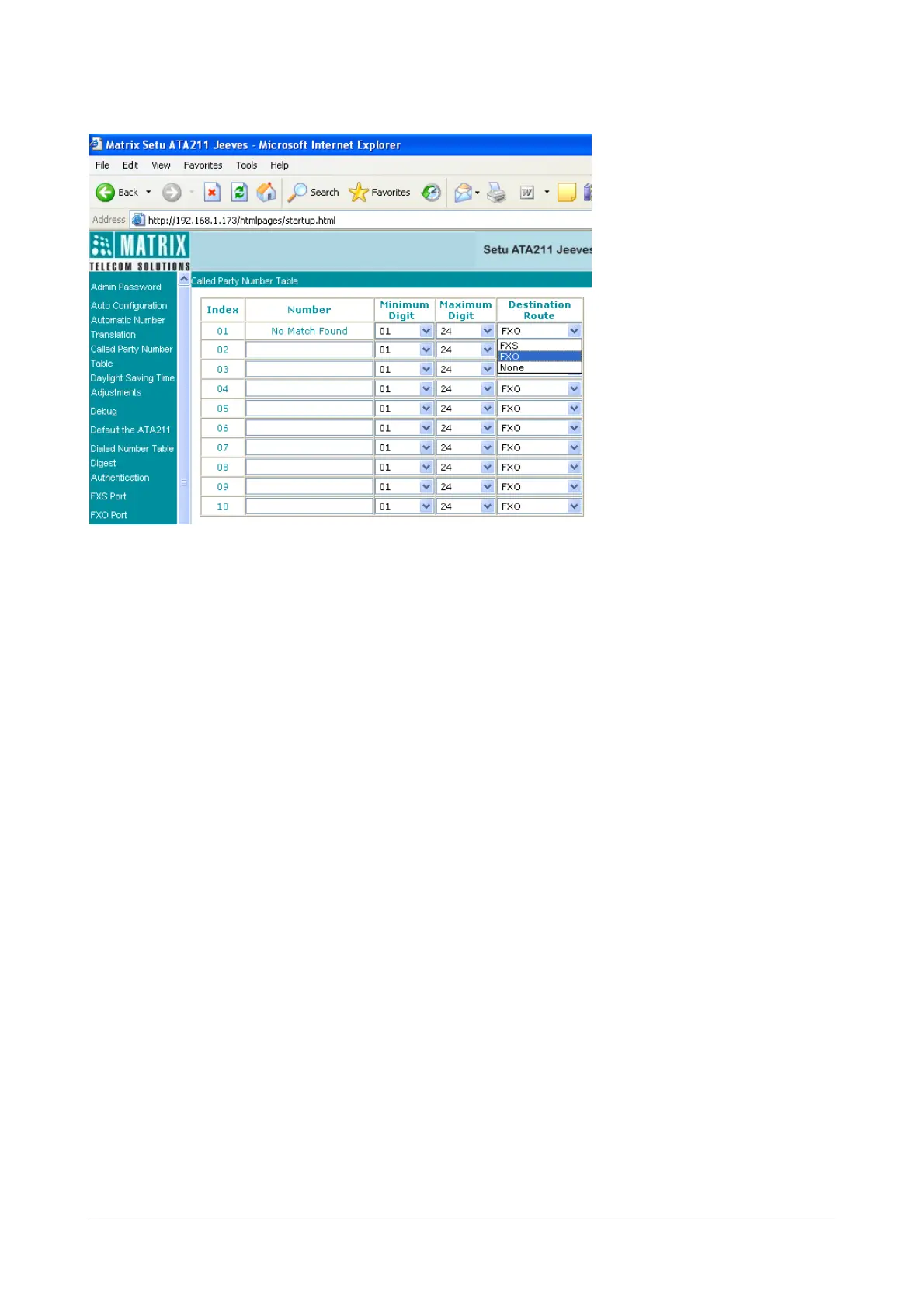

The Webpage will be as shown below:
You can program maximum of 10 entries in the Table at different Index from 01 to 10.
• Number: Program numbers which will be received as the 'Called Number' at the Index 02 to 10, using
max.24 characters. ASCII Characters are allowed. 1st.entry, is for the case 'No Match Found' and number
can not be programmed in this field. Default = Blank for Index02 to Index10.
• Minimum Digit: Program number for Minimum digit for the valid number to be routed by ATA.
Range = 01-24, Default = 01 for all Index.
• Maximum Digit: Program number for Maximum digits for the Number to be routed by ATA.
Range = 01-24, Default = 24 for all Index.
• Destination Route: Select the route on which ATA should place a call when the programmed prefix
number is received during Incoming call.
• For Index01: You can select the option for the route, from: None/FXS/FXO. If 'None' is programmed
all the IC calls for No match number will be rejected. Default = FXS.
• For Index02 to Index10: You can select the option for the route from: FXS/FXO. Default = FXO.
Relevant Topics:
1. “SIP Accounts” 104
2. “Dialed Number Table” 74
