— 1.19 —

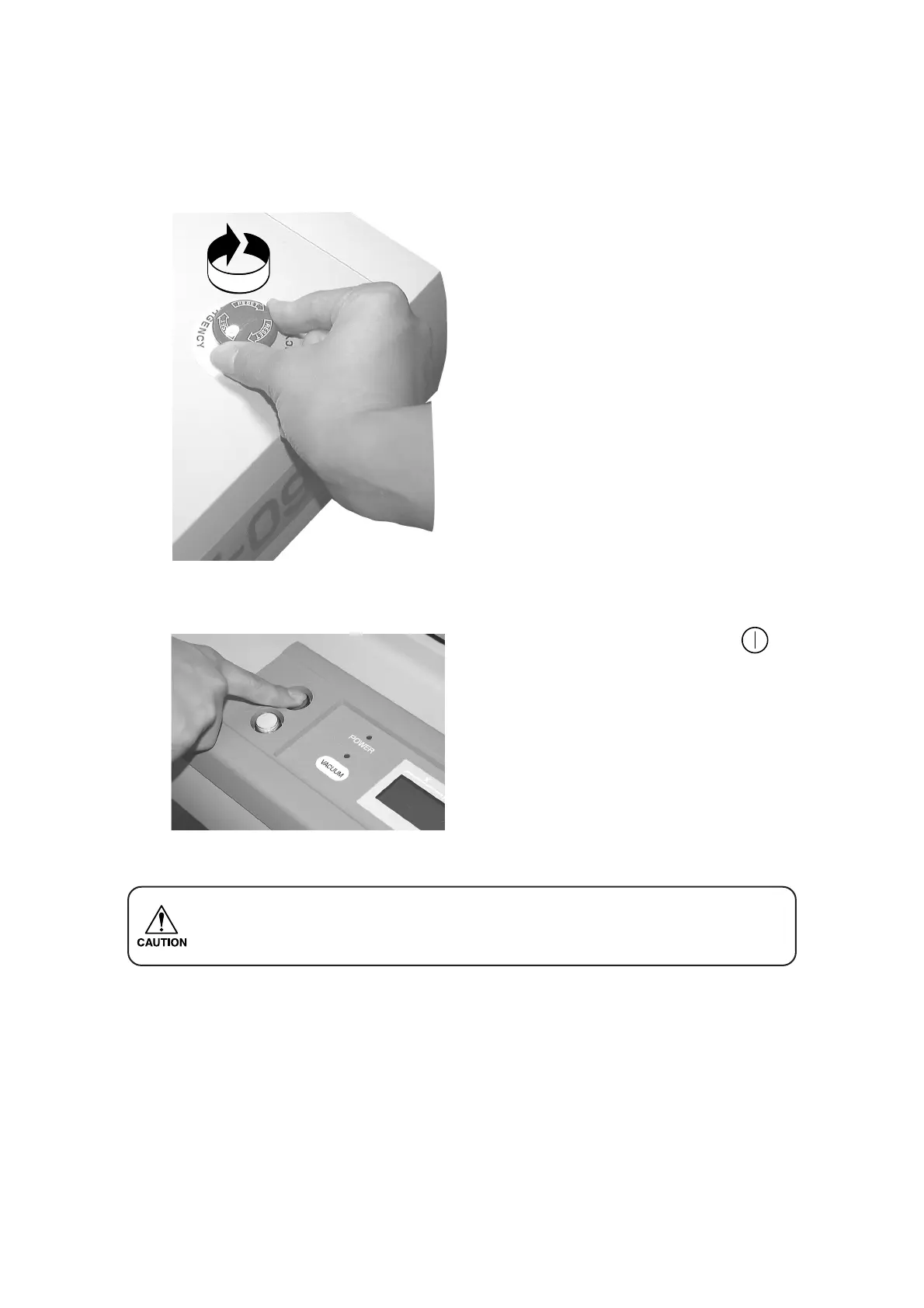

How to r
eset the emergency stop
1
Tu
rn
the EMERGENCY button clock-
wise f
or unlocking.
2
Press the PO
WER ON switch
.
The device will start up.
•T
o recov
er from an emergency stop, do so after po
wering of
f the de
vice and waiting
for 30 seconds. Failure to do so will result in malfunction.
34
36
Table of Contents
Table of Contents
12
Warning
5
Chapter 1 Set-Up
9
Table of Contents
12
Chapter 1 Set-Up
17
Installation Site
18
Blower Installation Area
19
Effective Cutting Area
20
Checking the Accessories
21
Configuration and Function
22
Main Unit
22
Right-Hand Side Face of the Electrical Box
23
Blower Unit
23
Head
24
Operation Panel
26
Connecting the Cables
28
Connecting the Signal Wire Cable for the Blower
28
Connecting the Interface Cable
29
Connecting the Power Cable
30
Turning the Power On/Off
32
Turning the Power on
32
Turning the Power off
33
Emergency Stop
34
How to Stop the Device in an Emergency
34
How to Reset the Emergency Stop
35
Local/Remote Modes
36
LOCAL Mode and the Indication on the LCD
36
REMOTE Mode and the Indications on the LCD
37
Matching the Functions of the Device to the Specifications of the Computer
38
Chapter 2 Basic Operation
49
Basic Operation on the Local Menu
50
LOCAL Menu
50
MODE SET Menu
51
Basic Operation on the LOCAL Menu
52
Basic Operation Flow Chart
54
Moving the Head
55
Moving the Head by "VIEW" Function
55
Moving the Head by the Jog Keys
57
Fixing a Work
58
Fixing a Work that Is Comparatively Light in Weight
58
Fixing Heavy-Weight Packing Etc
59
Adjusting the Blade and the Pen
60
Cutter Holders 4N and 10N (for Unit C)
60
Cutter Holder 2N (for Unit B)
61
Reciprocal Cutter Holder (for Unit B)
62
Crease Plate (for Unit C of RC Head)
63
Swievel Cutter (Optional)
64
Attaching the Tools
65
Attaching the Pen and the Swievel Blade
66
Attaching the Tangential Cutter
67
Attaching the Reciprocal Cutter (Cutter Holder)
69
Installing the Crease Roller
70
Adjusting the Height of the Head
71
Attaching the Work Holder
73
Selecting a Tool [Tool Select]
75
Setting Cutting Conditions [Condition]
77
Setting Items
77
Set Values
80
Plotting Conditions for Pens
80
Cutting Conditions for the Tangential Cutter
80
Marking Conditions for the Crease Roller
81
Cutting Conditions for the Swievel Blade
81
Setting Cutting Conditions
82
Checking Cutting Conditions [Test Cut]
85
Checking the Status of Tools
87
Pen
87
Tangential Cutter
87
Crease Roller
88
Swievel Blade
88
Checking the Status of Tools
89
Setting the Cutting Area [Cut Area]
93
Setting the Origin (Origin for Plotting)
97
(Plotting, Cutting or Creasing)
98
How to Interrupt/Resume the Process
98
Functions that Can be Specified after the Interruption
98
Interruption of Processing
98
Interruption of Processing [DATA CLEAR]
99
Chapter 3 W H E N a B N O R M a L C O N D I T I O N S a R E/Encountered
101
Encountered
101
If any of the Below-Stated Phenomena Takes Place
102
If any of the Below-Stated Phenomena
102
Takes Place
102
Cutting Depth Is Insufficient. [CONDITION] > [PRESS CORRECT]
102
The Work Remains Uncut at the Cutting Start and End
102
[Condition] > [Start/End Correct]
102
Corrugated Board Is Cut out at Flutes Though Creasing Is Performed. [CONDITION] > [PRESS (Y)]
104
Flowchart of Checking and Adjusting Procedures
105
Tools Are Not Aligned to each Other. [Tool Select]
105
General Explanation of the Adjustment of Tools
106
Adjustment of the Cutter
106
Adjustment of the Eccentricity
106
Adjustment of the Q Angle
108
Adjustment of the Offset
109
Adjustment of the Roller
110
How to Adjust the Tools
114
If There Is a Sign of Failure
117
The Device Not at All Actuates Even When the Power to the Device Is Turned on
117
The Device Fails to Actuate Even When Data Is Transmitted from CAD
117
Error Arises When Transmitting Data
117
There Is no Reciprocal Vibration
118
The Tool Drags on the Sheet of Paper
118
Dotted Lines or Blurred Lines Are Plotted
118
Errors that Can be Corrected by Users
119
Troubles for Which Error Messages Are
119
Given on the Lcd
119
Errors that Cannot be Corrected by Users
121
Chapter 4 Application Functions
123
Assignment of Pen Numbers [Mode Set] > [Pen Asign]
124
Re-Cut of the same Data [Copy]
126
Setting the Number Cut Function
128
[Mode Set] > [Multi-Pass]
128
Setting the One-Stroke Cutting
130
[Mode Set] > [One Stroke]
130
Setting the Cutter Stroke [Mode Set] > [Z Stroke]
132
Setting the Unit to be Used for Indication
133
[Mode Set] > [Unit]
133
Setting the Dummy Cut Operation of
134
The Swievel Blade [Mode Set] > [Dummy Cut]
134
Interface of Communication Conditions [Inteface]
136
Alignment of Mechanical Axes to
138
Ruled Lines Printed [Axis Align]
138
Chapter 5 Self-Test
141
CHAPTER 5 Self-Test
142
Confirmation of Cutting Quality Only by
142
The Single Unit of the Device [Self Test]
142
Cutting Quality * / Sample *** / Circle Cutting R
143
Dump Test [Self Test]
145
Executing the Data Dump
145
Execution of the Parameter Dump
147
Appendix
149
Replacing the Blade Tips
150
Tangential Cutter Blade
150
Swievel Blade
152
This Appendix Describes the Replacement of Blades, Menu Structure and the Patterns.
150
Local Menu Structure
154
RC-Head Model
154
RT-Head Model
156
Output Samples
159
Cutting Quality 1
159
Cutting Quality 2
159
ASCII Dump List
160
Sample (Coated)
160
Sample (E Corrugated)
161
Sample (B Corrugated)
161
Circle Cutting R=3/5/10/20/50/100
162
Parameter Dump List
162
Specifications
163
Basic Specifications
163
Specifications for Interface Specifications
164
Maintenance
165
Cutting Panel Surface
165
Unit B
165
Cover
165
Optional Accessories
167
Swievel Cutter Components
167
Creasing Roller Components
167
Reciprocal Relationships
167
