Reciprocal cutter holder (for unit B)
The reciprocal cutter holder is a cutter used for the unit B.
The reciprocal cutter holder comes in two types, according to the type of application.
The procedure for attaching the cutter holder 06 blade is described below.

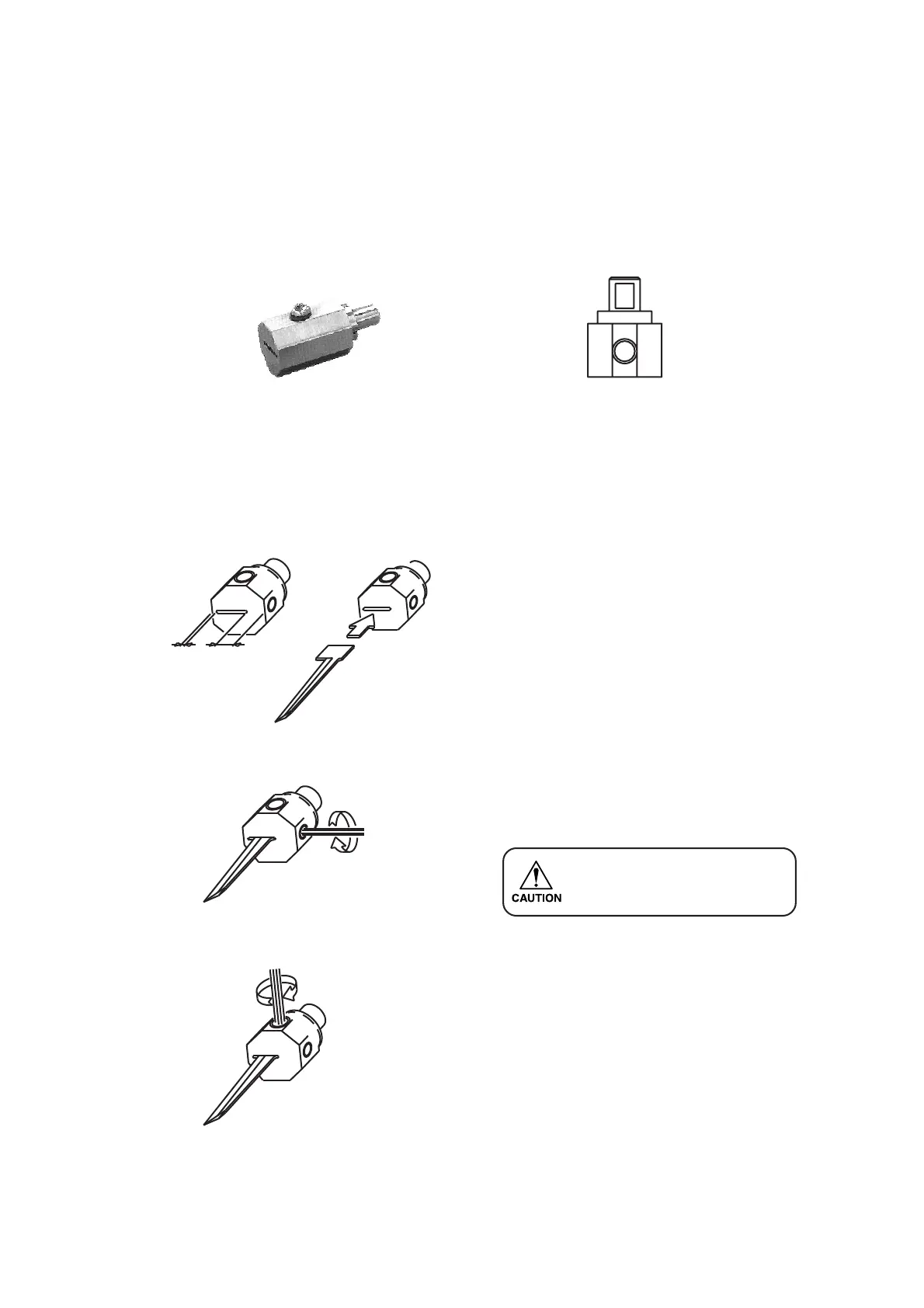

1 Push in the blade all the way into the
cutter holder.
Use the supplied pin set to be safe.
Pay attention to the blade orientation.
2 Using the supplied hex wrench (1.5
mm), fix the blade by tightening the
fixing screw.
• The amount of blade protrusion
cannot be adjusted.
3 Using the supplied hex wrench (2.0
mm), fix the blade by tightening the
fixing screw.
For RC head unit B
Name: Cutter holder 07
Applicable blade: Carbide blade 17 (SPB-0065)
20-mm blade (SPB-0055)
For RT head unit B
Name: Cutter holder 06
Applicable blade: Carbide blade 2° (SPB-0064)
Short Long
Hex wrench 1.5 mm
Hex wrench 2.0 mm
