— 2.41 —
Checking the status of tools
Check the relation between the tools (th pen and the tangential cutter, and the pen and the crease
roller) using the TEST CUT function.
For this purpose, perform plotting first using the pen, then execute the test cut function using the
tangential cutter or the crease roller at the same position to check the relation between the tools.
The following describes how to correct problems on ten samples. The number of items required to
be adjusted differs with the samples. Determine the items to be adjusted using the samples as a
guide. In these sample, the relation between the pen and the tangential cutter is explained. In the
case of the crease roller, read the following while replacing the description “tangential cutter” with
the “crease roller.”

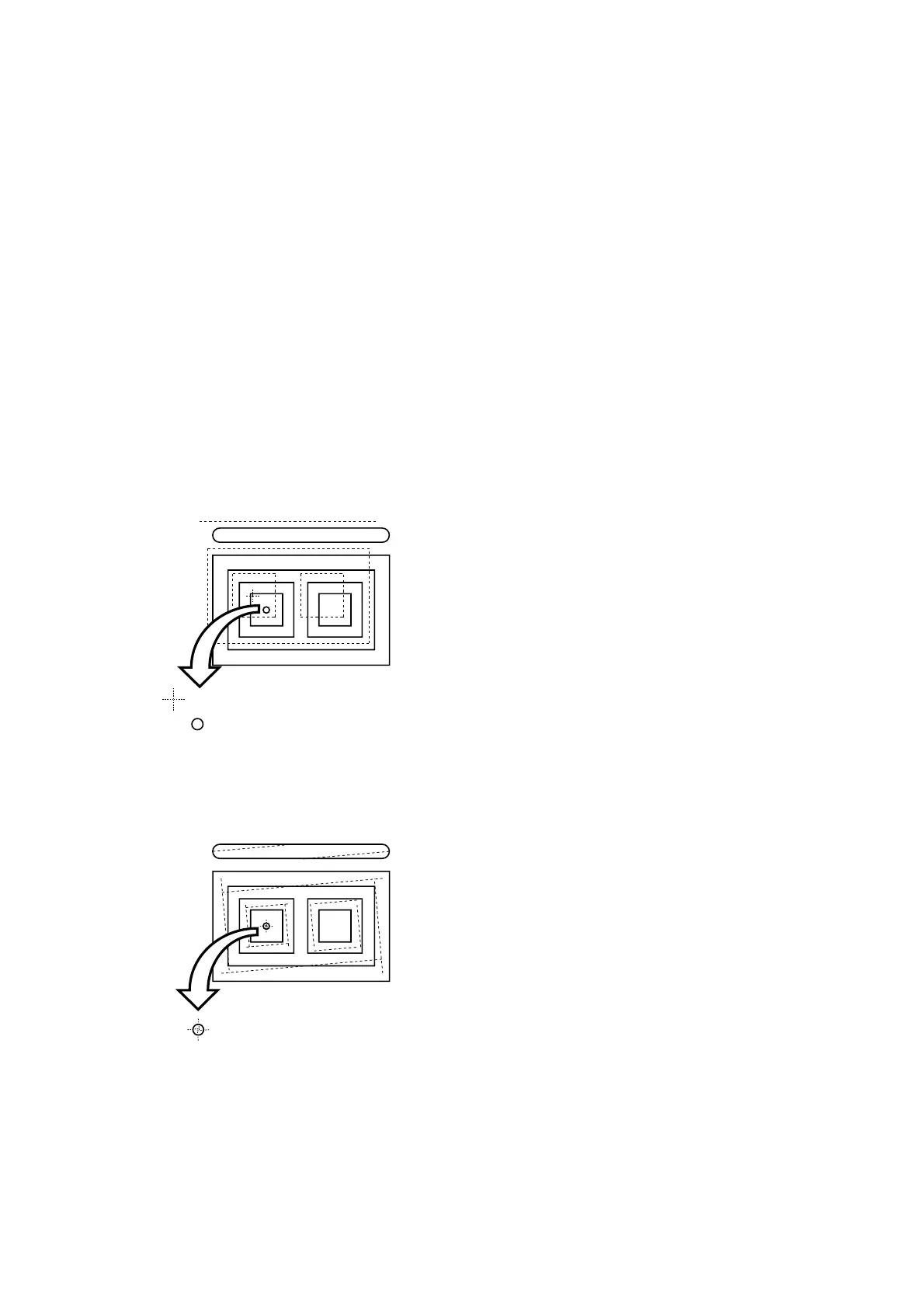

Sample A
The tangential cutter is out of the correct position regardless of the proceeding direction.
Corrective measure
Perform the offset function contained in
the cutter adjusting functions of the tool
adjusting functions. (See page 3.9.)
Sample B
The cutter rotates clockwise (or counterclockwise).
Corrective measure
Conduct the θ angle adjustment contained
in the cutter adjusting functions of the tool
adjusting functions. (See page 3.8.)
To Next Page
