— 2.49 —

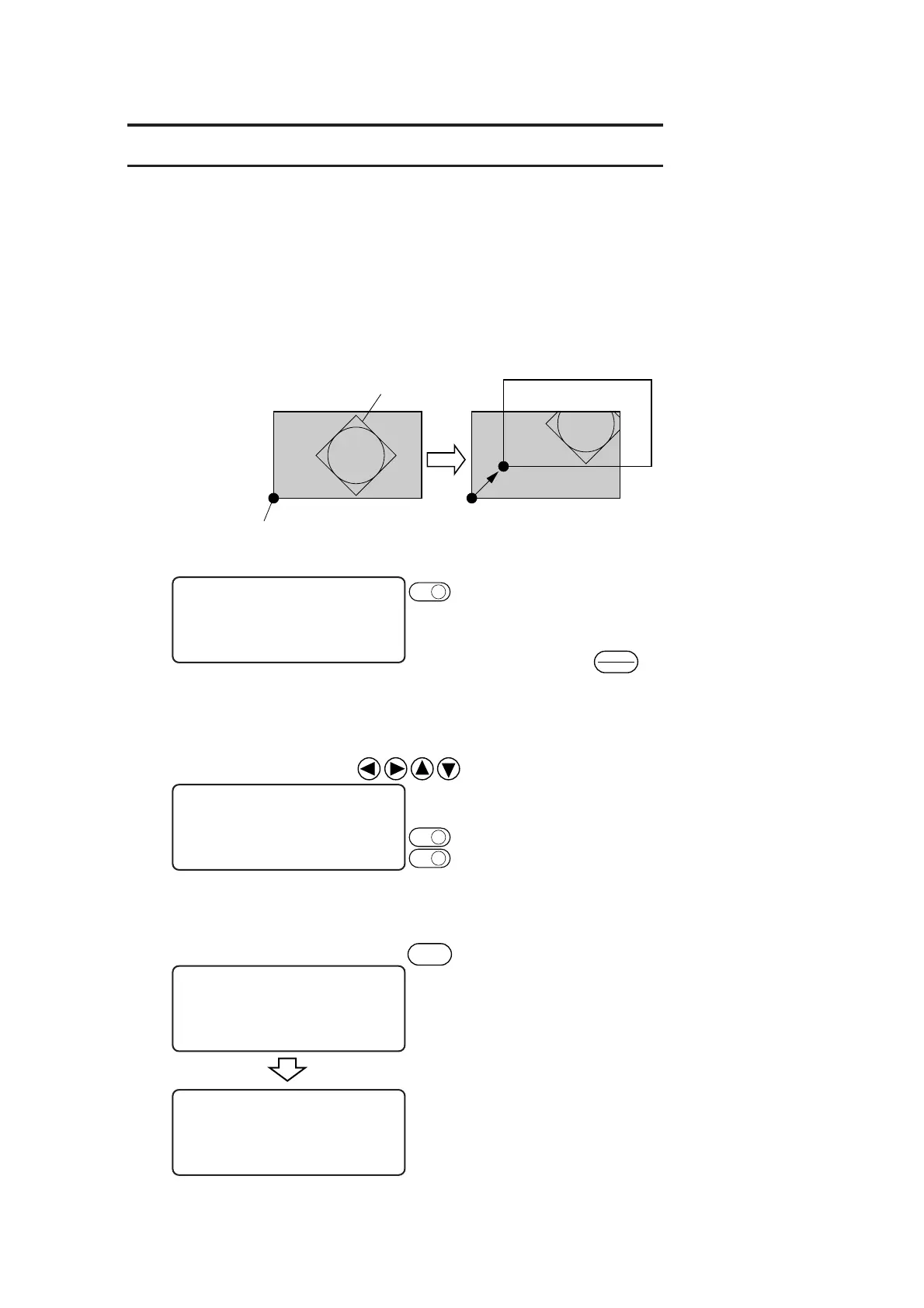

SETTING THE ORIGIN (ORIGIN FOR PLOTTING)
The origin is the reference point that is used for plotting, cutting and marking.
The plotting position can be moved by changing the location of the origin.
Coordinate of the origin are always (0,0). If the head is moved using the jog keys, the coordinates
of the head as from the origin are indicated on the LCD.
Normally, the origin is established at the lower left of the max. effective cutting area.
When executing the sample cut function, each piece of data is cut (crease, plotted) near the origin.
Max. effective cutting area
Origin (origin for plotting)
Data
1 Invoke the LOCAL menu on the
screen.
If the device is in the REMOTE mode,
press the
REMOTE
LOCAL
key to select the LO-
CAL mode.
You may open any page of the menu from
among pages 1 to 4.
2 Move the head using the jog keys to
the point at which the origin is to be
set.
Coordinates of the tip of the tool currently
selected are shown on the screen.
Increase/decrease the speed and lift/lower
the tip of the tool when necessary.
3 Set an origin to the desired point.
[ LOCAL ] 1 / 4
TOOL SELECT ———>
CONDITION ———>
TEST CUT ———>
< MOVE > [ mm ]
0.6 0.0
SPEED FAST >
PEN UP >
ORIGIN
< MOVE > [ mm ]
382.6 565.0
SPEED FAST >
PEN UP >
[ LOCAL ] 1 / 4
TOOL SELECT ———>
CONDITION ———>
TEST CUT ———>
PAGE
+
F3
+
F2
+
To Next Page
