Installing the crease roller
This part is used for the RC head model.
If the head is in the lower position and the crease roller cannot be installed, lift the head. (“Adjusting
the height of the head” See page 2.22.)

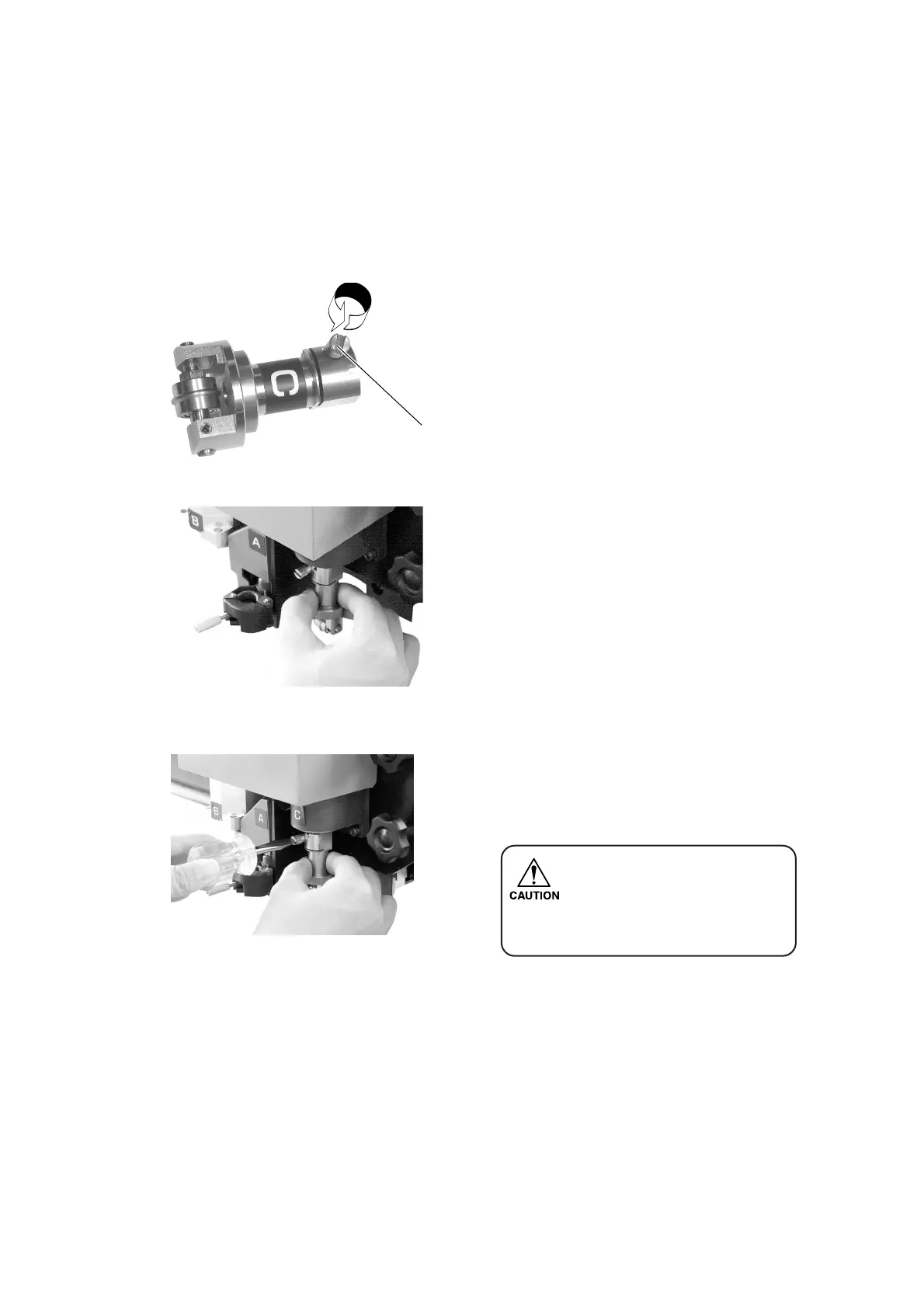

1 Loosen the stopper screw in the crease
roller.
Turn the stopper screw counterclockwise
to loosen it.
2 Insert the pin of unit C into the mark-
ing roller while fitting the pin in the
groove on the roller.
3 Tighten the stopper screw with the
screwdriver supplied with the device
as an accessory.
• Securely fix the cutter holder.
If the stopper screw is not se-
curely tightened, normal prod-
uct quality cannot be achieved.
Stopper screw
To Next Page
