Swievel cutter (optional)
Follow the procedure described below when projecting the blade tip of the swievel cutter that is
optionally available.
• Special blades for the optional swievel cutters are prepared in accordance with works.
Please contact your local dealer or MIMAKI office for details.

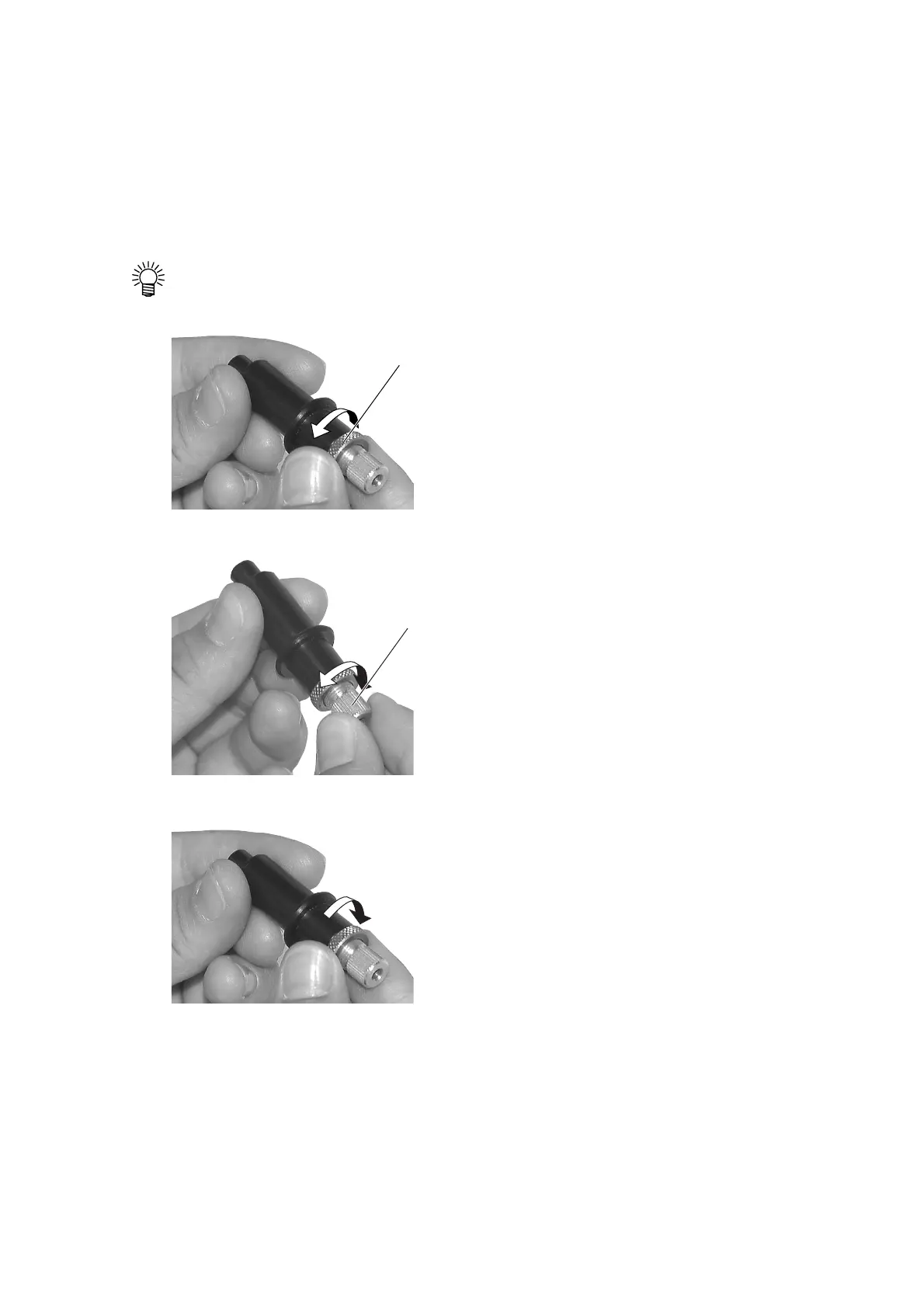

1 Loosen the locknut.
Loosen the locknut counterclockwise to
loosen it.
2 Turning the adjusting knob, adjust the
projecting amount of the blade tip.
The blade tip goes inside the holder when
the adjustment knob is turned clockwise.
Projecting amount of the blade tip to be
used as a guide:
Thickness of work + Thickness of
base sheet/2
3 Taking care not to allow the adjusting
knob to turn, tighten the locknut.
Turn the locknut clockwise to tighten it.
Locknut
Adjusting knob
To Next Page
