V Series Operating Instructions 9 - 3
ECG – Arrhythmia ECG Dialog
Display Setup
To see the ECG values, QT/QTc values, and Arrhythmia must be configured to display on the Main
Screen. Refer to "Display Options Dialog" on page 3-2 for additional information.
9.2 ECG Dialog
The ECG dialog (as shown in 9-2) contains an Arrhythmia tab, Pacer tab, ECG Setup tab, Arrhy
Setup tab, and Advanced Arrhy Setup tab. A description of each tab follows.
9.2.1 Navigating to the ECG Dialog
• Select the Arrhy digital or ECG waveform tile.
OR
1. Select the Setup tab from the Navigation Area.
2. Select the Parameters button.
3. Select the ECG button to display the ECG dialog (as shown in FIGURE 9-2).

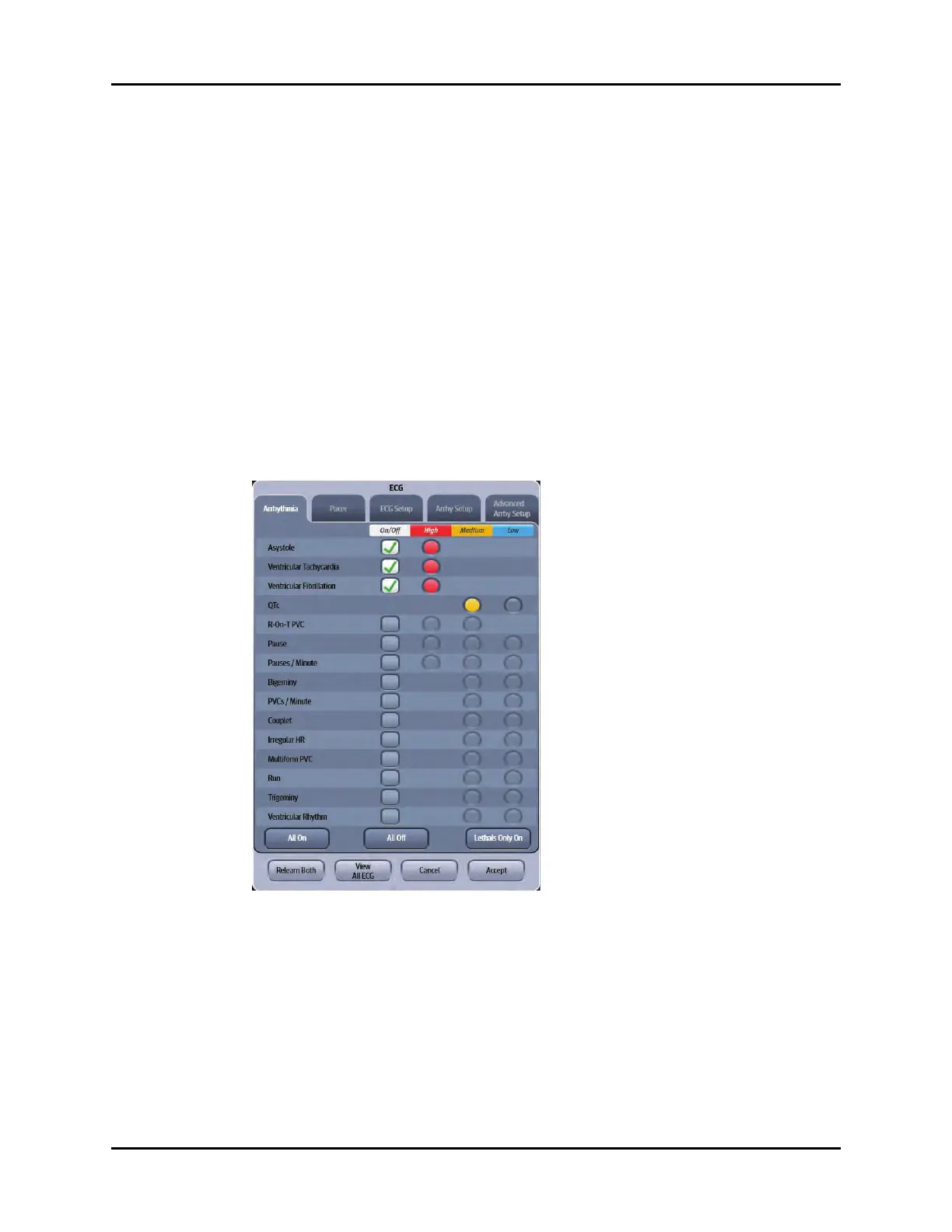

FIGURE 9-2 Example ECG Dialog (Arrhythmia Tab)
9.2.2 Configuring the Arrhythmia Tab
Refer to "Arrhythmia Alarms" on page 8-17 for additional information.
