V Series Operating Instructions 3 - 15
Display Setup Display Options Dialog
7. Select the Overlap button.
The two waveform channels display in one grid cell instead of two cells.
8. Optional - If adding a second set of overlapping waveforms, repeat step 5-7.
9. Select the Cancel or Accept button.
•The Cancel button closes the dialog without saving the settings.
•The Accept button saves the settings and closes the dialog.
3.2.12 Changing IBP Waveform Overlap Settings
Change the configuration for either of the two overlapping IBP waveforms from the Main Screen.
1. Select the overlapping waveforms from the Main Screen to open the Overlapping Waveform
dialog (as shown in FIGURE 3-5).

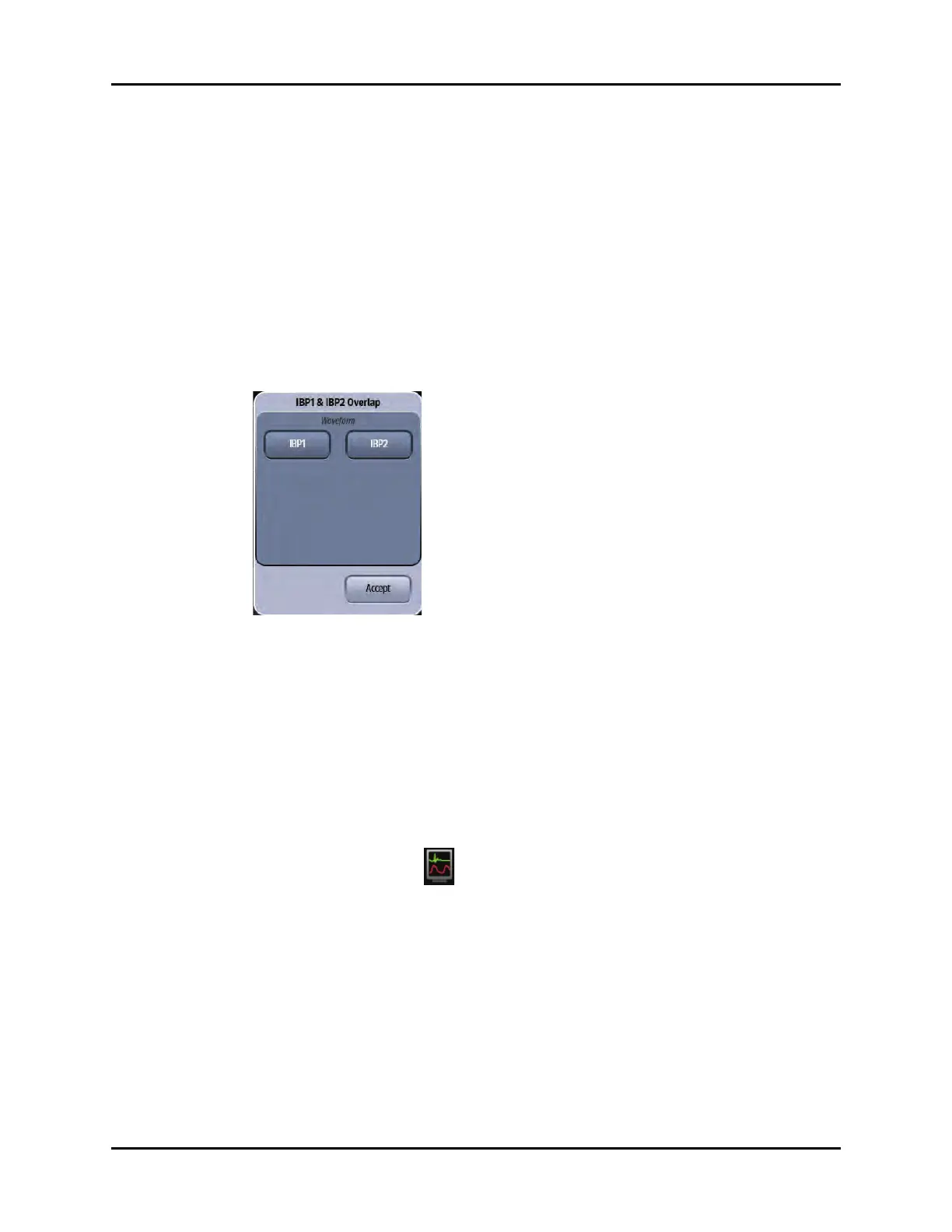

FIGURE 3-5 Example Overlapping Waveform Dialog
2. Select one of the IBP channel buttons.
The respective IBP Waveform tab opens.
3. Make the needed changes in the IBP dialog.
NOTE: Refer to "Configuring the IBP Waveform" on page 11-5 for additional
information.
4. Select the Accept button.
3.2.13 Undoing an IBP Waveform Overlap
• Select the Display Options icon located in the upper right corner of the Header Bar.
OR
1. Select the Setup tab from the Navigation Area.
2. Select the Display button, then select the Display Setup button.
3. Select the preset from the Display Presets list which contains the overlapping waveforms, then
select the Edit button.
4. Select the overlapping waveforms tile.
5. Select the Undo Overlap button.
6. Select the Cancel or Accept button.
•The Cancel button closes the dialog without saving the settings.
•The Accept button saves the settings and closes the dialog.
