V Series Operating Instructions 20 - 25
Reports Laser Printer Reports
20.5.7 Event Detail Report
The Event Detail Report (as shown in FIGURE 20-15 and FIGURE 20-16) shows all of a patient’s
historical digital data and 20 seconds of waveform data for a selected event. A marker (shown as a
triangle ) displays above the waveform grid indicating the date and time the data was recorded
This report includes a header, digital data, waveform data, and a footer.
NOTE: This report may also be printed from the thermal printer. Refer to
"Configuring the Print Destination" on page 20-5 for additional
information.

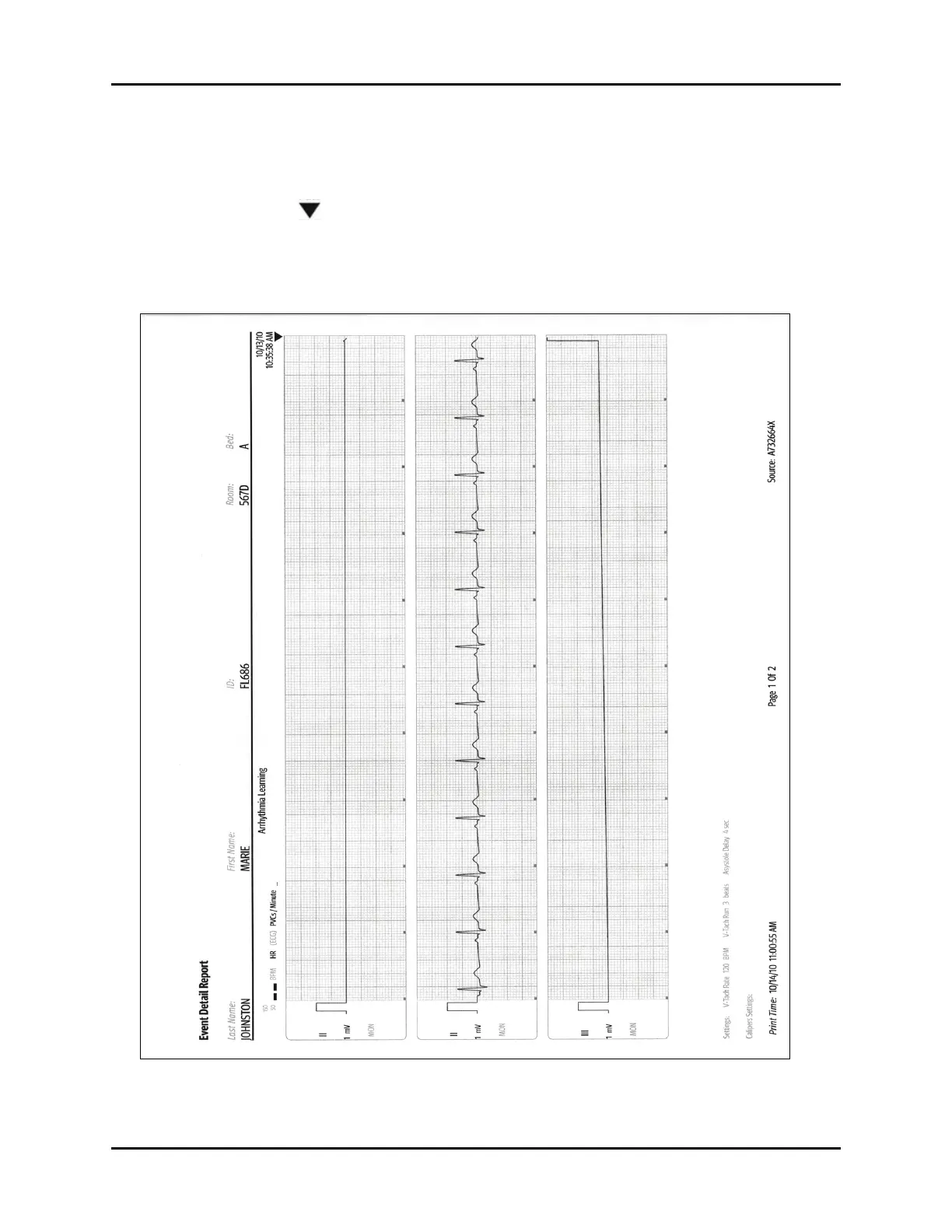

FIGURE 20-15 Example Event Detail Report (Page 1) (Laser Printer Output)
To Next Page
