V Series Operating Instructions 13 - 3
Temperature (Temp) Temperature Dialog
13.2 Temperature Dialog
The Tempe rat ure dialog (as shown in FIGURE 13-2) contains an Alarms tab and a Setup tab. A
description of each tab follows.
13.2.1 Navigating to the Temperature Dialog
• Select the Temp digital tile.
OR
1. Select the Setup tab from the Navigation Area.
2. Select the Parameters button.
3. Select the Tempe rature button.
The Temperature dialog displays (as shown in FIGURE 13-2).

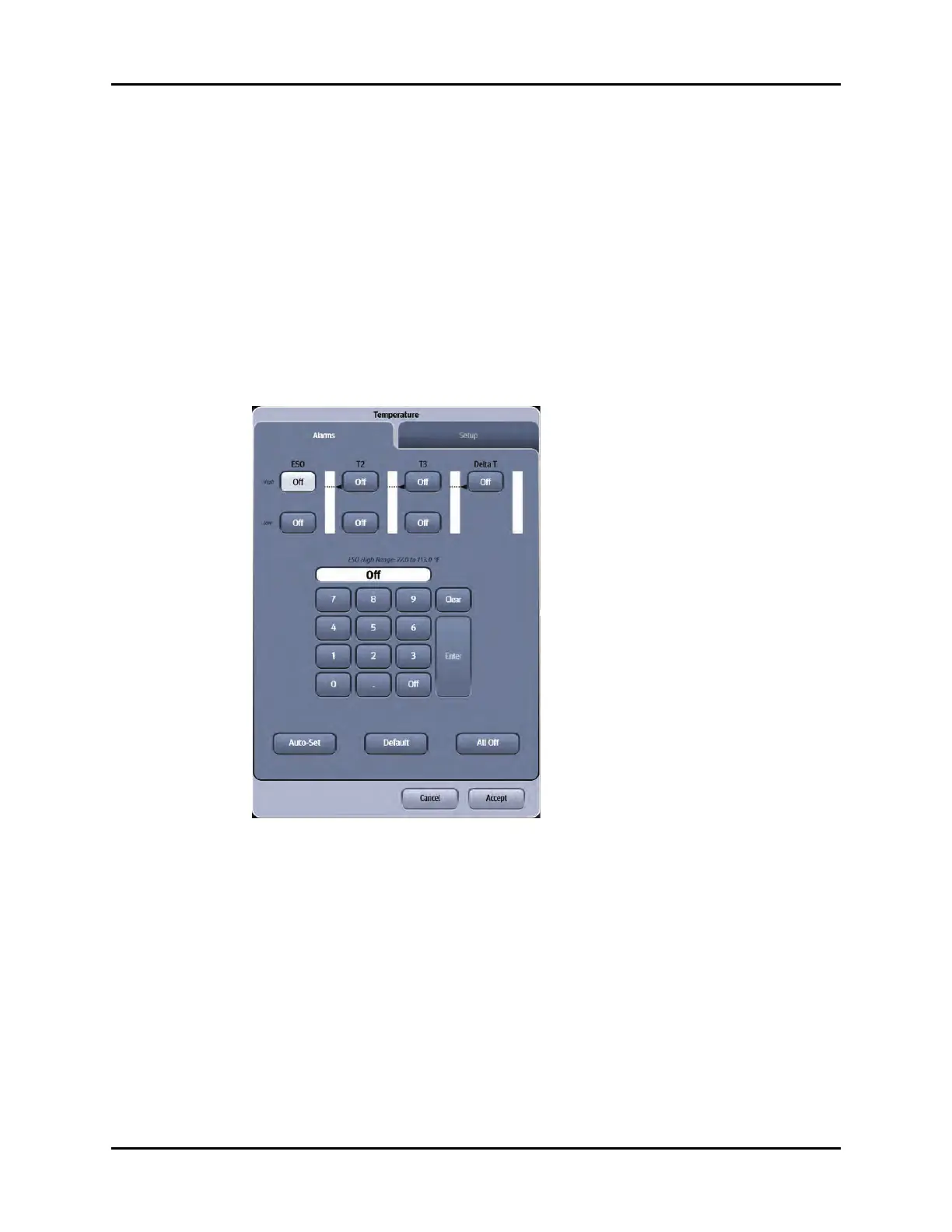

FIGURE 13-2 Example Temperature Dialog (Alarms Tab)
13.2.2 Configuring Temperature Alarm Limits
Refer to "Configuring Alarm Limits" on page 8-2 for additional information.
