V Series Operating Instructions 17 - 5
CO2 Monitoring (Optional) CO2 Dialog
17.2.4 Configuring the CO
2
Waveform
1. Select the CO
2
digital or waveform tile.
2. Select the Waveform tab (as shown in FIGURE 17-4).

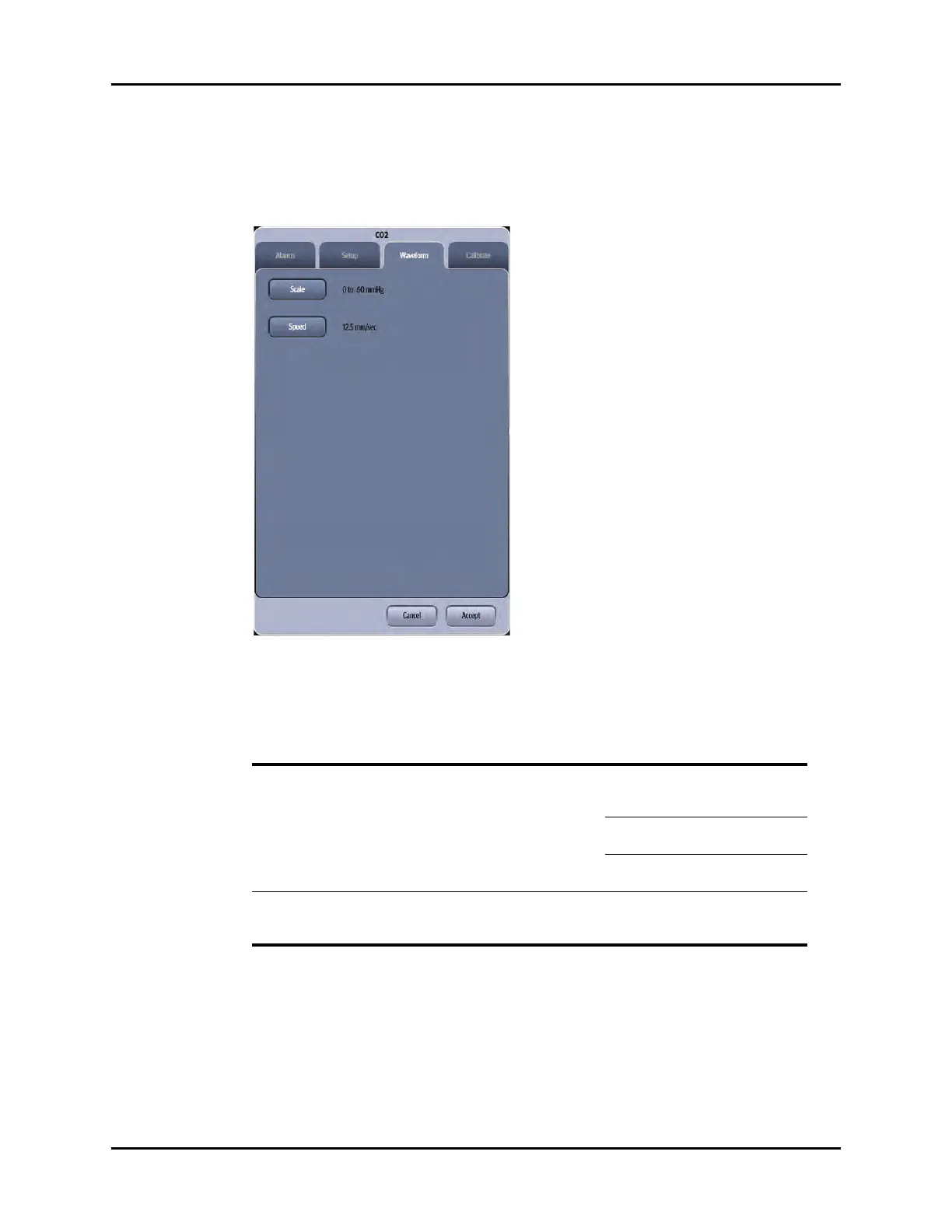

FIGURE 17-4 Example CO
2
Dialog (Waveform Tab)
3. Select the buttons described in TABLE 17-2 to configure the tab.
4. Select the Cancel or Accept button.
•The Cancel button closes the dialog without saving the settings.
•The Accept button saves the settings and closes the dialog.
TABLE 17-2
FUNCTION DESCRIPTION SETTINGS*
Scale Configures the CO
2
waveform size or
height.
0 to 40 mmHg, 0 to 60 mmHg
0 to100 mmHg when CO
2
units
configured for mmHg
0% to 5%, 0% to 7.5%, 0% to 10%
when CO
2
units configured for%
0 to 5 kPa, 0 to 7.5 kPa, 0 to 10 kPa
when CO
2
units configured for kPa
Speed Configures the waveform sweep speed. 3.125 mm/sec., 6.25 mm/sec.,
12.5 mm/sec., 25 mm/sec
* The factory default configuration settings are in bold.
