V Series Operating Instructions 3 - 9
Display Setup Display Options Dialog
3.2.3 Editing a Display Preset
Edit an existing preset or configure an Empty preset:
• Select the Display Options icon located in the upper right corner of the Header Bar.
OR
1. Select the Setup tab from the Navigation Area.
2. Select the Display button, then select the Display Setup button.
The Display Setup dialog displays (as shown in FIGURE 3-2).

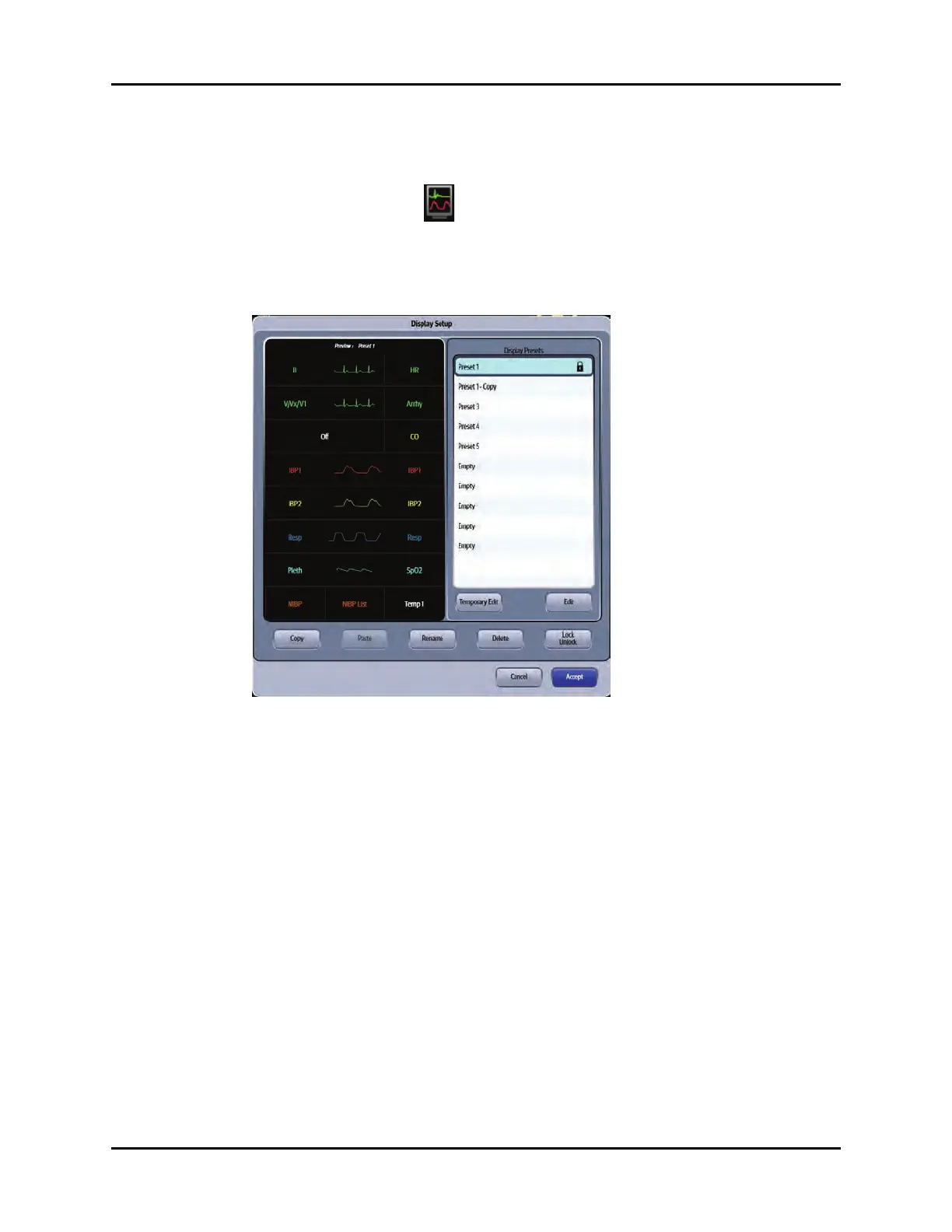

FIGURE 3-2 Example Display Setup Dialog (with Locked Presets)
3. Select a display preset from the list.
4. Select the Edit button. Enter a preset password if prompted. The “Select an area from the grid
on the left then choose a parameter from the corresponding list that appears in this area.”
message displays.
5. Select an area on the grid to see a list of available parameters.
A list of digital or waveform parameters displays to the right of the grid (as shown in FIGURE 3-3).
NOTE: The list of available parameters is dependent on whether a waveform
tile or a digital tile was selected in the grid.
To Next Page
