V 12 Mechanical Functions
4 - 8 V Series Operating Instructions

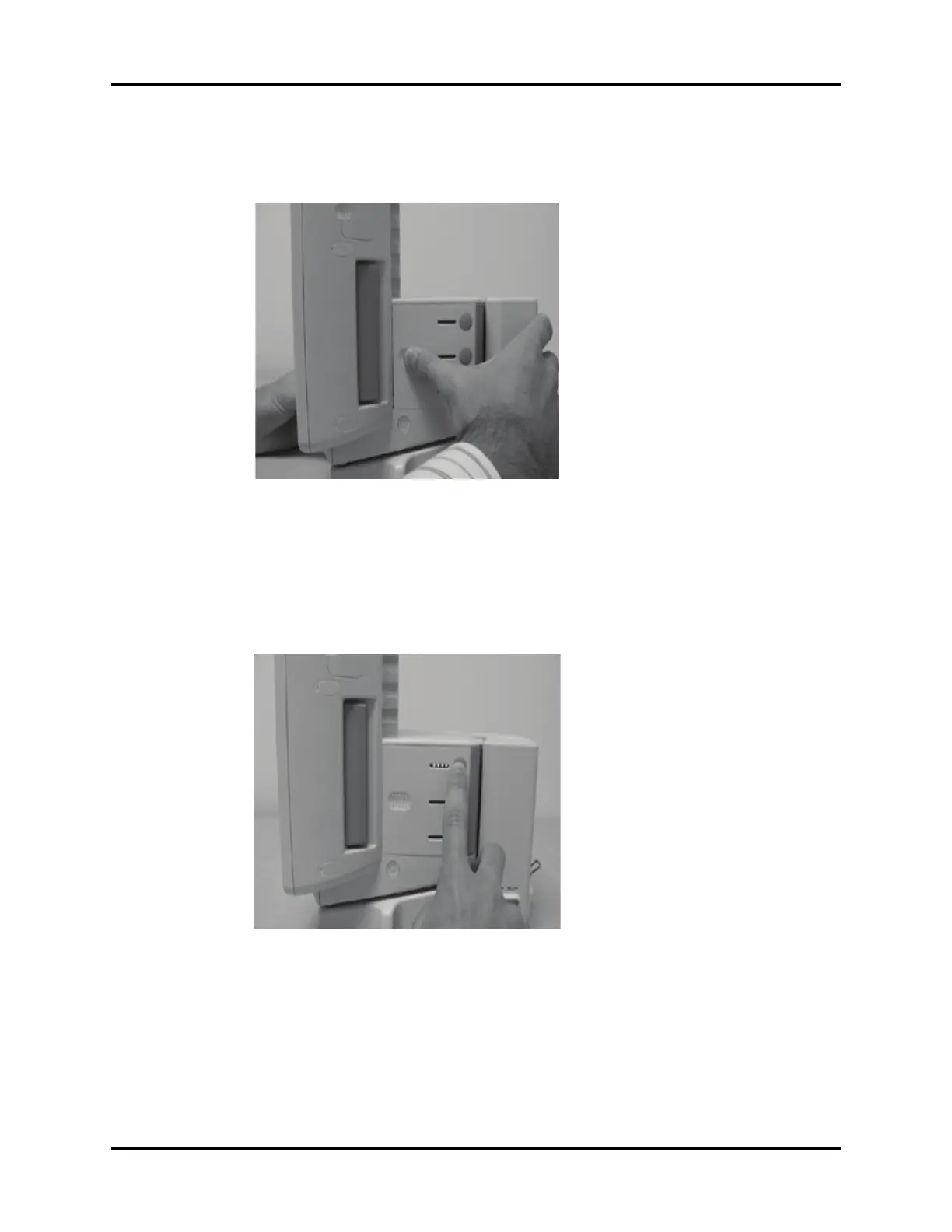

4. Swing the door toward the closed position, align the three tabs on the front edge of the door
with the three slots in the V 12 housing and, while pressing the door flush to the housing, slide
it forward, until it latches (shown in FIGURE 4-13).
FIGURE 4-13
4.2.5 Battery Charge Checking
• Press the elastomeric button (shown in FIGURE 4-14) in the battery door that corresponds to the
battery that you desire to check, until the button on the end of the battery is actuated, with a
corresponding click. The charge status LED's on the end of the battery lights according to the
amount of charge in the battery, and is visible through the narrow window in the door.
FIGURE 4-14
