Mindray V21 User Manual

BIS Tile Layout Bispectral Index (BIS) (Optional)
19 - 12 V Series Operating Instructions
19.4 BIS Tile Layout
The BIS parameter is shown in a digital tile and waveform tile format.
19.4.1 BIS Digital Tile Layout
The BIS digital tile displays:
1. Tile name
2. Message area
3. SQI bar graph
4. EMG bar graph
5. ASYM value
6. SEF value
7. TP value
8. BC value
9. sEMG value
10. SR value
11. sBIS value
12. BIS value
13. Alarm limits
14. BIS value (hollow font)

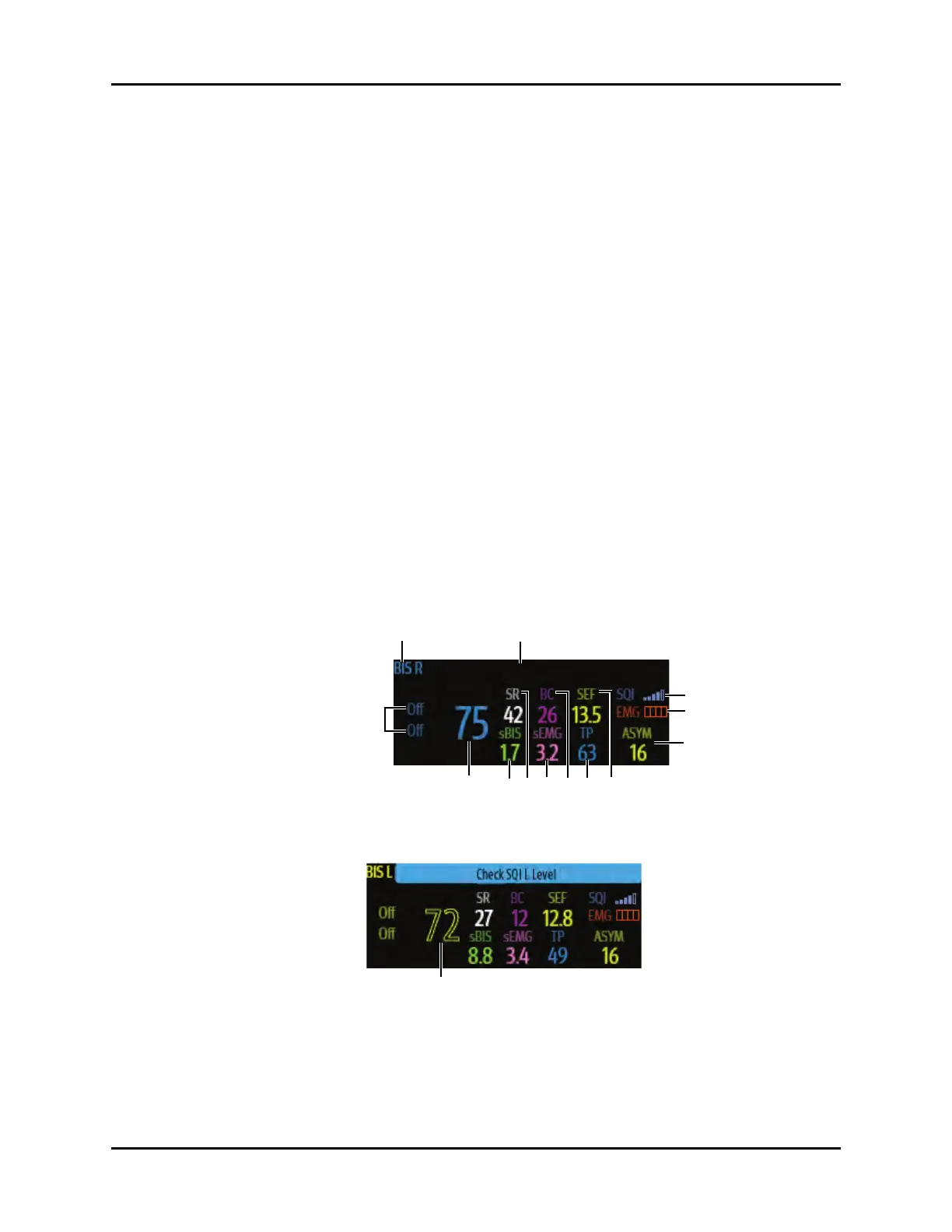

FIGURE 19-7 Example BIS Right Digital Tile for a Bilateral Sensor
S
FIGURE 19-8 Example BIS Left Digital Tile for a Bilateral Sensor (15% ≤ SQI ≤ 50%)
1
13
2
3
4
12
5
6
7
8
11
9
10
14
