V Series Operating Instructions 4 - 3
Mechanical Functions V 12

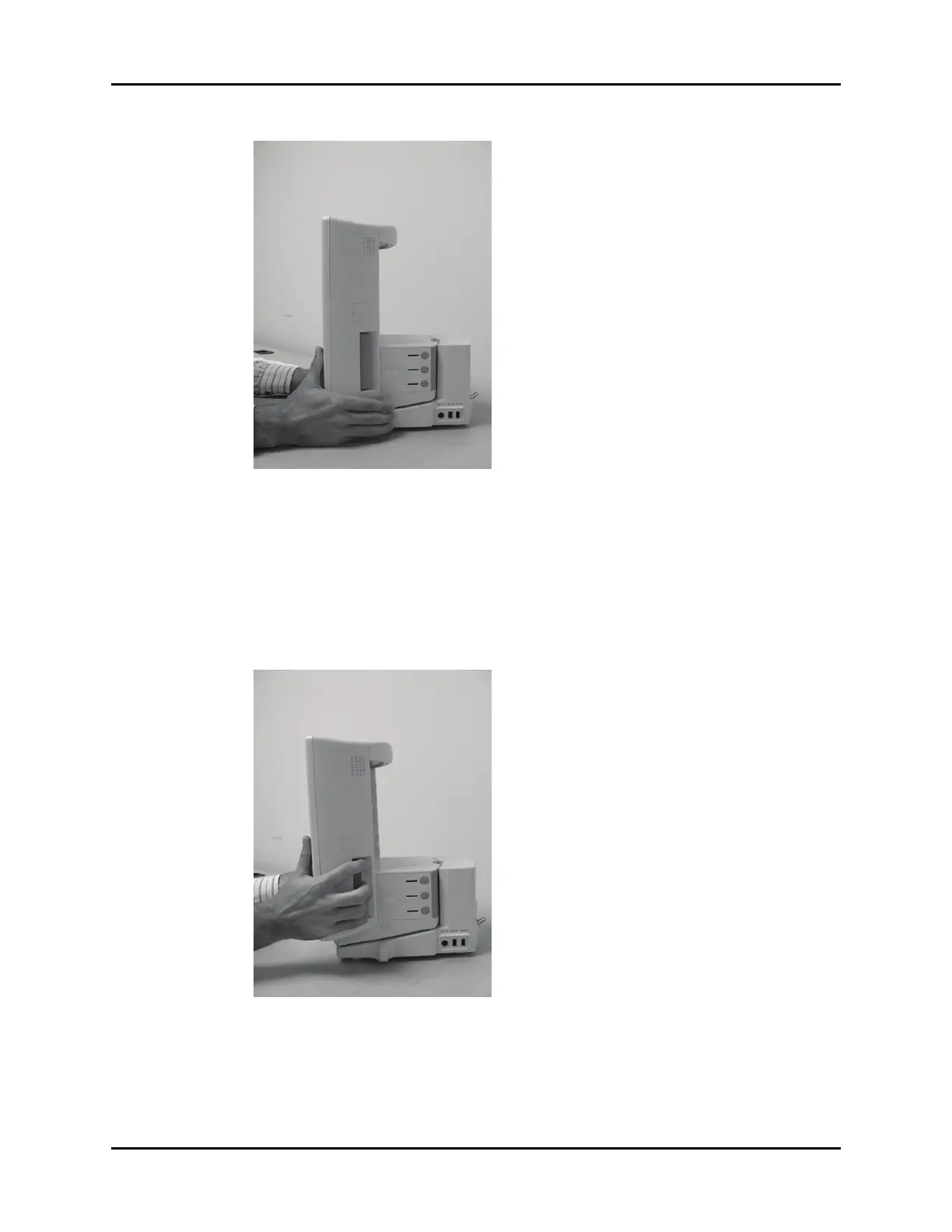

FIGURE 4-2
4.2.2 V 12 Undocking
1. Grab around both sides of the V 12, at the two side grip locations, with your palms firmly
pressing against front edges of the V 12, and your fingers staged to grip the side actuators.
2. Close your grip against both actuators (shown in FIGURE 4-3). The latching bar on the V Dock
moves downward, then the V 12 pushes forward on the V Dock.
3. Lift the V 12 up and away from the V Dock.
FIGURE 4-3
To Next Page
