9.8.2 Displaying the name plate
You can display the nameplate data for the transformer, on-load tap-
changer, and motor-drive unit.

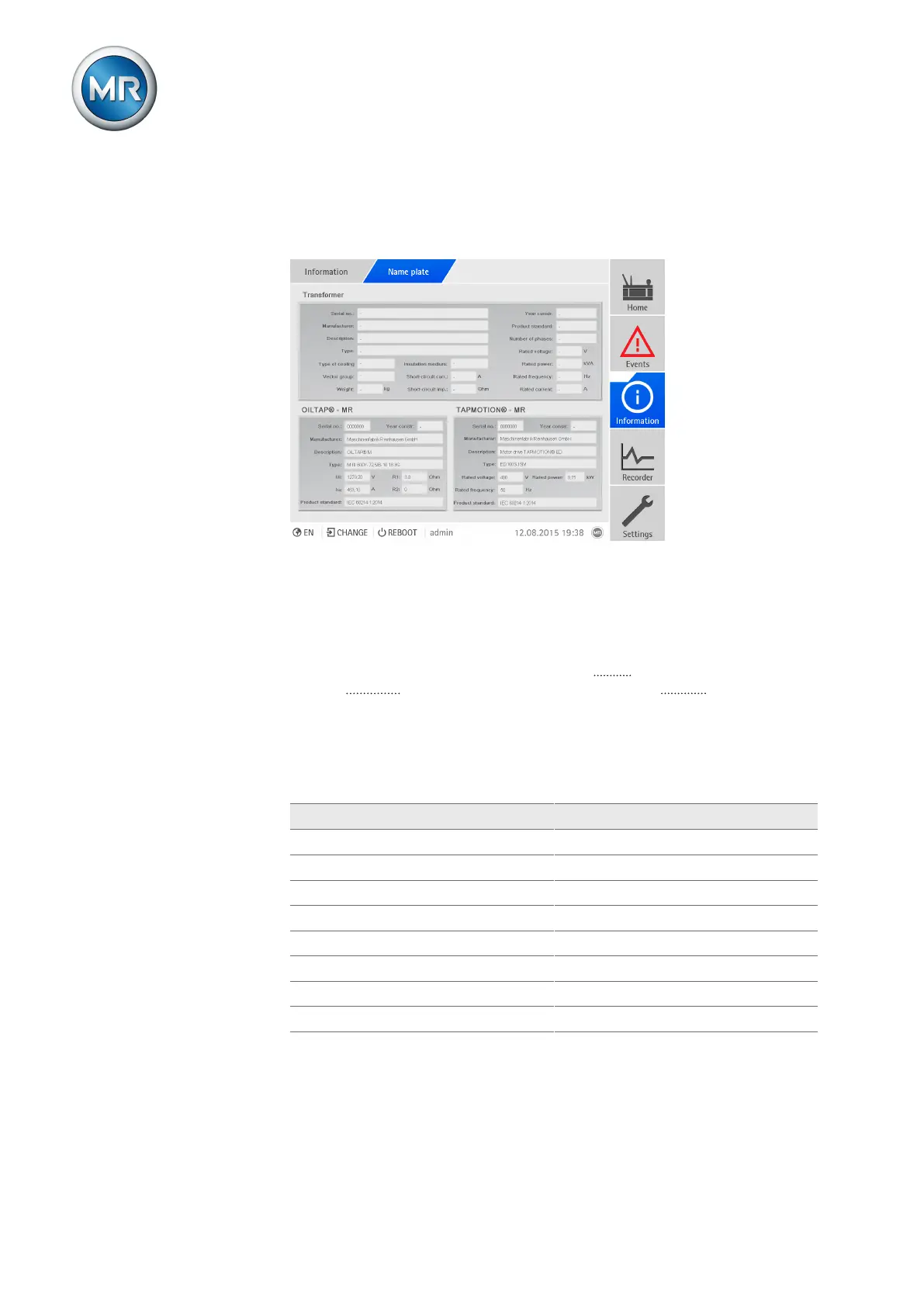

Figure82: Nameplate
► Go to Information > System > Nameplate.
9.9 Linking signals and events
The device enables you to link digital inputs (GPI) and control system com-
mands (SCADA) with device functions, digital outputs (GPO), and control
system messages.
The digital inputs available are each permanently linked to a Generic digital
input event message and the control system commands available are each
permanently linked to aGeneric SCADA command event message for this
purpose.
Input/command Event message
Digital input 1
1)
Generic digital input 1
Digital input 2
1)
Generic digital input 2
... ...
Digital input 42
1)
Generic digital input 42
Generic SCADA command 1 Generic SCADA command 1
Generic SCADA command 2 Generic SCADA command 2
... ...
Generic SCADA command 10 Generic SCADA command 10
Table36: Linking of digital inputs and control system commands with event messages
1)
The number of available digital inputs depends on the order-specific device
configuration.
