9.24.5 Displaying winding temperatures (optional)

If you record the winding temperatures with a sensor, you can display the

temporal progression of the measured winding temperatures over the last 10

days. To do so, proceed as follows:

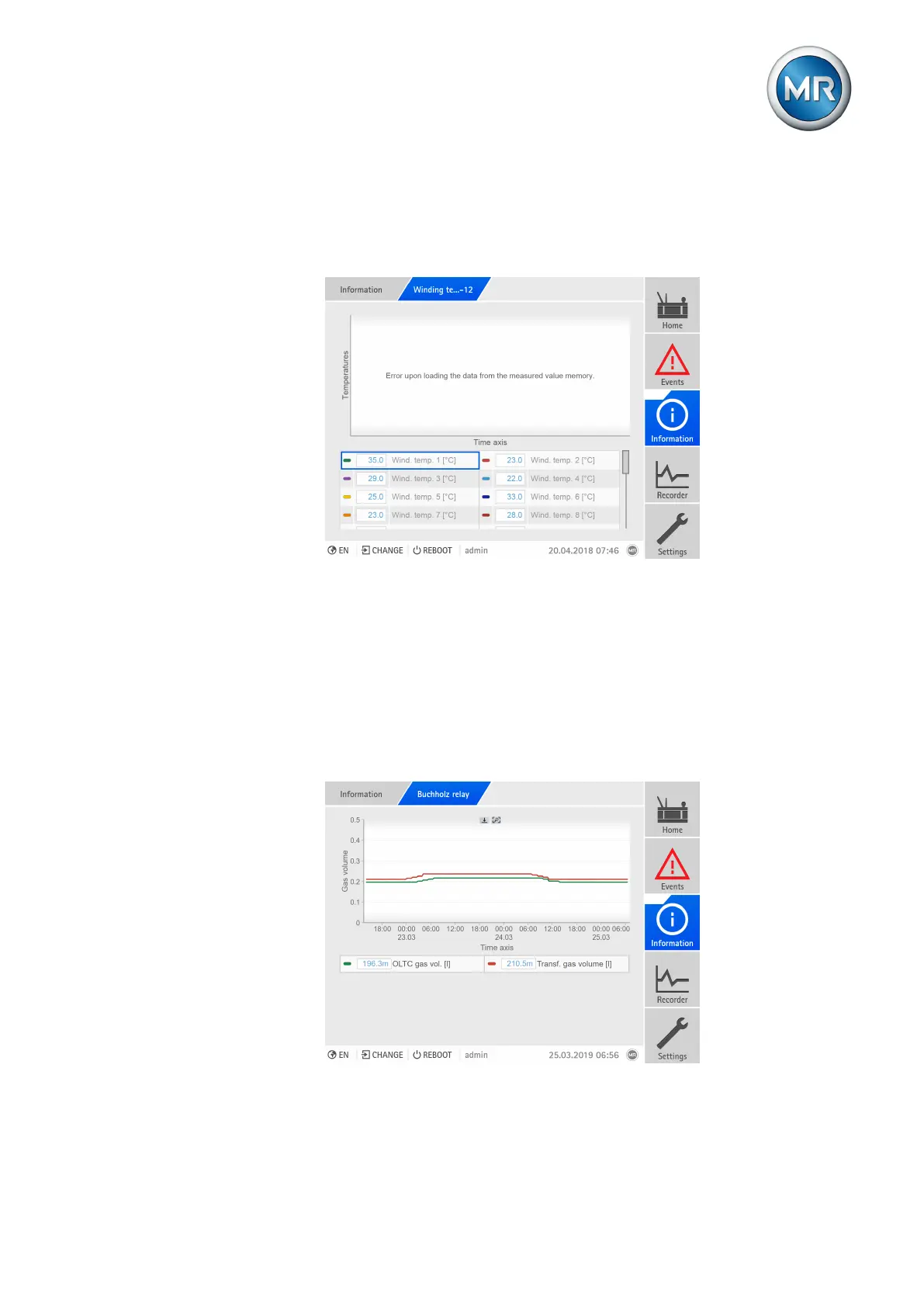

Figure154: Winding temperature

► Go to Information > Active part > Winding temperature 1-12/13-24.

As an option, you can also display the measured value trend over a time pe-

riod that you define (max. the last 10 days). You will find more information on

this in the section "Measured value recorder" [►Section 9.24.2, Page 214].

9.24.6 Displaying the measured values of the Buchholz relay (optional)

You can display the temporal progression of the measured values of the

Buchholz relay over the last 10 days.

Figure155: Measured value trend of the Buchholz relay

► Go to Information > Protective devices > Buchholz relay.
