MR ETOS TD User Manual

9 Visualization
Maschinenfabrik Reinhausen GmbH 2020 1614453918/14 EN ETOS
®
TD
9.17.1 Setting transformer data
You can use the following parameters to set the transformer data. Also note
the Examples for standard circuits for current transformers and voltage
transformers [►Section 9.17.2, Page 163].
Settings
Parameters
Transfor...ata
Name Value
Primary transformer voltage 100kV
Secondary transformer voltage 100V
Primary transformer current 100A
Secondary transformer current 1 A
Phase angle correction 0°
Voltage-transformer circuit 1 Ph phase voltage
Current-transformer circuit 1 Ph phase current
Home
Events
Information
Recorder
Settings
EN
CHANGE
REBOOT
admin 03.02.2020 08:09

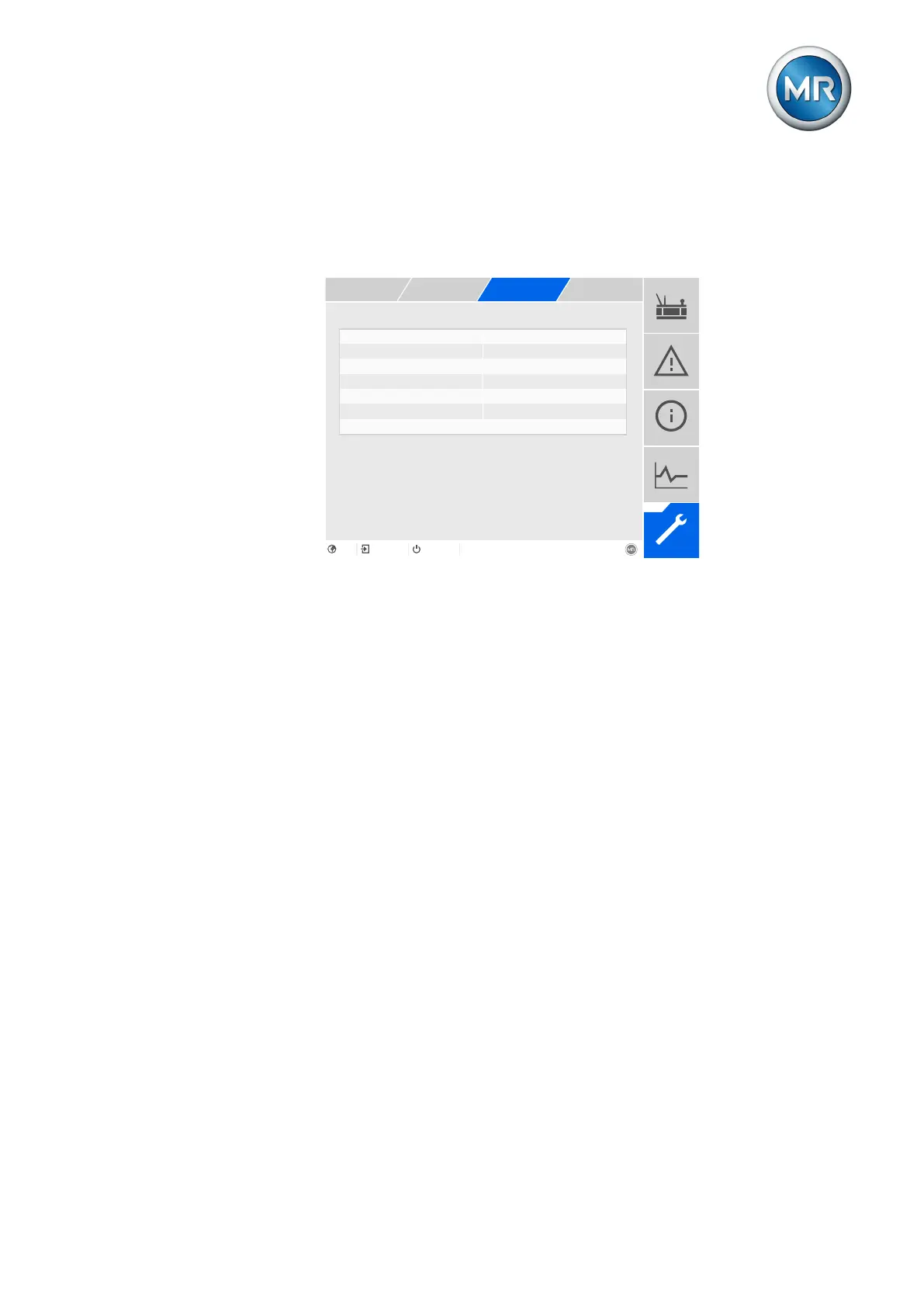

Figure115: Transformer data
1. Go to Settings > Parameters > Grid > Transformer data.
2. Select the desired parameter.
3. Set the desired parameter.
4. Press the Accept button to save the modified parameter.
Primary transformer voltage
You can use this parameter to set the primary voltage of the voltage trans-
former in kV.
Secondary transformer voltage
You can use this parameter to set the secondary voltage of the voltage
transformer in kV.
Primary transformer current
You can use this parameter to set the primary current of the current trans-
former.
If you use the optional function "Hot-spot calculation on 3 different windings
(W1, W2, W3)", you must set the parameter for W1, W2 and W3 respec-
tively.
