MR ETOS TD User Manual

9 Visualization
Maschinenfabrik Reinhausen GmbH 2020224 4453918/14 ENETOS
®
TD
You must enter the calculation factor for each tap position. If you enter the
value 0 for a tap position, a calculation will not be performed for this tap posi-
tion and the device will not display a value for the current on the low-voltage
side.
Settings Tap position table
Raw value
Tap position
Control system
TCR
1
1
1
3
2
2
2
4
3
3
3
5
4
4
1
6
5
5
2
7
6
6
1
8
7
7
3
9
8
8
4
10
9
9
5
11
10
10
6
12
Accept
Cancel
Home
Events
Information
Recorder
Settings
EN CHANGE REBOOTadmin 23.03.2020 08:08

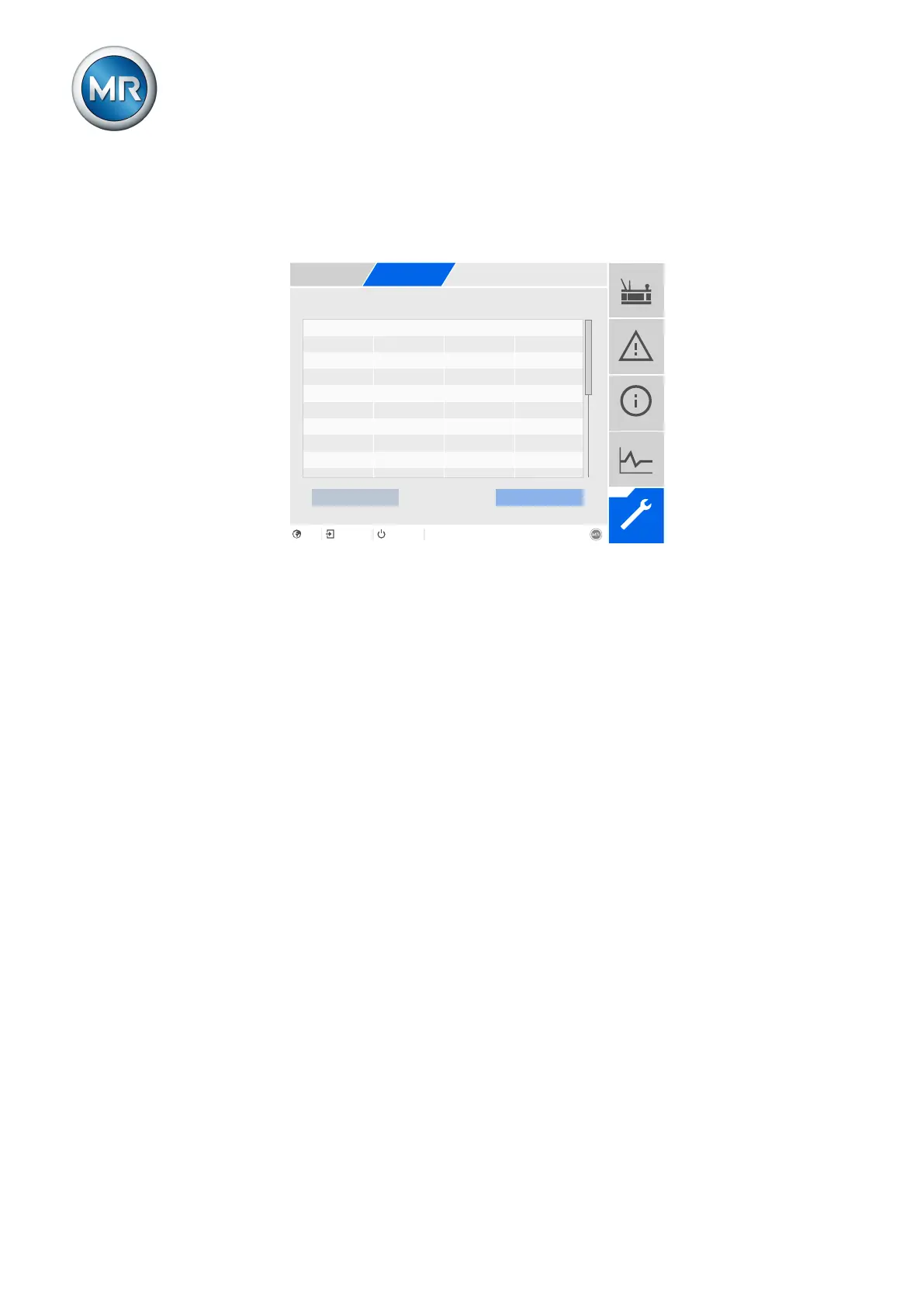

Figure159: Tap position table
1. Go to Settings > Tap position table.
2. Enter the calculation factor for each tap position.
3. Press the Accept button to save the modified parameter.
9.25.3 Displaying tap-change operation statistics (optional)
In the switching statistics view, you can display how often the on-load tap-
changer has been switched to a particular tap position and how long it has
remained in a particular tap position.
