9 Visualization

Maschinenfabrik Reinhausen GmbH 2020 754453918/14 EN ETOS

To connect via the ETH2.2 interface, proceed as follows:

1. Connect the PC and device using an Ethernet cable (RJ45 plug) via the

ETH2.2 interface.

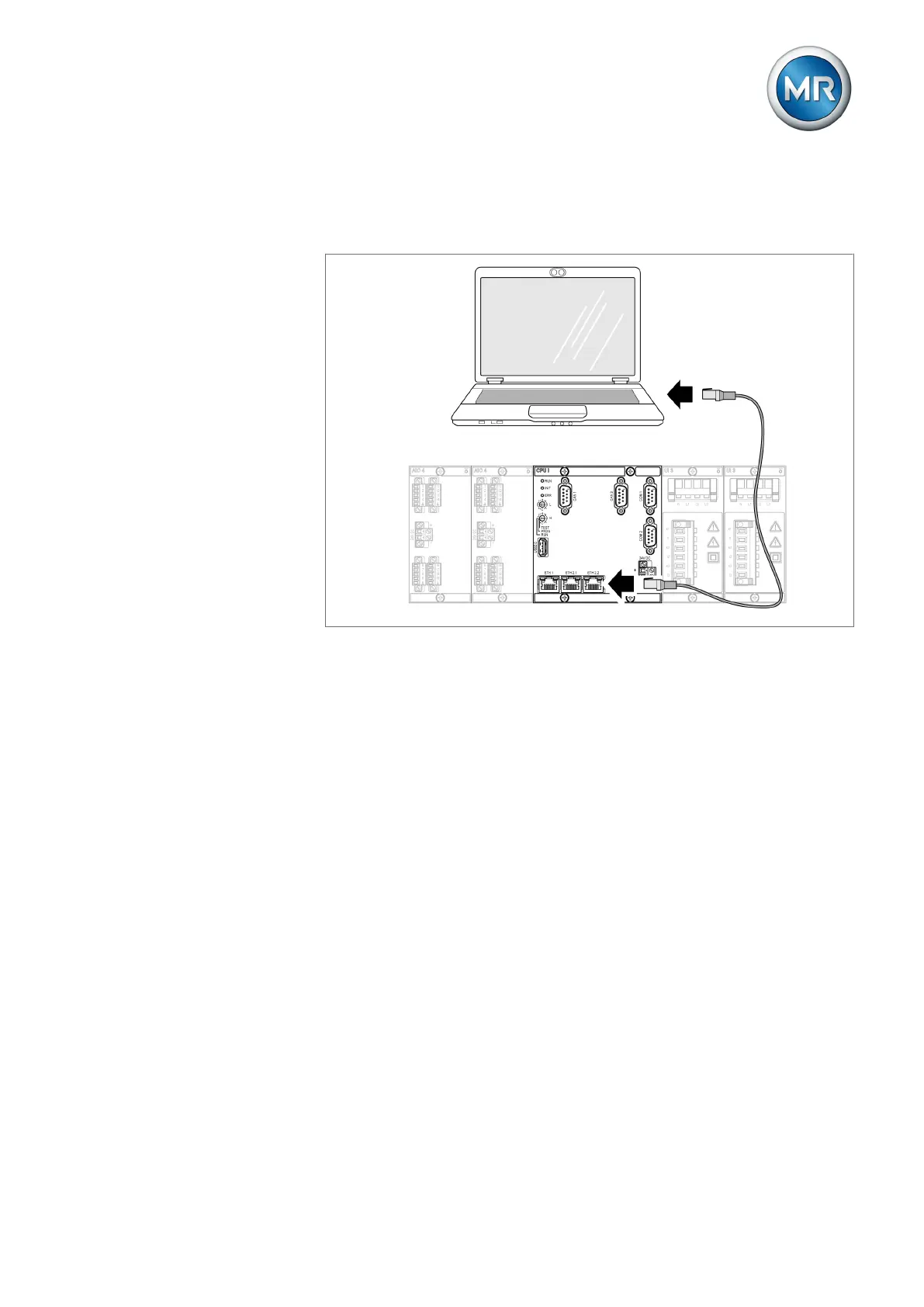

Figure56: Establishing a connection via the ETH2.2 interface on the back

2. Assign a unique IP address to the PC in the same subnet as the device

(e.g. 192.0.1.100).

3. Enter the visualization's IP address (e.g. http://192.0.1.230, if SSL

encryption is active enter https://192.0.1.230) in the browser on the

PC.

ð The visualization is accessed.

9.2 General

You can set general parameters in this menu item.
