9 Visualization
Maschinenfabrik Reinhausen GmbH 2020 2574453918/14 EN ETOS
®
TD
2. Select the desired type.
9.29 Configuring analog inputs and outputs (optional)
You can flexibly configure the device's analog inputs and outputs and assign
device functions.
The device supports analog sensors with linear characteristic curves and
only outputs analog signals with linear characteristic curves.
Correction factor and offset Setting a correction offsets systematic errors of the analog signals. The cor-
rection is determined by multiplying a factor by the sum of the offset. The
minimum and maximum values of the function values apply as a limit value
for the correction. There is no limit for the correction offset.
Max.
Min.
Measured variable
Max.Min. Analog signal
Correction factor
Correction offset

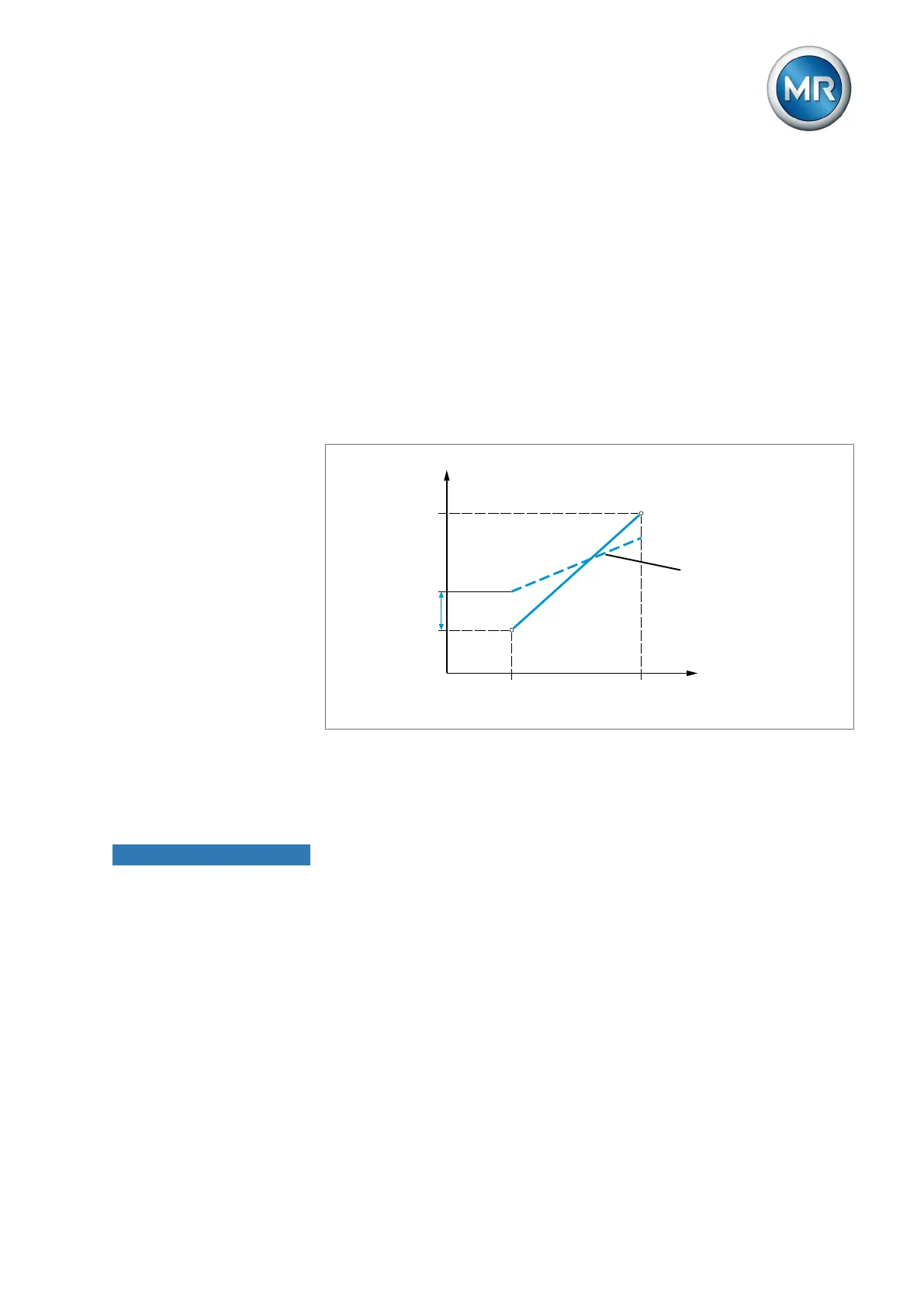

Figure192: Analog signal with linear characteristic curve, correction factor <1 and correction off-
set
If you have connected sensors over the MR sensor bus, you must select the
"Modbus" signal type for the desired functions. Observe the additional infor-
mation provided in the MR sensor bus [►Section 9.28, Page 246] section.
NOTICE
Damage to the device and sensors!
Incorrectly connected and configured analog inputs/outputs may result in
damage to the device and sensor.
► Follow information about connecting analog sensors [►Section 6.5, Page
62].
► Configure analog inputs and outputs according to the connected sensors.
The following information is displayed in tabular form for configuring the ana-
log inputs and outputs. Grayed-out elements cannot be changed.
