15 Technical data
Maschinenfabrik Reinhausen GmbH 2020 3274453918/14 EN ETOS
®
TD
15 Technical data
15.1 Gear motor
Gear motor ETOS® TD
Connection power 0.45…0.75kW
Voltage supply 3AC/N
330...480V
Frequency
1
50Hz or 60Hz
Running time of output shaft per tap-change opera-
tion
approx. 6.5s
Maximum number of operating positions 35
Permitted ambient temperature during operation -25...+55°C
Protection class (DINEN60529) IP66
Weight (including adapter flange) approx. 23.5kg
Table123: Gear motor technical data
1
) According to your purchase order, you receive the gear motor in a version
for 50Hz power systems or 60Hz power systems. Observe the information
on the nameplate.

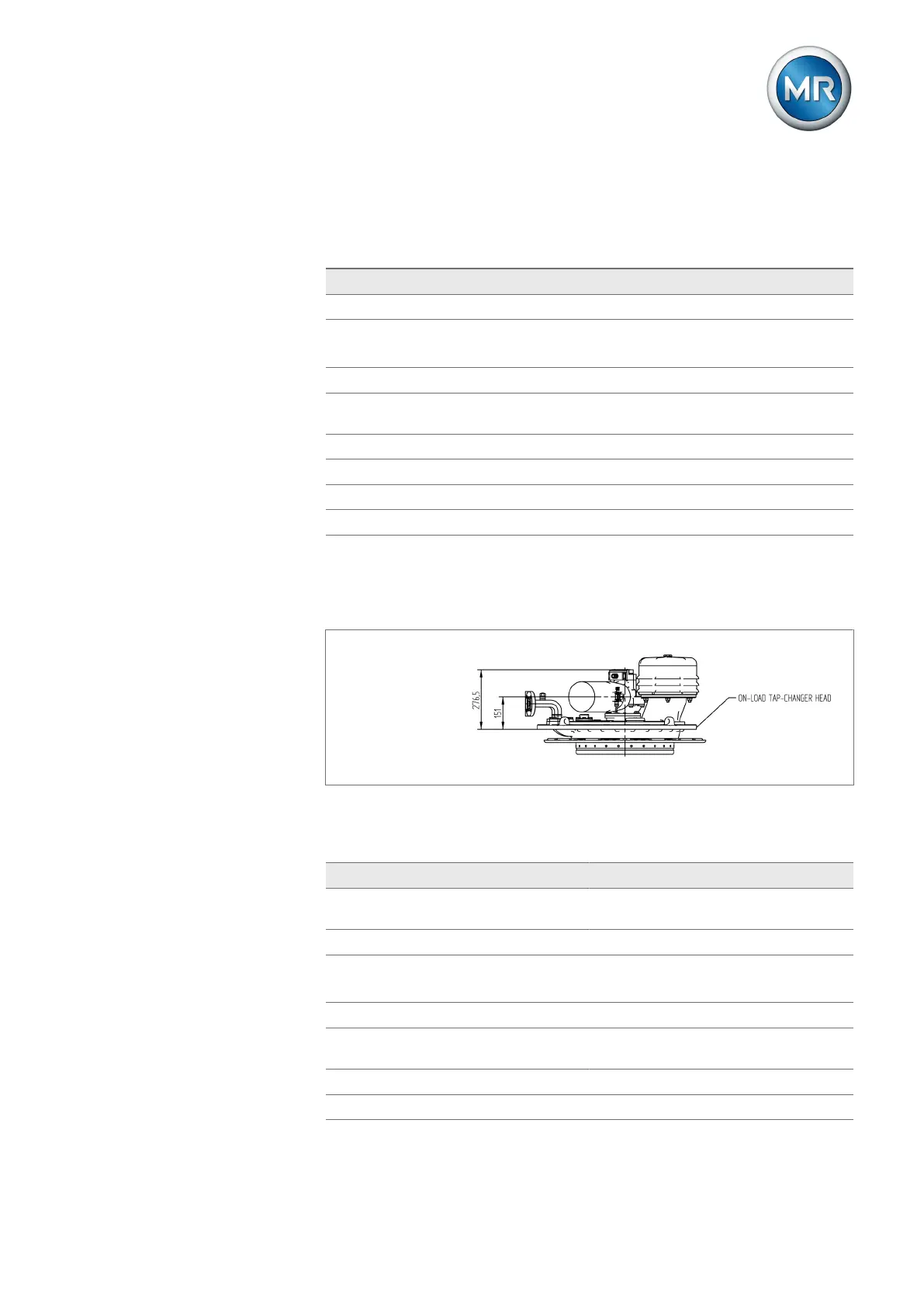

Figure230: Gear motor dimensions
15.2 Control cabinet
Control cabinet ETOS® TD S ETOS® TD L ETOS® TD XL
Dimensions (width x
height x depth)
616 x 850 x
423mm
616 x 1350 x
423mm
846 x 1800 x
440mm
Power consumption
1
Max. 13.3A max. 14A
Voltage supply
1
3AC/N
380 to 440V
Frequency
1
50Hz or 60Hz
Control and heating
circuit voltage supply
220...240VAC
Heating power 130W (controlled) 260W (controlled)
Plug socket 220...240V AC, max. 10A
