You can change the measured value display to the generator sign conven-
tion by activating the Retrofit TAPCON® 2xx [►Section 9.21.3, Page 192]
parameter.
The following measured values are displayed:
▪ Voltage
▪ Current
▪ Power factor (cos ϕ)
▪ Frequency
▪ Reactive power
▪ Active power
▪ Apparent power

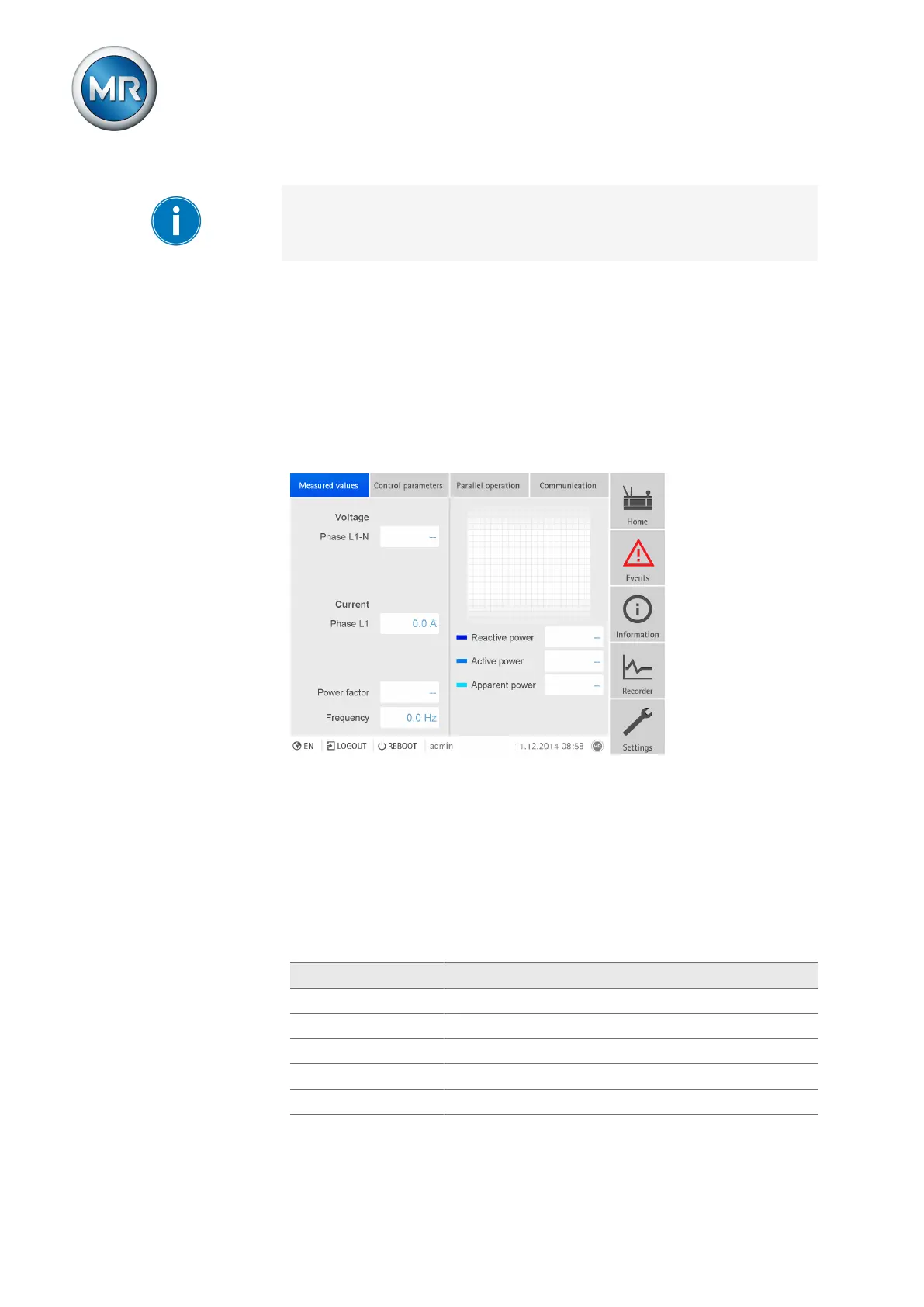

Figure147: Measured values
► Go to Information > Grid > Measured values.
9.24.2 Displaying measured value recorder (optional)
You can use the optional measured value recorder function to display the
progress of measured values and signals over time.
Depending on device configuration, you can select the following measured
values and signals for the display:
Signal Description
P_m L1 Active power L1 (average value)
P_m L2 Active power L2 (average value)
P_m L3 Active power L2 (average value)
P_m Active power in total (average value)
S_m L1 Apparent power L1 (average value)
