181
Setting the Conditions for Communications with the Host by Using the Memory Switches
Section 6-7
S To quit the unit number setting screen without confirming the unit number set-
tings, press the “Abort” touch switch. The NT31/NT31C will return to the
memory switch setting screen (4/4) with the previous settings still in effect.
Reference: “Unit numbers” are numbers assigned to each PT when multiple PTs are con-
nected to one host, so that the host can identify the individual PTs. The units num-
bers that can be set differ according to the host model, as follows.
- C200HE(-ZE):
Unit numbers 0 to 3 (maximum of 4 PTs per host port)
- C200HG(-ZE), C200HX(-ZE):
Unit numbers 0 to 7 (maximum of 8 PTs per host port)
When making the settings, make sure there is no duplication of unit numbers
among PTs.
On completion of unit number setting, the NT31/NT31C returns to the memory
switch setting screen (4/4).
To set other memory switches, select the relevant screen using the [ ] (next
screen) or [ ] (previous screen) touch switch, then make the setting.
S To confirm the settings and quit the memory switch setting screen, press the
“Quit” touch switch. The settings made last will be set and the NT31/NT31C will
return to the “MAINTENANCE MODE MENU” screen.
S To quit the memory switch setting screen without confirming the settings, press
the “Abort” touch switch. The NT31/NT31C will return to the “MAINTENANCE
MODE MENU” screen with the previous settings still in effect.
6-7-5 Setting the Memory Link Method
Set the communication conditions for the host link method at serial port A or serial
port B by following the operation from the System Menu shown below. Check the
communication settings of the host to be used.

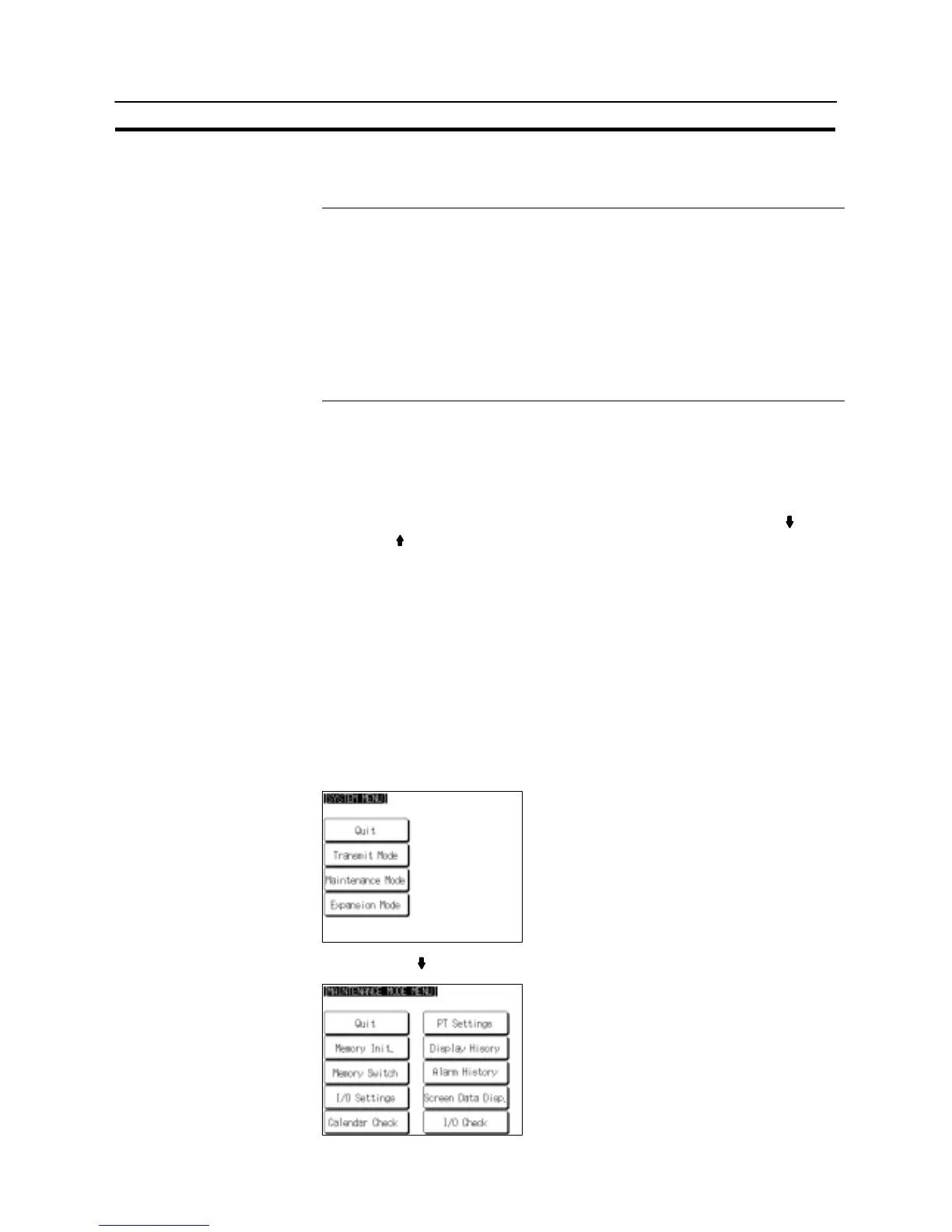

Select “Maintenance Mode”.
Select “Memory Switch”.
