301
Fixed Displays
Section 7-4
7-4 Fixed Displays
“Fixed displays” are graphics and text that are always displayed onthe screen and
do not change. This section gives details of fixed displays.
There are the following types of fixed display.
S Text Page 310
S Circle Page 301
S Arc Page 301
S Sector Page 301
S Polyline Page 301
S Polygon Page 301
S Rectangle Page 301
S Tiling Page 313
S Mark Page 315
Reference:
The Support Tool also includes image data and library data as fixed display ele-
ments, but since these are functionally different, they are dealt with separately in
this manual. For details on image and library data, refer to 7-5 “Image and Library
Data” (page 319).
7-4-1 Circles, Arcs, Sectors, Polylines, Polygons, Rectangles
(Fixed Displays)
[Function Outline]
These are graphics that are always displayed. Standard, inverse, flash, and in-
verse flash displays are possible depending on the graphics.
Since fixed display graphics are always displayed in the order in which they were
created at the Support Tool (graphics created early are overlaid by those created
later), the order must be considered when creating them. However, the order of
display within a fixed display graphic can be changed using the Support Tool.

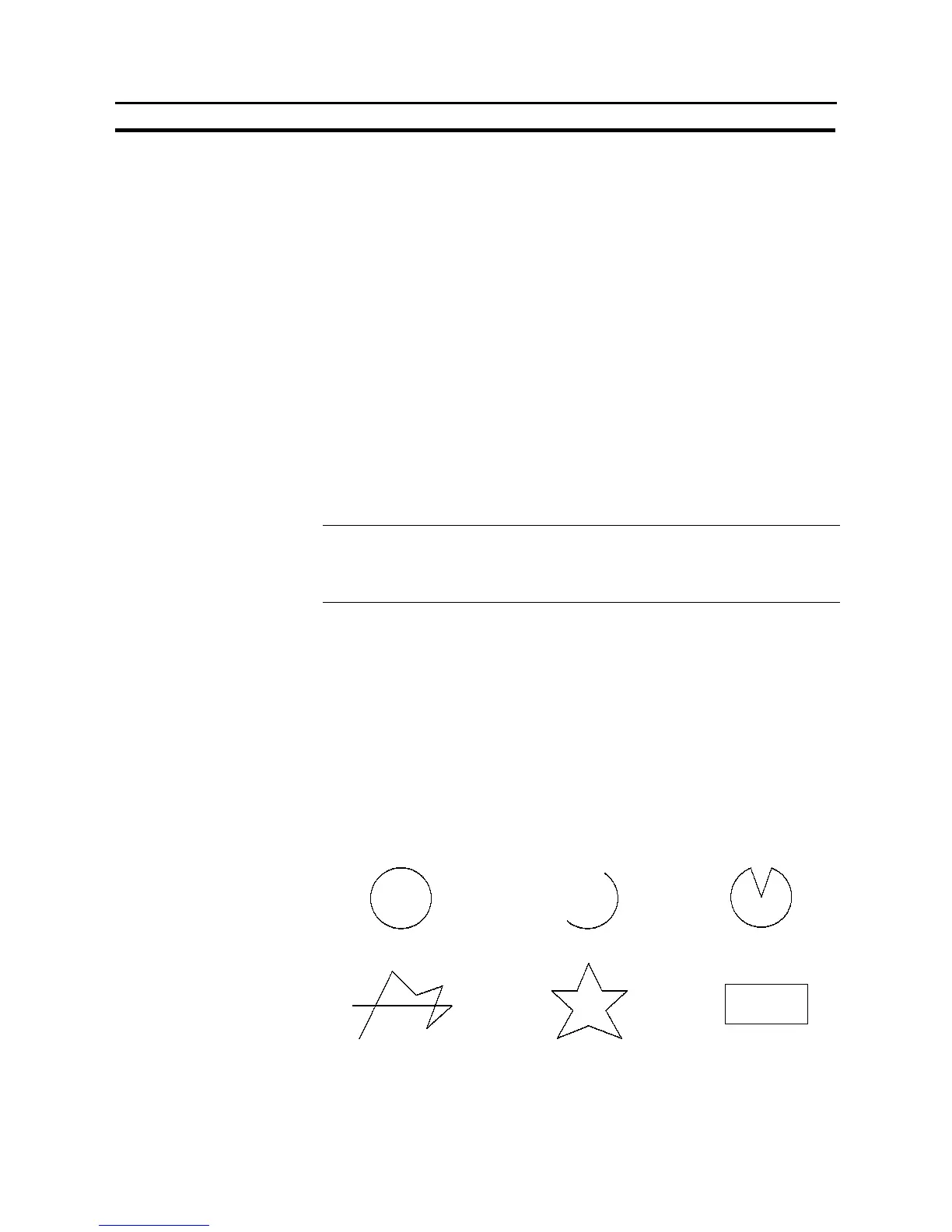

Polyline
Polygon
Rectangle
Circle
Sector
Arc
* A continuous straight line
with up to 254 intermediate
points can be drawn.
* A polygon with up to
255 vertices can be
drawn.
To Next Page
