Functions of the NT31/NT31C
Section 1-2
1-2-6 Displays

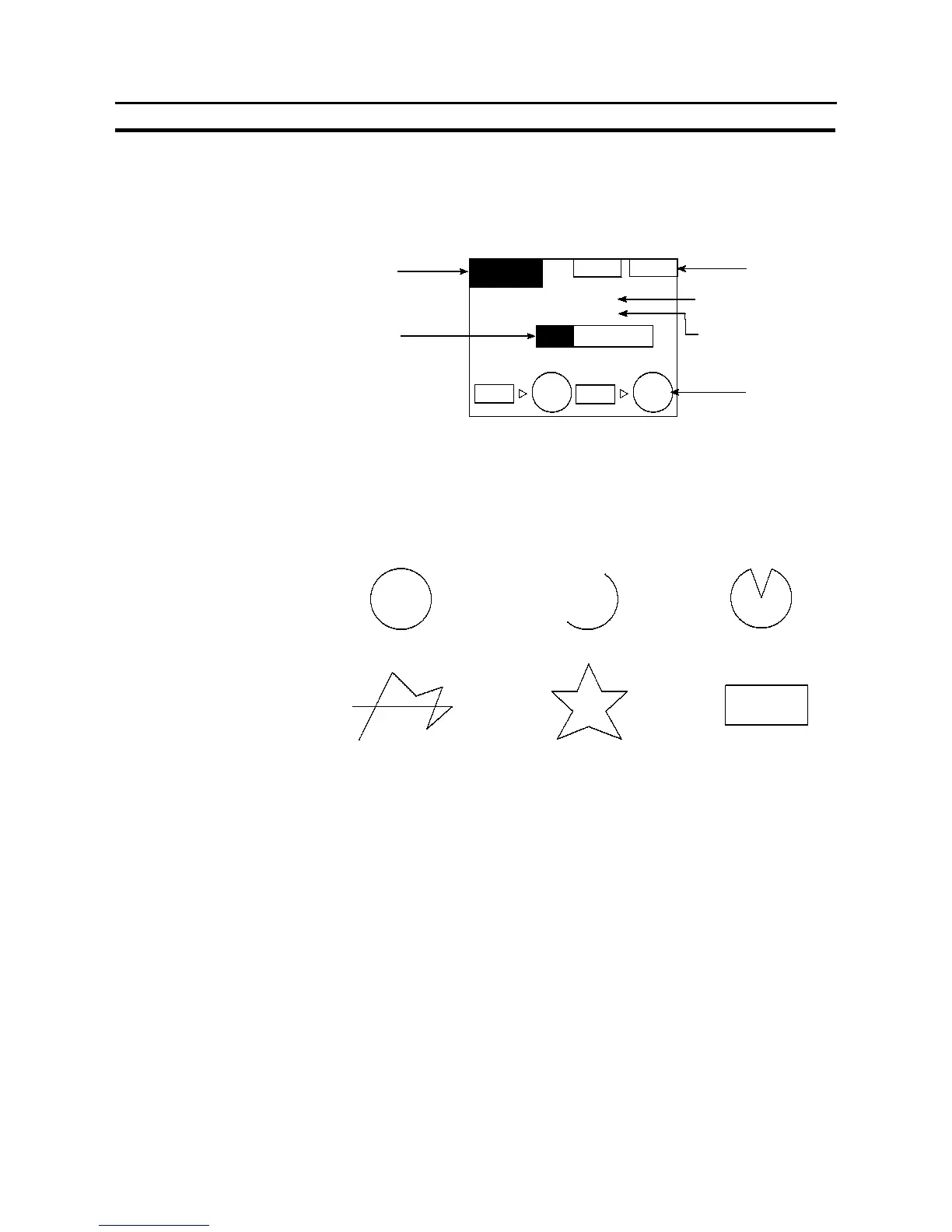

The NT31/NT31C can display various kinds of elements such as characters, nu-
meric values, graphs, lamps, and touch switches, on a screen. The screen data
displayed by the NT31/NT31C are created by using the Support Tool at a personal
computer.
Lamps
Characters
(character string display)
Touch switches
Characters
(fixed display)
Bar graph
Line 1 Status
Stop
Restart
Machine name:NT31C-ST141
Production qty.:137 units
Stage 2
Check 2Check 1
Stage 1
0% 50% 100%
25%
Numeric values
(numeral display)
S Fixed displays
Characters and various graphics (circles, circular arcs, sectors, polylines, poly-
gons and rectangles) whose display does not have to be changed, and mark
data, image data, and library data that has already been registered, can be writ-
ten directly onto the screen.
Polyline
Polygon
Rectangle
Circle
Sector
Arc
* A continuous straight line
with up to 256 points can
be drawn.
* A polygon with up to
255 vertices can be
drawn.
“Marks” are graphics comprising 16 by 16 dots that can be used as characters.
They can be used as custom characters within character strings.
“Image data” are graphics comprising any required area of dots. They are regis-
tered in advance and as many as required can be displayed at any position on
the screen.
Windows bit map (BMP) data can be used for images.
There is a two-color mode, in which the display color and background color of the
image are specified when it is registered in a screen, and an eight-color mode in
which colors are assigned to the image in advance.
Since image data is composed of dots, it requires a large data size but offers
great powers of expression.
