41
Connecting to the Support Tool
Section 3-2
3-2 Connecting to the Support Tool
In order to install the system program in the NT31/NT31C, or to transmit screen
data created with the Support Tool to the NT31/NT31C, the NT31/NT31C must be
connected to a personal computer with an RS-232C cable.

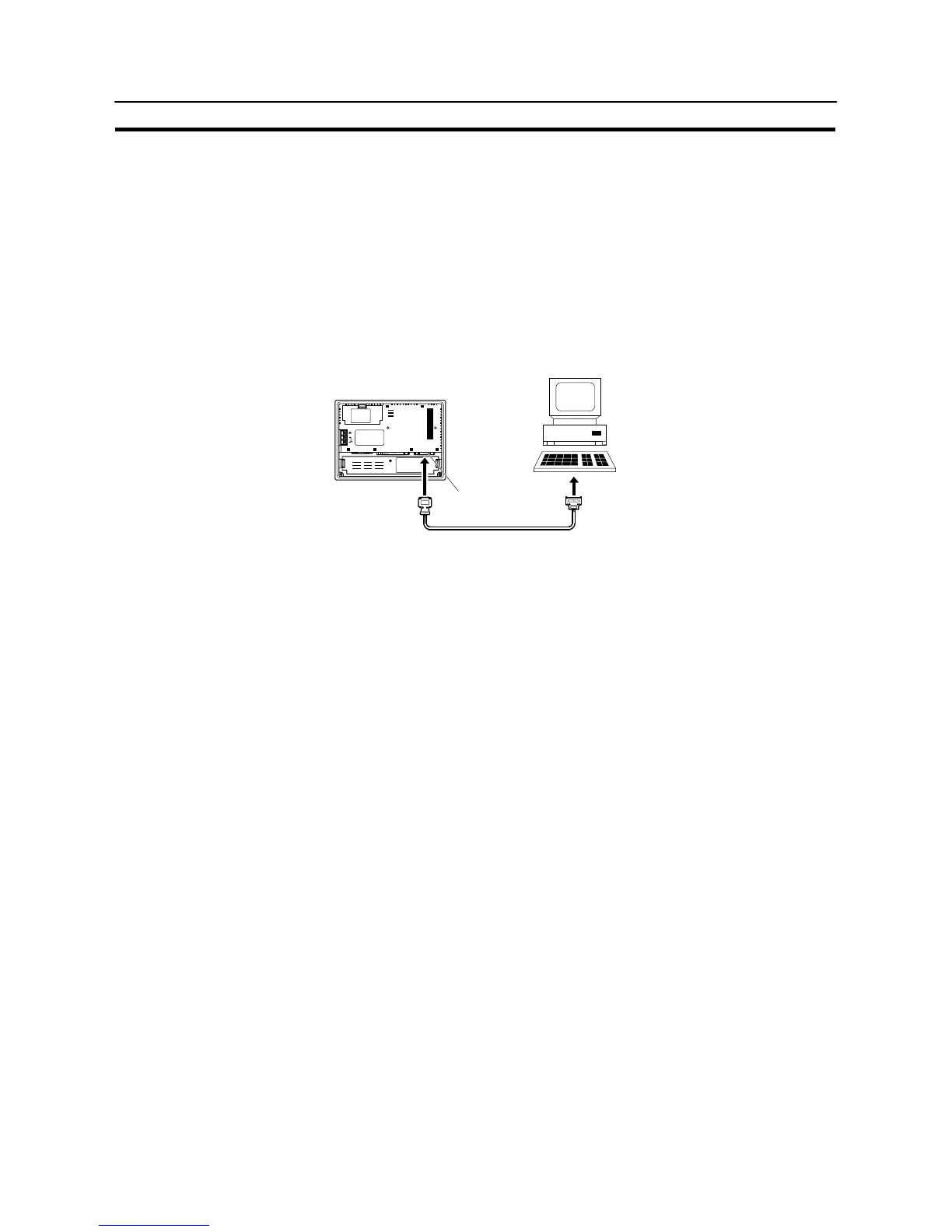

The NT31/NT31C connects the RS-232C cable from a personal computer at serial
port A. When the host is connected at serial port B, the connection with the host
can be maintained as it is while the NT31/NT31C is connected to the RS-232C
cable from a personal computer.
However, when a bar code reader is being used, it must be disconnected, so that
the RS-232C cable can be connected, since they both use serial port A.
PRINTER PORT B PORT A
Serial port A
(RS-232C, 9-pin)
S Communication conditions
The communication conditions are automatically set when the system installer
and Support Tool are started.
S Recommended connector cable
Use the cable indicated below.
- CV500-CN228 (length: 2 m), made by OMRON
(D-SUB 9-pin, male ⇔ D-SUB 25-pin, male)
- XW2Z–S001 (conversion cable), made by OMRON
(D-SUB 25-pin, female ⇔ half pitch 14-pin, male)
- XW2Z–S002 (length: 2 m), made by OMRON
(D-SUB 9-pin, male ⇔ D-SUB 9-pin, female)
For details on making a connector cable, refer to APPENDIX F “Making the
Cable for Connecting a PC” (page 664).
To Next Page
