Using an RS-232C/RS-422A Convertor Unit
APPENDIX C
APPENDIX C
Using an RS-232C/RS-422A Convertor Unit
This section outlines the external dimensions, procedure for mounting and removal, and specifications of an
RS-232C/RS-422A convertor unit (NT-AL001). Refer to this information when designing the control panel. For
details, refer to the instruction manual supplied with the NT-AL001.

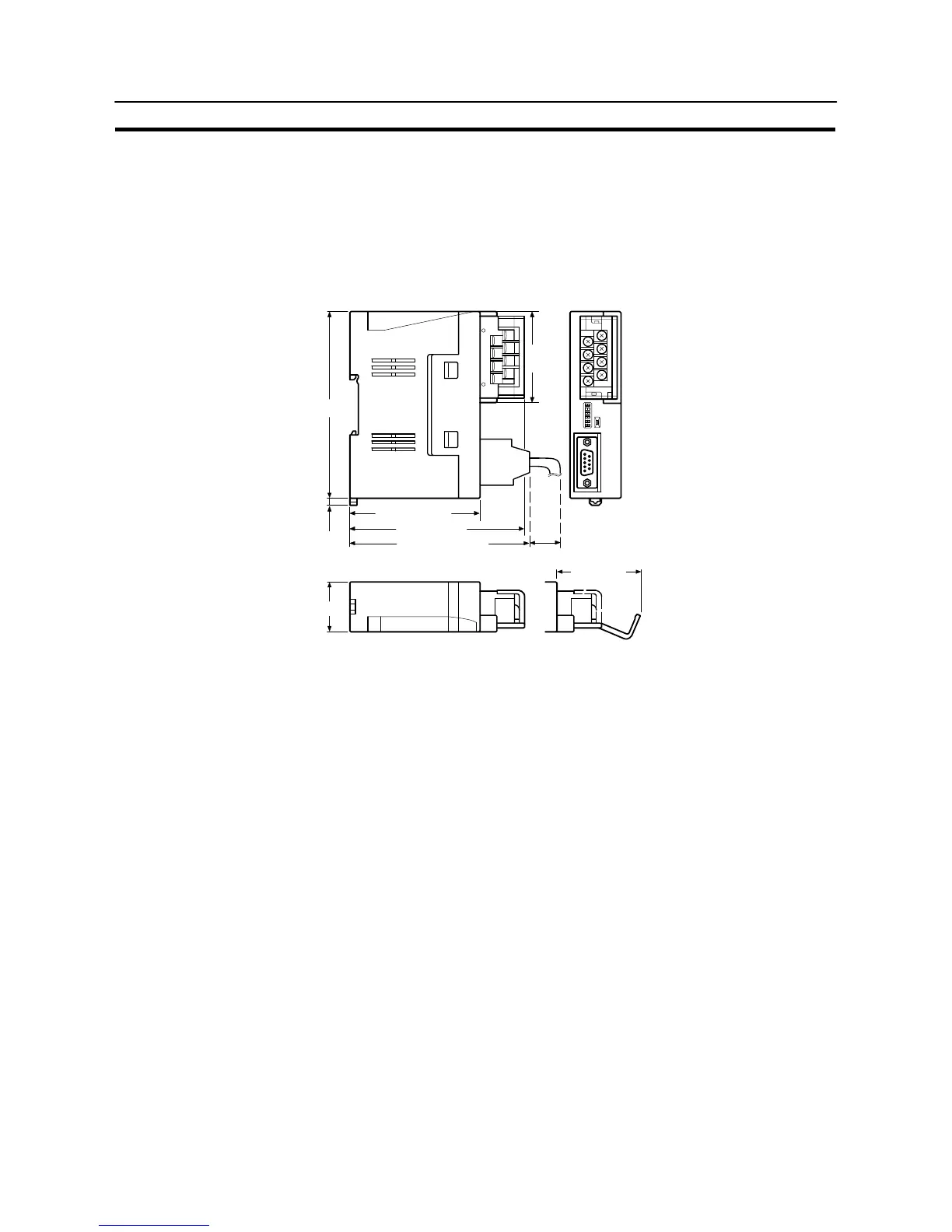

Dimensions
om onR
NT–AL001
100.2 (3.94)
74.5 (2.93)
110 (4.33)
4 (0.16)
30 (1.18)
45 (1.77)
53.5
(2.11)
(30)
(1.18)
105 (4.13) max.
Units: mm (inch)
30 (W) 114 (H) 100.2 (D) mm: with the RS-422A terminal block cover closed
30 (W) 114 (H) 119.5 (D) mm: with the RS-422A terminal block cover open
Methods for Mounting and Removal
The RS-232/RS-422 convertor unit (NT-AL001) can be mounted on a DIN rail or in an operation panel.
The RS-422A terminal block of the convertor unit can be easily removed.
