357
Numeral Display
Section 7-8
7-8 Numeral Display
[Function Outline]
The contents of numeral memory tables are displayed as numeric values.
The values can be displayed either in decimal or hexadecimal notation.

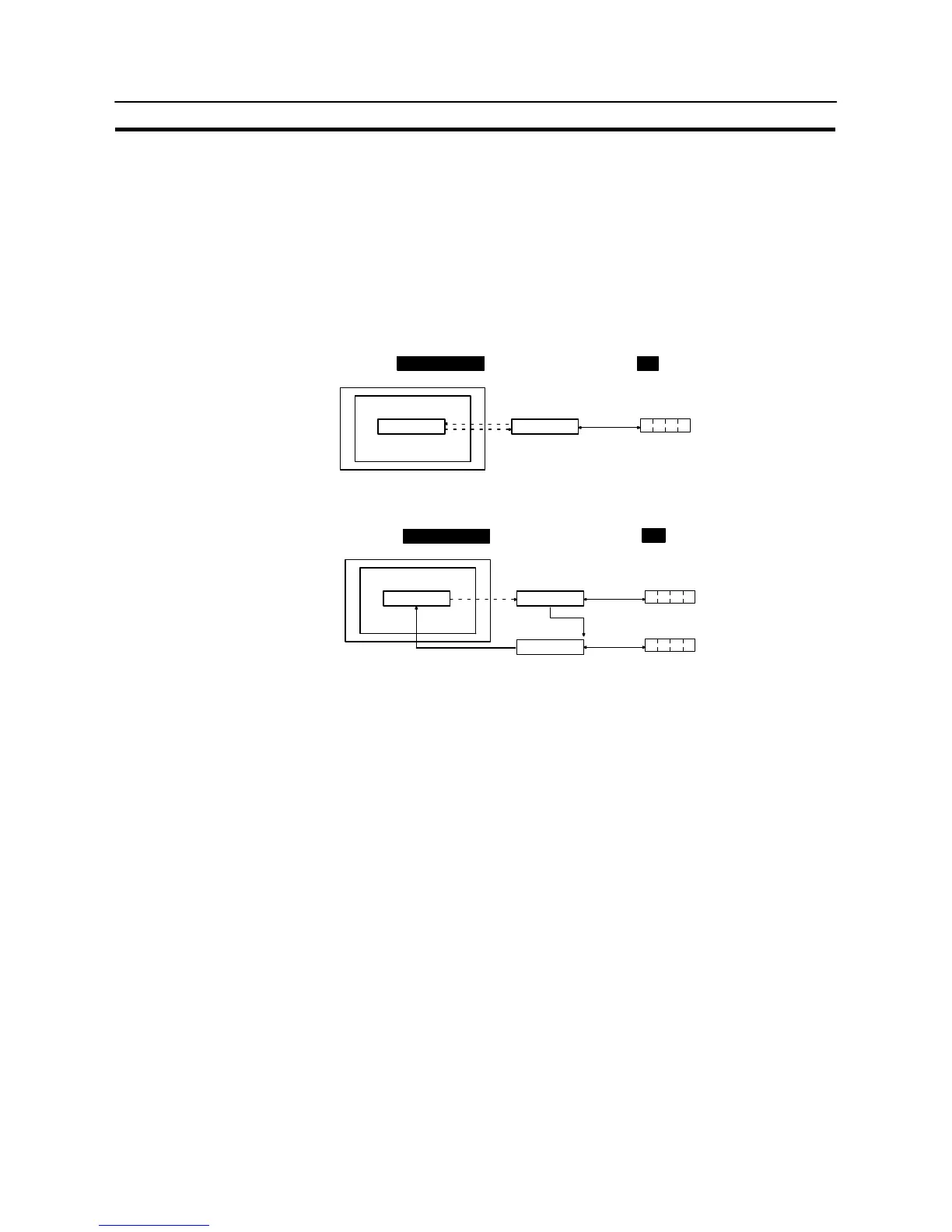

There are two methods for referencing a numeral memory table whose contents
are to be displayed, as follows.
S Direct reference (reference of the number of the relevant numeral memory
table)
Allocated word
(numeral memory table No. 18)
PC
DM0100
0 0 6 2
NT31/NT31C
0 0 6 2
0062
Direct
reference
Numeral memory
table No. 18
S Indirect reference (reference of the numeral memory table that stores the num-
ber of the relevant numeral memory table)
PC
DM0100
7 7 7 7
0 0 6 2
0062
7 7 7 7
7777
DM0200
NT31/NT31C
Indirect
reference
Numeral memory
table No. 18
Allocated word
(numeral memory table No. 18)
Numeral memory
table No. 62
Allocated word
(numeral memory table No. 62)
[Restrictions]
S A maximum of 256 numeral displays can be registered for one screen. (Same for
window screen.) For an overlapping screen comprising 8 child screens, the
maximum is 1024.
There is no restriction on the number of numeral displays that can be registered
for one screen data file: any number can be registered as long as the data file
capacity is not exceeded. However, if a large number of elements are regis-
tered, check that the restrictions on element display are complied with by refer-
ring to “Display Restrictions” (page 644).
S The maximum number of numeral display which can be displayed using “indirect
reference” is 100 per screen combined with the number of character string dis-
play which is displayed using “indirect reference”. (Same restriction opplies to
overlapping screens or when displaying window screens.)
S The range of numeric values that can be displayed depends on the “Storage
Type” (“BCD” or “Binary”), “Display Type” (“Decimal” or “Hexadecimal”), and
“Display Sign” settings made for the numeral memory table. For details, refer to
7-3-1 “Numeral Memory Tables” (page 284).
To Next Page
