Chapter 3 Operator Interface
The status of the drive will show one of the following:
NOT READY – drive is not ready to start
READY – drive will start when commanded
FORWARD RN – drive is running in the forward direction
REVERSE RN – drive is running in the reverse direction
WA R N I N G – d ri ve ha s a w a rn i ng
FAULTED – the drive is faulted
DISCHARGING – waiting for the input filter capacitor to discharge on an
Active Front End drive before re-start

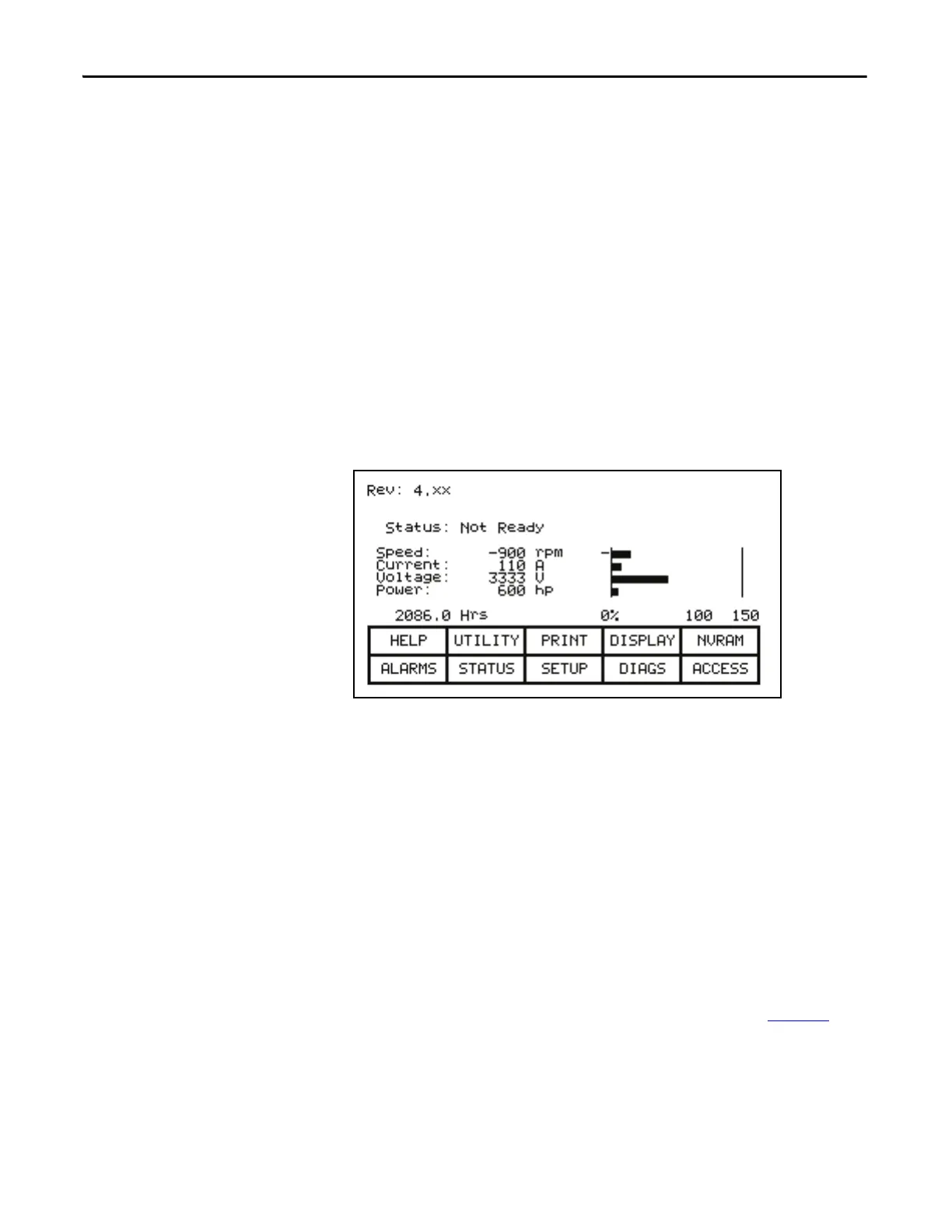

Figure 77 - Top Level Menu
How To
The following sections describe how to perform the various operations on the drive,
using the operator interface. Throughout the discussion, a number of screens will
be used to achieve the desired operation. In many cases, the same screen will be used
for more than one operation, however with possibly different data from the drive.
Throughout the section, you want to focus on how the operation is performed.
The operator interface will take care of what screens are needed to perform the
operation.
Obtain Help
Help is obtained for any screen by pressing the [F1] function key. Figure 78
shows the help screen, which is displayed for the Top Level Menu. After the name
of the screen (i.e. HELP:) is the name of the screen for which help is being
accessed. (In this case the name of the Top Level Menu is REV.) This particular
help screen contains three pages. To view page two, press the [F8] key. Page 2 is
displayed. To return to page 1, press the [F9] key.
To Next Page
