324 Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020
Chapter 5 Component Definition and Maintenance
DC FAIL:
Upon loss of DC output (V outputs ≤ 49 VDC) this output goes from low to
high.
Location
The AC/DC power supply is located in the low voltage panel in the far right-
hand section of the drive. A typical low voltage compartment is shown in
Figure 271
.

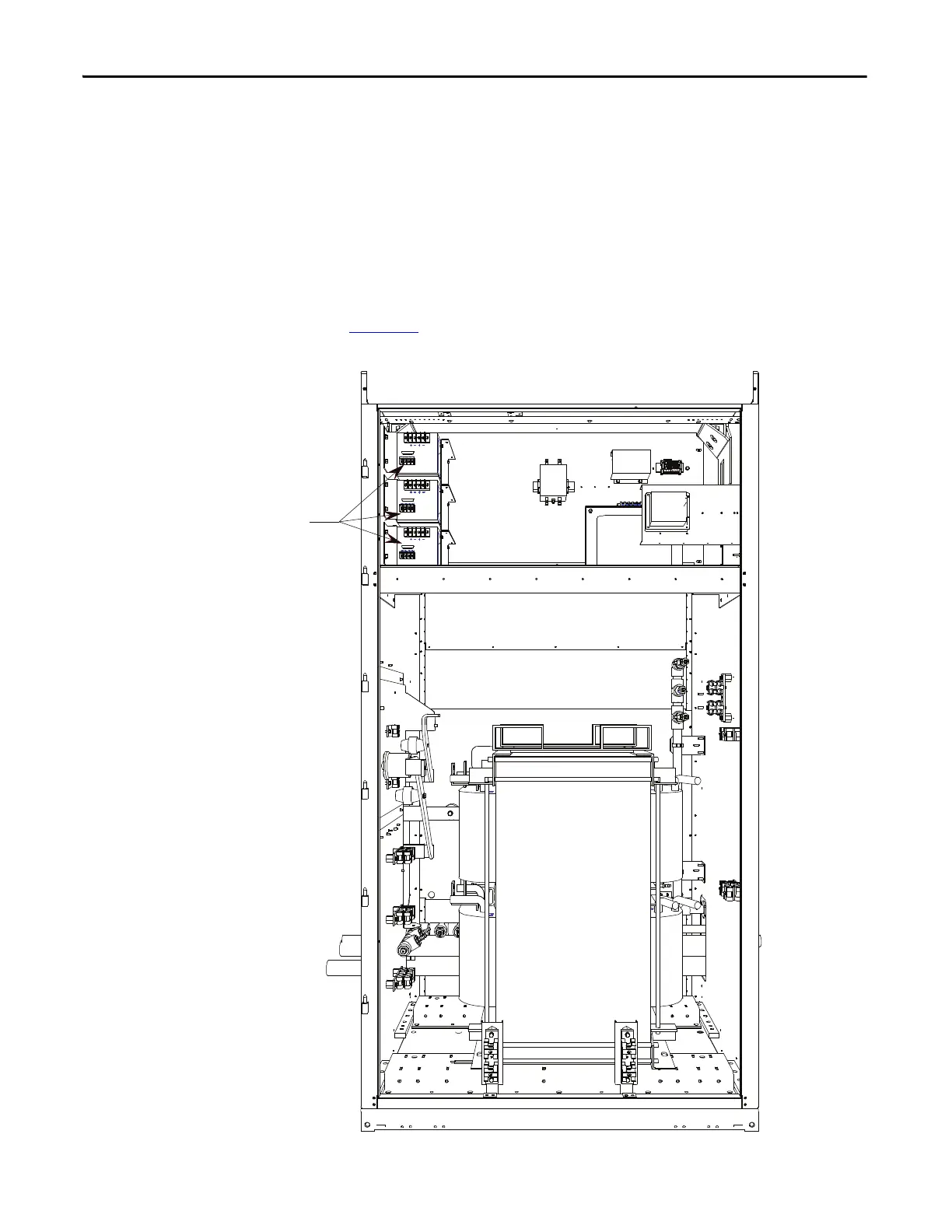

Figure 271 - Location of AC/DC Pioneer Power Supply on Low Voltage Panel
A
C/DC Power Supplies
(Pioneer)
