Chapter 3 Operator Interface
Help on Help
The previous sections described how you can access help for a particular screen,
by pressing the [F1] key while on that screen. This also applies while in any of the
help screens.
Pressing [F1] while in a help screen will give you a help screen describing how to
use the help system. An example of a screen giving help on the help system is
shown in Figure 80
. As with the help screens previously described, the screens
will contain related topics.
To return to a previous screen of help information, press the [backspace] key. To
return to the screen from which help was originally
accessed, press the [F10] key.

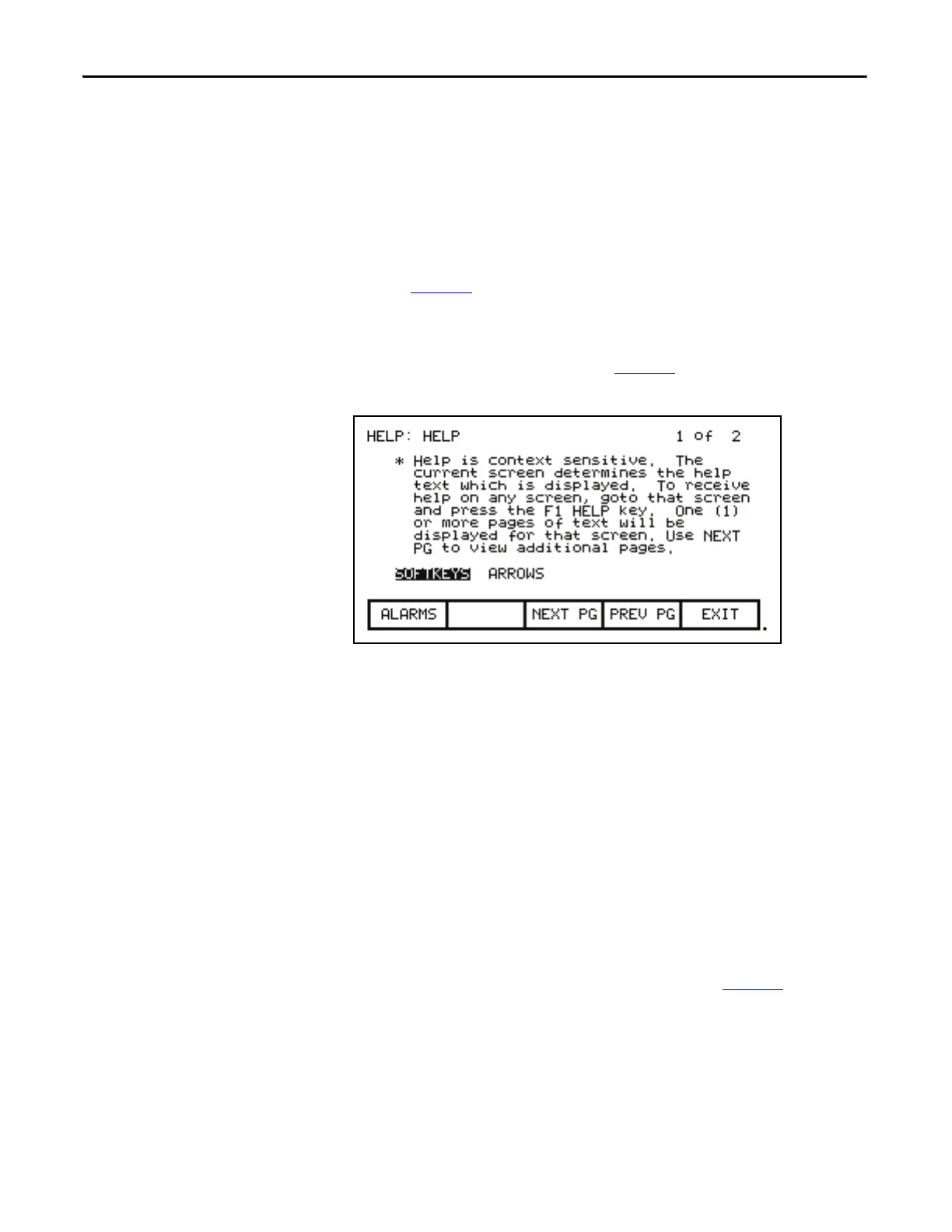

Figure 80 - Help on Help
Modify Operator Interface
Operation (Utility)
The utility operation of screens change the characteristics of the operator
interface. Within this operation you will:
• Set the clock and calendar
• Change the delay for the display backlight shutoff
• Change the contrast of the display
• Define the meters that will be displayed on the Top Level Menu
• View the revision levels of all software in the drive line-up.
• Transfer data between the operator interface ‘flash’ memory, ‘flash’
memory card and the drive.
• Load a new language module.
You will access the Utility operation from the Top Level Menu by pressing the
[F2] key. This results in the display of the screen shown in Figure 81
.
In all operations on this screen, the value currently being acted upon is shown in
reverse video. Only when the value is in this state, may it be modified.
