PCMCIA Memory Card
Installation Data
Description
The memory card slides into the card slot located on the backside of the
PowerFlex 7000 drive operator interface. These instructions show how to insert
the card in the Operator interface.
Installing the Memory Card
1. Locate the vertical card slot on the back of the operator interface. See
Figure 177
.

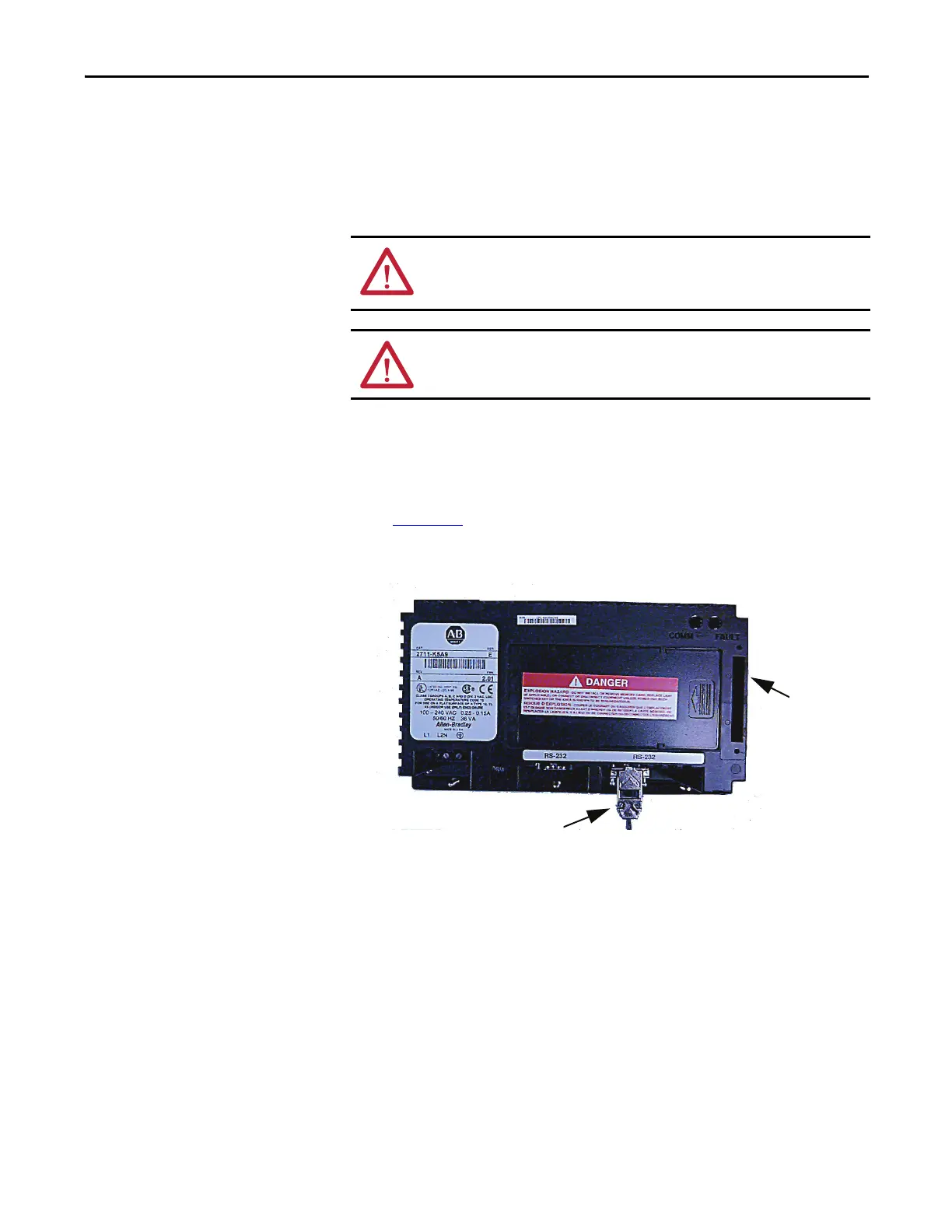

Figure 177 - Rear View of Operator Interface
2. Position the card vertically so the key slot is facing the right side of the
operator interface.
WARNING: The memory card should be kept free from moisture, extreme
temperatures, and direct sunlight. Failure to observe this caution could result in
damage to the card.
WARNING: Do not subject memory card to flexing or extreme shock. Failure to
observe this caution could result in damage to the card.
COMMUNICATION CABLE
CARD SLOT
