Operator Interface Chapter 3
Only the root directory of the card is used, as sub directories are not supported in
the operator interface.
Select a Filename
When working with existing files on the flash card, it is necessary to pick a file
from the directory in order to use in the operation being performed. When the
DIRECTORY screen is entered, all files that are relevant to the operation are
displayed. The [cursor up] and [cursor down] keys are then used to select the
desired file. Pressing [Enter] will select the file and proceed with the operation.
Press the [F10] key to abort the selection operation and return to the previous
screen without continuing with the operation.
Enter a Filename
When a new file is being created, the DIRECTORY screen is used to enter the
new filename. Upon entering the screen all existing files relevant to the operation

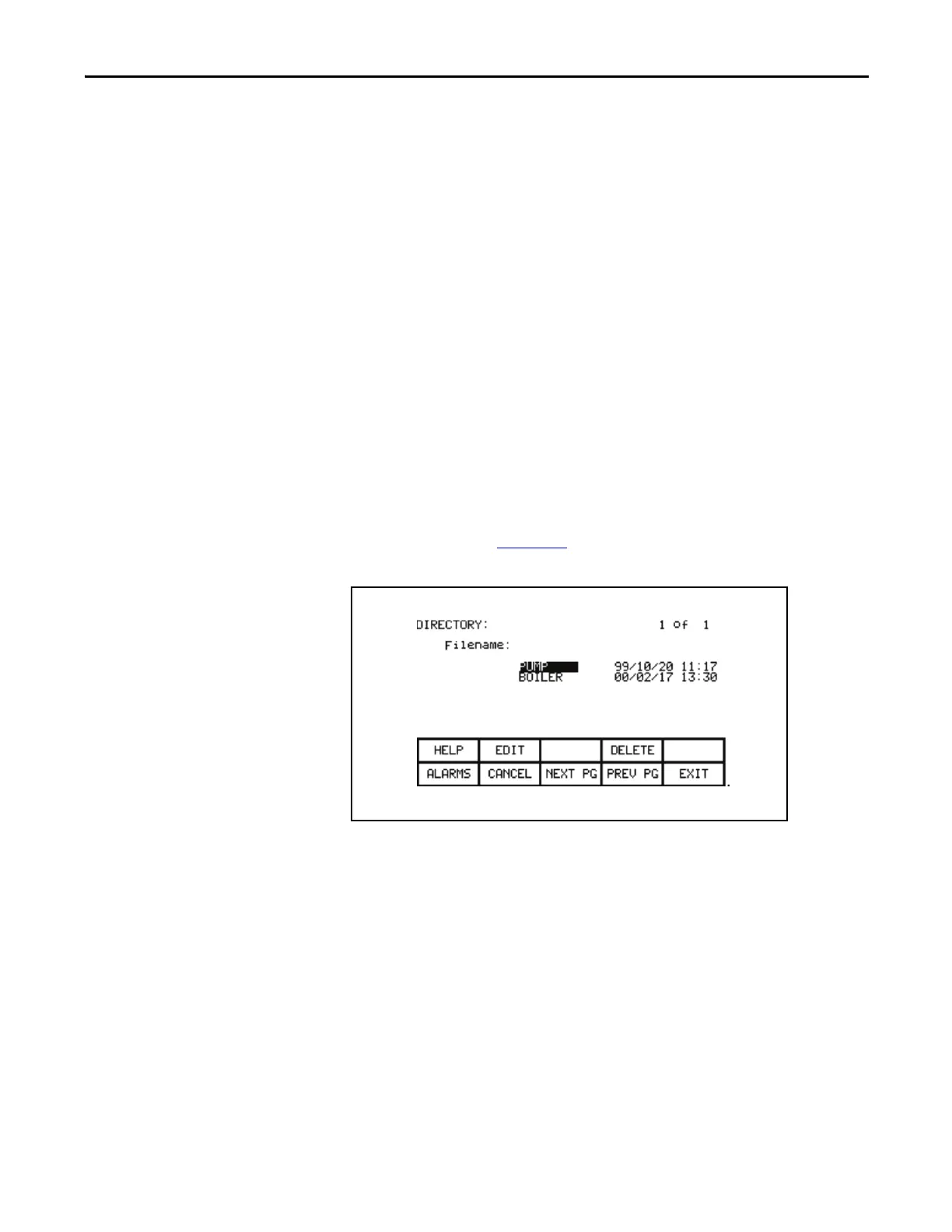

are shown as shown in Figure 161
.
Figure 161 - Typical File Selection
An existing filename can be used as a basis for the new filename by first selecting
that filename. Press the [F2] key. The filename can now be edited. Refer to the
section entitled “Edit Text” for further details. When complete, pressing the
[Enter] key will proceed with the operation.
