You will access the Transfer operations from the Utility screen by pressing the
[F7] key. This results in the display of the screen shown in Figure 158
.

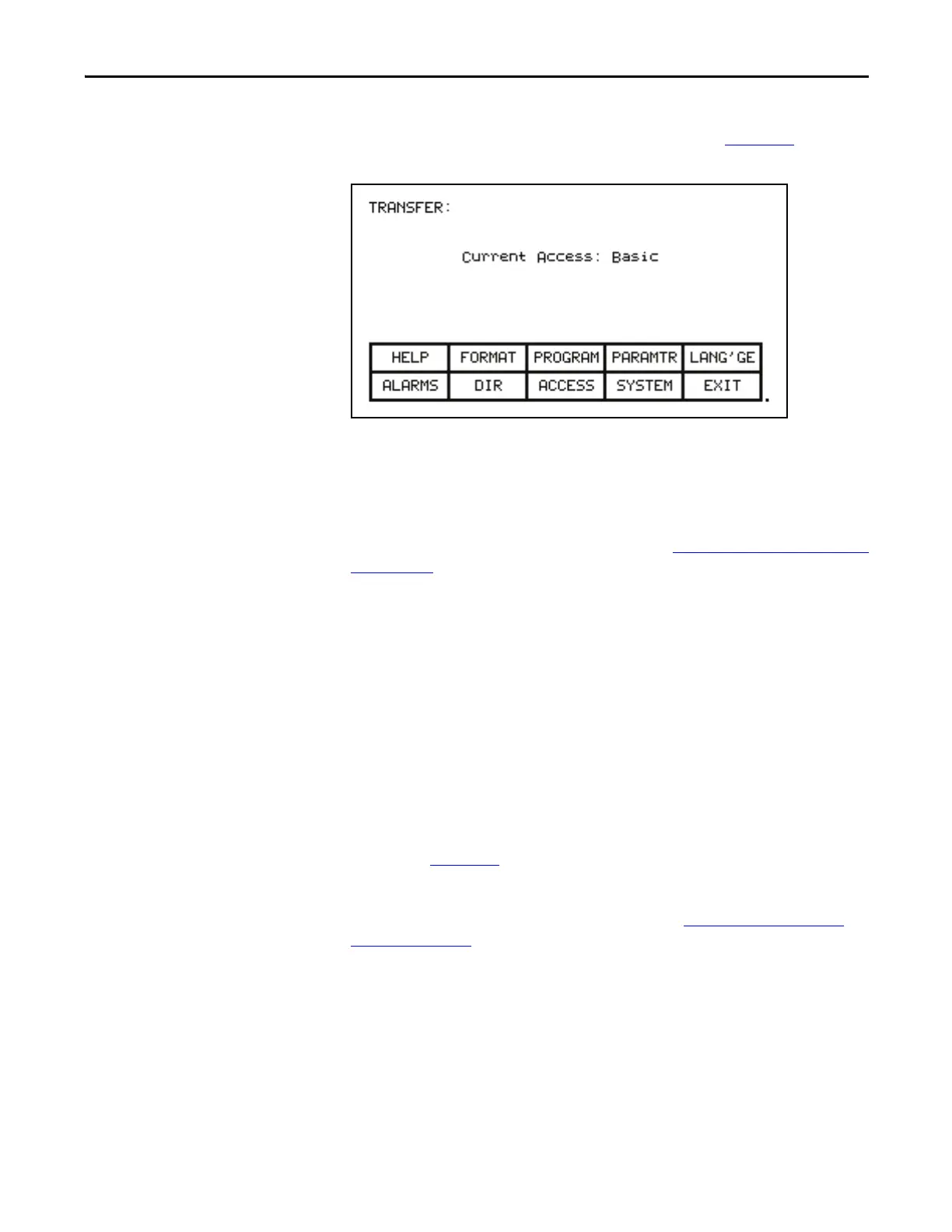

Figure 158 - Transfer Main Menu
From this screen, additional screens are used to perform the various functions
involving the flash memory. The screen shows the current access level of the
operator interface. Any operation that will alter the contents of the flash memory
or of the drive requires the access level to be something other than 'Monitor'. At
the 'Monitor' level you may view the contents of the flash card. To change the
access level, press the [F8] key. Refer to the section Enter/Modify an Access Level
on page 116.
Format Flash Card
Flash card files have a characteristic unlike normal DOS files. They can not be
modified once written. New files can be added to the card; however they cannot
be selectively removed.
When a new flash card is to be used or all the files removed from an existing card,
the card must first be formatted. Formatting erases all data on the card and creates
a DOS file structure.
To format a card press the [F2] key on the TRANSFER screen. The screen will
appear as in Figure 159
, indicating the operation you are about to perform and
showing the current status of the operation. (If nothing happens then you have
not gained the required access to modify the flash memory. Exit to the
TRANSFER screen and refer to the section entitled Enter/Modify an Access
Level on page 116 to gain access).
