Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020 133
Operator Interface Chapter 3

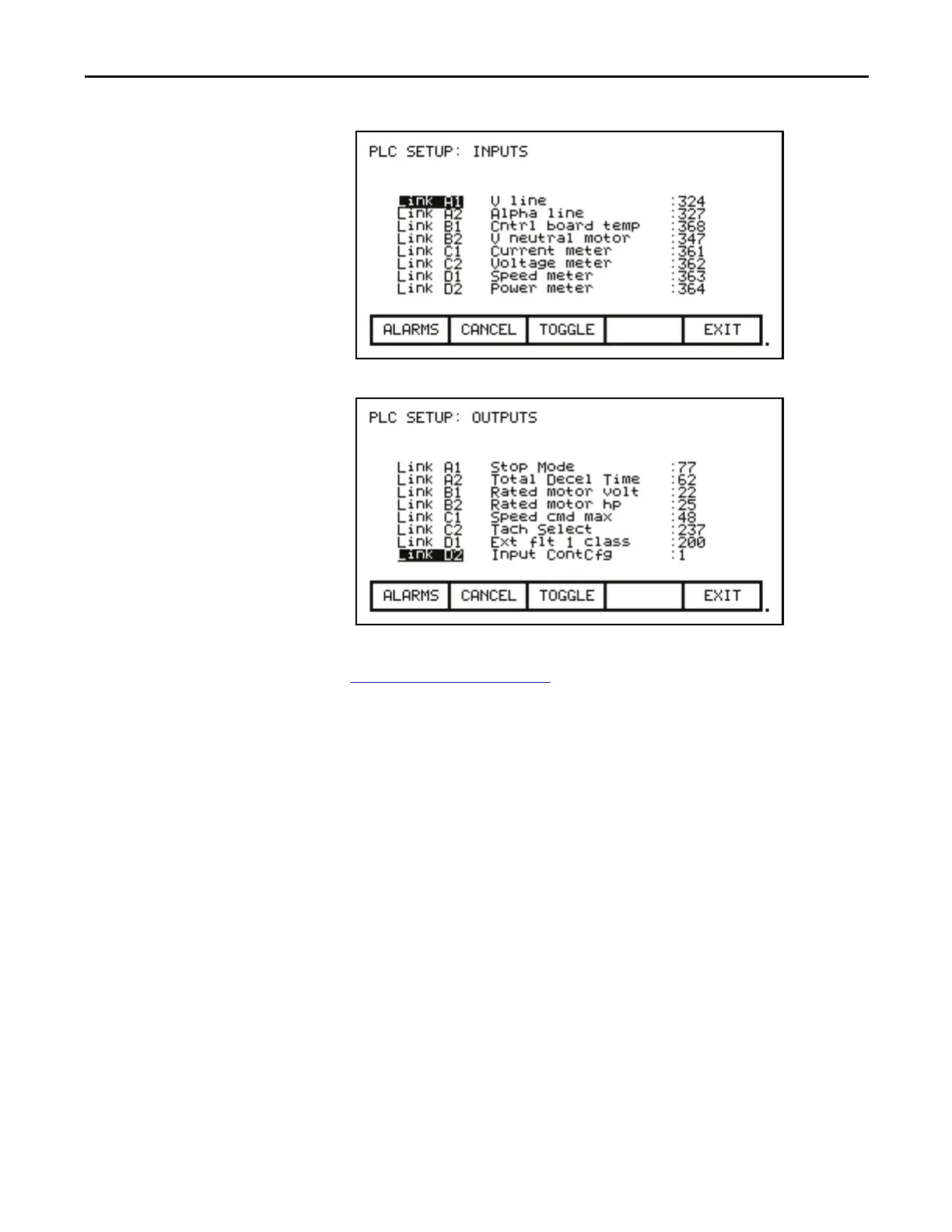

Figure 131 - PLC Input Links
Figure 132 - PLC Output Links
This will begin the selection process of a tag as described in the section entitled
Select a Parameter
on page 110. When selecting a tag for the output words, only
parameters will be allowed. Both parameters and read-only parameters are
allowed for the selection of input words. When you have completed the selection
process, the selected tag will be assigned to the link. To remove an assignment to
the highlighted link, press the [delete] (Backspace) key.
The changes made do not take affect until you press [F10] and exit the screen.
Any time prior to this you may cancel all of the changes made after coming to the
screen by pressing the [F7] key.
XIO
The drive uses XIO adapters to hardwire to discrete inputs and outputs. Each
drive contains one or more of these modules. Each module contains a unique
address that is assigned automatically according to where it is attached on the
link. This address value can be seen on the LED display of the module. The drive
must be configured with these address values to link them to a parameter in the
drive. To setup the XIO configuration, use the up/down arrow keys on the
SETUP screen to select the 'XIO' option and press the enter key
Note: This feature is currently inactive and is reserved for future enhancements.
