DeviceNet™ Commissioning 5-5
9. Click the Finish button. After a short while RSNetWorx will
update your online screen by replacing the unrecognized device
with the name and icon given by the EDS file you have just regis-
tered.
Using the Node Commissioning
Tool Inside RSNetWorx for
DeviceNet
1. Choose “Node Commissioning” from the “Tools” menu at the
top of the screen.

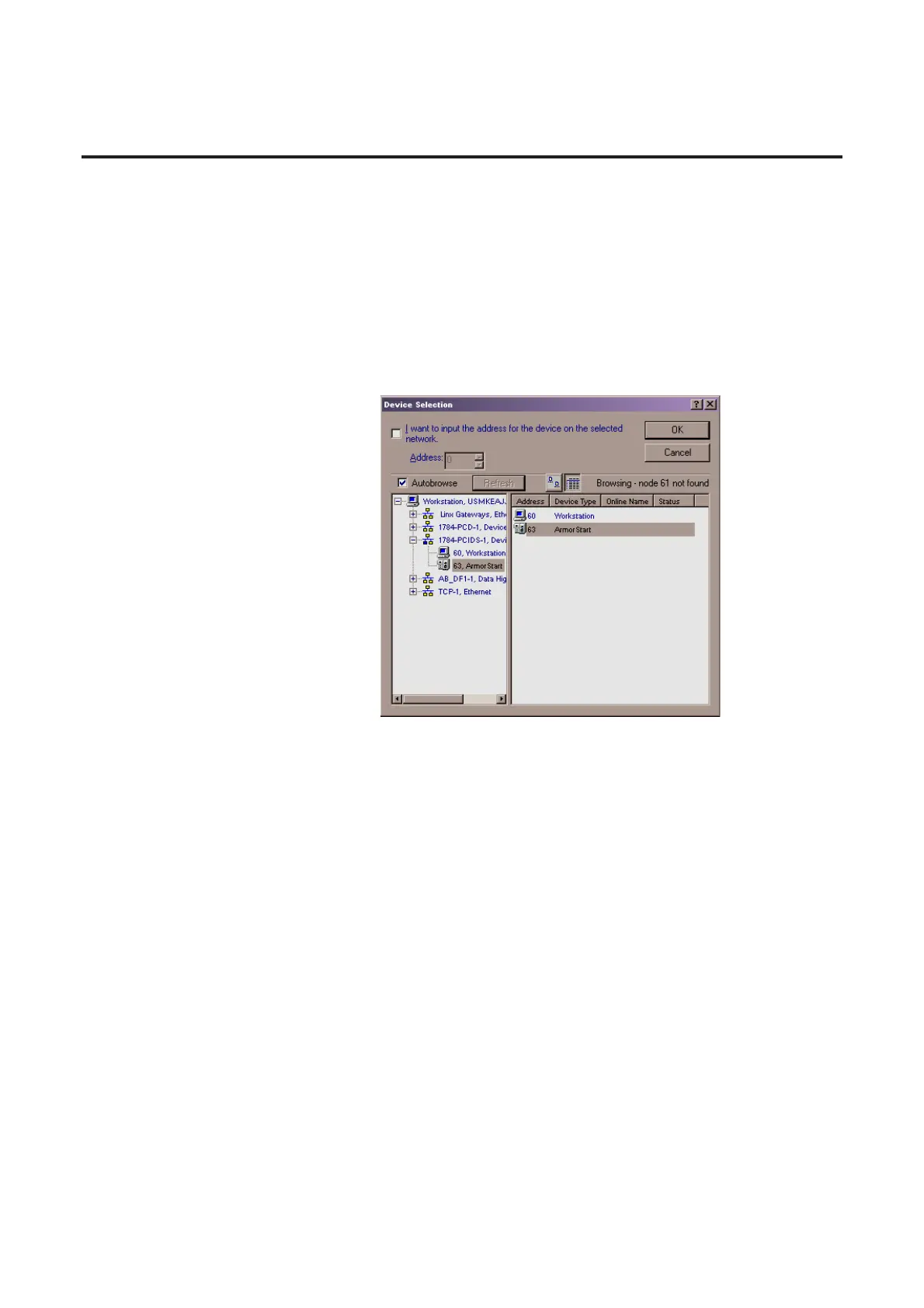

2. Clicking on Browse… will prompt a screen similar to the one
below to appear.
3. Select the ArmorStart located at node 63, and then click OK. The
node commissioning screen will have the “Current Device Set-
tings” entries completed. It will also provide the current network
baud rate in the “New ArmorStart Settings” area. Do not change
the baud rate unless you absolutely sure that this value needs to
be changed.
4. Enter the desired node address in the “New Device Settings” sec-
tion. In this example, the new node address is 5. Click Apply to
apply the new node address.
