Installation and Wiring 2-31

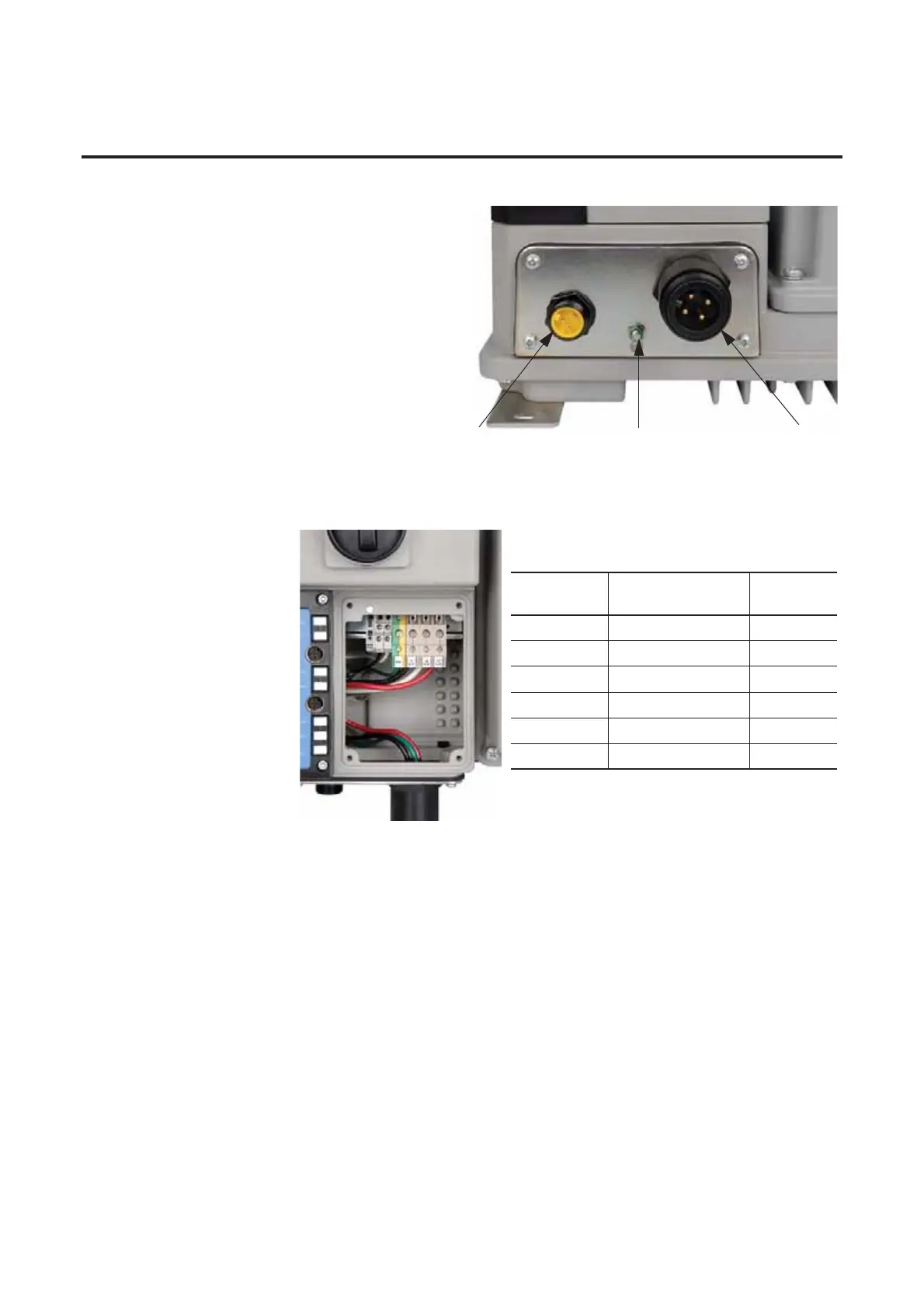

ArmorStart with ArmorConnect Connectivity
Terminal Designations
ArmorConnect Cable Ratings
The ArmorConnect power media cables are rated per UL Type TC
600V 90 °C Dry 75 °C Wet, Exposed Run (ER) or MTW 600V 90 °C
or STOOW 105 °C 600V - CSA STOOW 600V FT2.
Control Power
Receptacle
Ground
Terminal
Three-Phase
Power
Receptacle
Terminal
Designations
Description Color Code
A1 (+) Control Power Input Black
A2 (-) Control Power Common White
PE Ground Green/Yellow
1/L1 Line Power - Phase A Black
3/L2 Line Power - Phase B White
5/L3 Line Power - Phase C Red
