Rockwell Automation ArmorStart Bulletin 280G User Manual

Troubleshooting 10-19
Base Module Replacement
(Bulletin 284G)
Removal of Base Module
1) Disconnect from power source.
2) Remove all cables from Control Module, comunication cables and
all others connected to the inputs.
3) Loosen four mounting screws on the Control Module.
4) Unplug Control Module from the base by pulling forward.
5) Loosen mounting screws and remove.

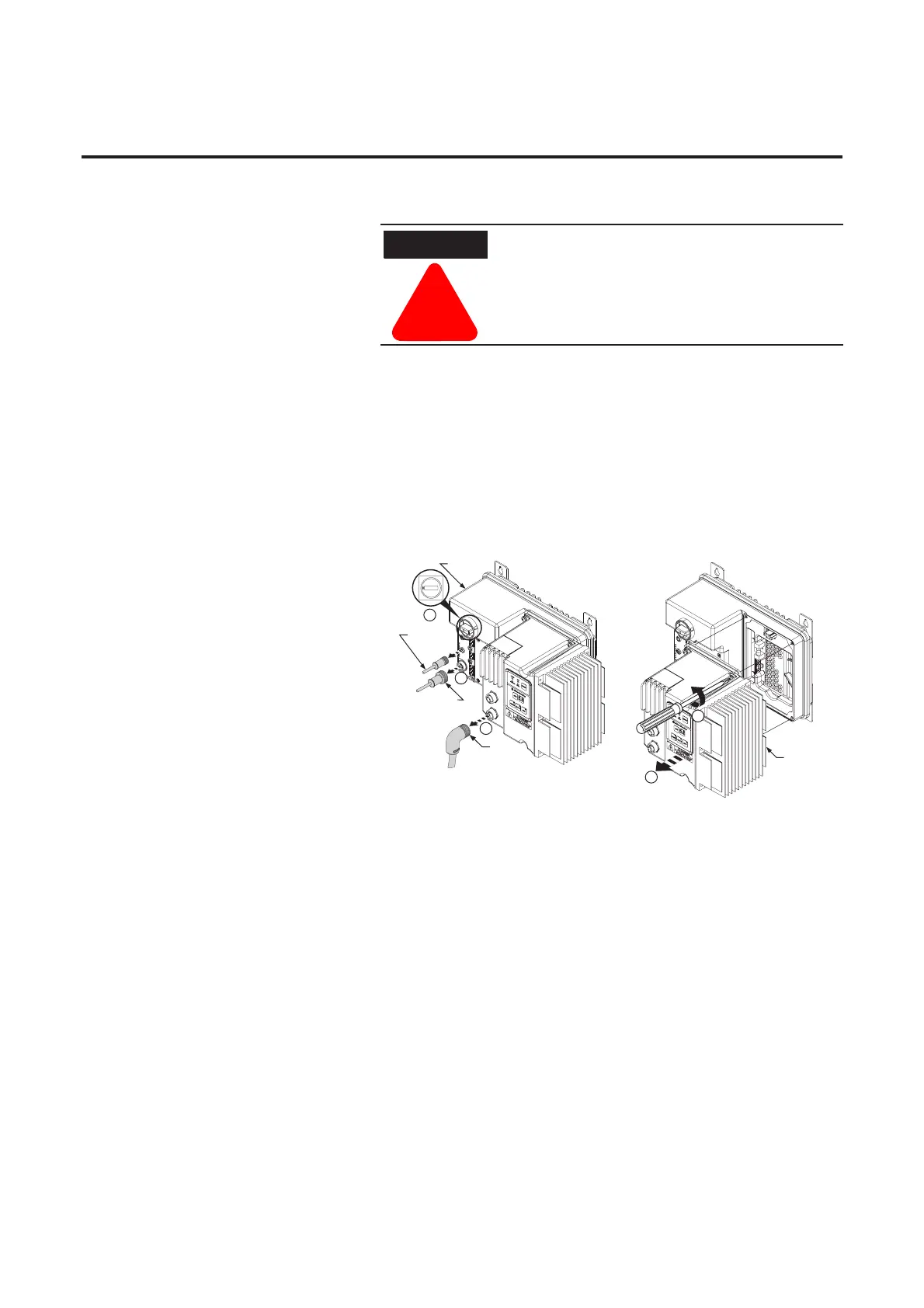

Figure 10.5 Bulletin 284G Base Module Removal
ATTENTION
!
To avoid shock hazard, disconnect main power
before working on the controller, motor, or control
devices
1
2
2
4
3
Base Module
Input/Output
Cable
Communication
Cable
Motor
Cable
Control
Module
