5-12 DeviceNet™ Commissioning
Tools Menu

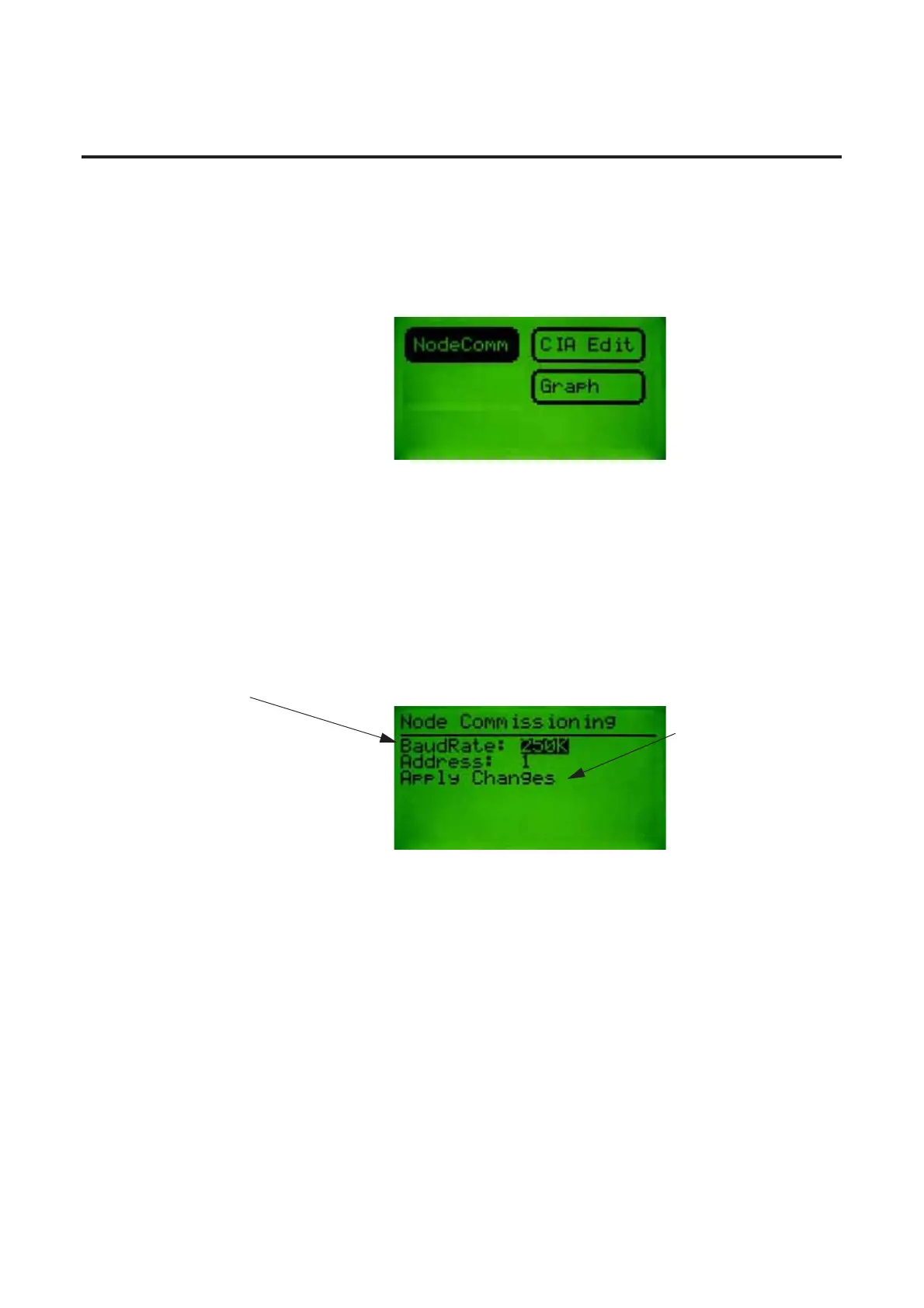

The Tools Menu gives the user access to the Node Commissioning
screen, a Class Instance Attribute editor, and a graphical parameter
chart recorder screen. The Tools Menu is shown below:
Node Commissioning
Pressing Enter while the NodeComm item is selected in the Tools
Menu invokes the Node Commissioning screen. Node commissioning
allows the operator to change the Mac ID and/or the baud rate for the
currently selected device.
Currently selected item
This only appears if one of the
fields has been changed.
Pressing Enter here will reset
the DeviceNet™ HIM after
writing any changes to the
device
