5-10 DeviceNet™ Commissioning
Setting the Motor FLA (Bulletin
284G)
The product should now be configured and communicating on the
network. The last step is to program the proper motor OL current
setting (Parameter 133). This can be accomplished by using software
such as RSNetWorx for DeviceNet or a handheld DeviceNet tool.
Use the software to access the device parameters screen. By default
the motor OL current is set to the minimum motor OL current setting
for the device. Set this parameter to the desired value and download to
the device.
Select Motor OL Current (Parameter 133) and enter a value that
corresponds to the FLA of the motor connected to the ArmorStart.
Make sure the Single radio button is selected and then select
Download to Device.
The proper motor protection is now in place.

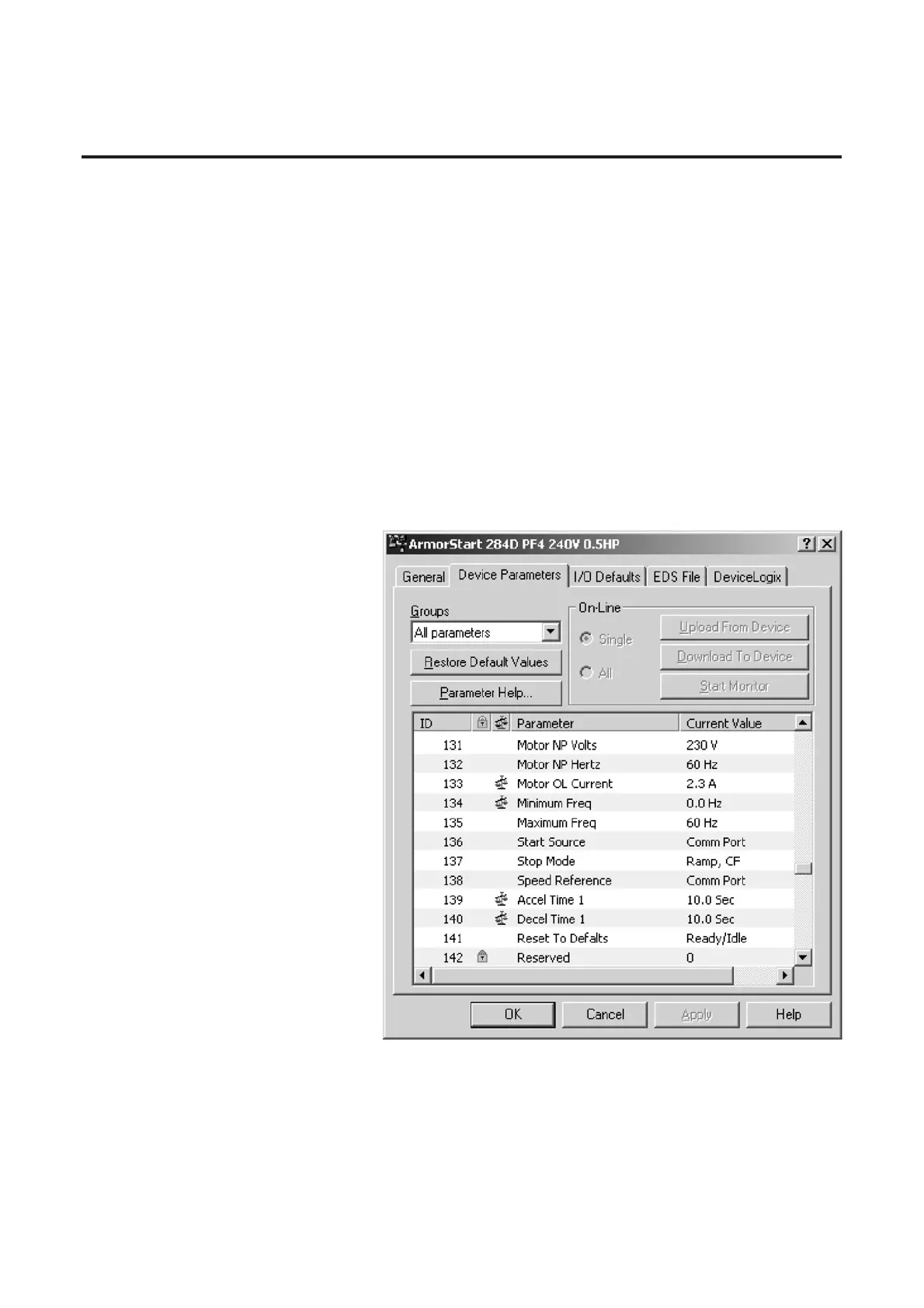

Figure 6 RSNetWorx Parameter Screen
