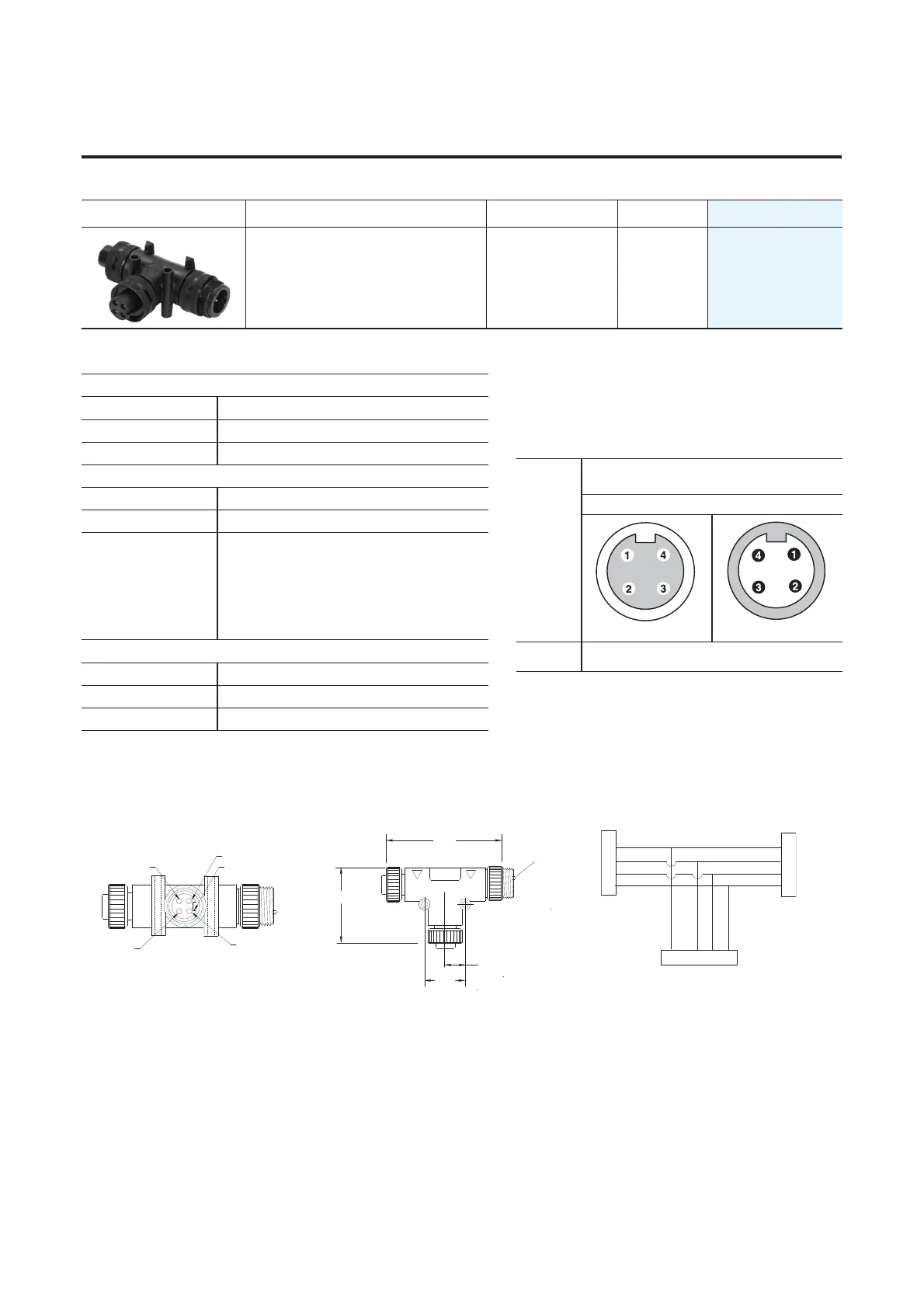

A-12 Specifications
Table 1.B Power Tees and Reducers
Specifications Pinout and Color Code
Approximate Dimensions
Dimensions in millimeters (inches). Dimensions are not intended to be used for manufacturing purposes and are subject to change.
Description Assembly Rating Color Code
Cat. No.
0
0
M35, 3-Phase Power Tee, 4 pole 25 A A 280-T35
Mechanical
Coupling Nut Black Anodized Aluminum or 316 Stainless Steel
Housing Black PVC
Insert Black PVC
Electrical
Contacts Copper Alloy with Gold over Nickel Plating
Voltage 600V AC/DC
Assembly Rating
Trunk Tee: 25 A
Reducing Tee: Trunk 25 A/Drop 15 A
Reducer: 15 A
Symmetrical Amps RMS Fault 65 kA when used with
Class CC, T, or J type fuses or
100 A circuit breaker
Environmental
Enclosure Type Rating IP67, NEMA 4; IP69K 1200 psi washdown
Certifications UL Listed (File No. E318496, Guide PVVA)
Standards Compliance UL 2237
Face View Pinout
Trunk Tee: 25 A
4-pin
Female Male
Color Code
(A)
1 Black 3 Red
2 Green/Yellow Extended PIN 4 White
#4-WHITE
#3-RED
#1-BLACK
#2-GREEN/YELLOW
KEYWAY
EXTENDED PIN 2
GREEN/YELLOW LEAD
19.0
(0.75)
38.0
(1.50)
108.0
(4.25)
73.7 (2.90)
WIRING DIAGRAM
#4 WHITE
#2 GREEN/YELLOW
#1 BLACK
#3 RED
#4 WHITE
#2 GREEN/YELLOW
#1 BLACK
#3 RED
FEMALE
MALE
FEMALE
