10-18 Troubleshooting
Base Module Replacement
(Bulletin 280G/281G)
Installation of Base Module
1) Mount Base Module with four mounting screws.
2) Install Control Module.
3) Tighten the four mounting screws.
4) Install motor, control brake, control and three-phase power,
comunication, and all other cables connected to the inputs.
5) Tighten four mounting screws on the terminal access cover plate.
6) Install Control Module.
7) Tighten the four mounting screws.
8) Install motor cable, comunication cables and all others connected
to the inputs and outputs.

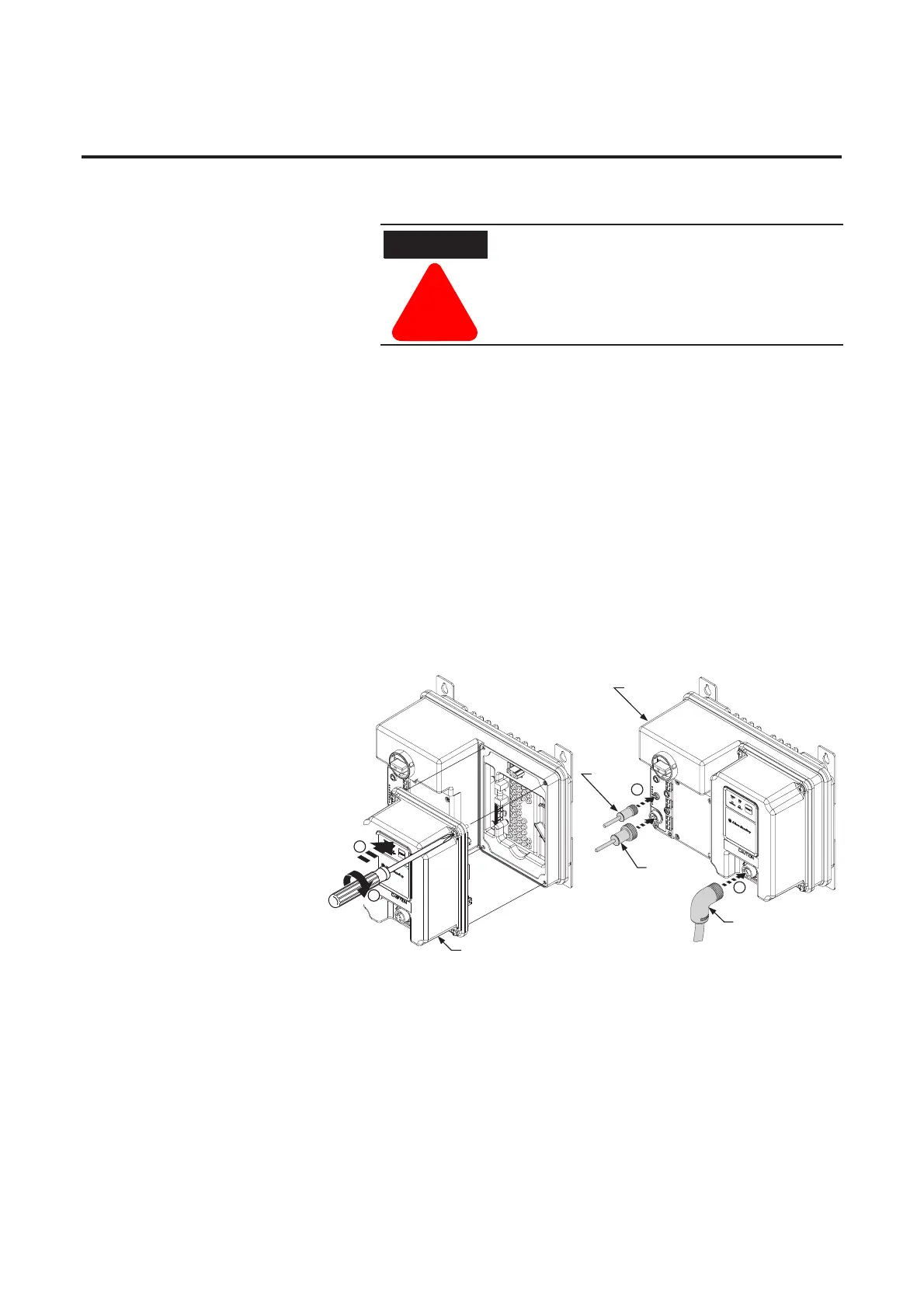

Figure 10.4 Bulletin 280G/281G Base Module Installation
To avoid shock hazard, disconnect main power
before working on the controller, motor, or control
devices
46 - 50 lb-in
7
4
3
2
Note: DeviceNet base module is
shown
Input/
Output
Cable
Motor Cable
Control Module
Base
Module
Communication
Cable
To Next Page
