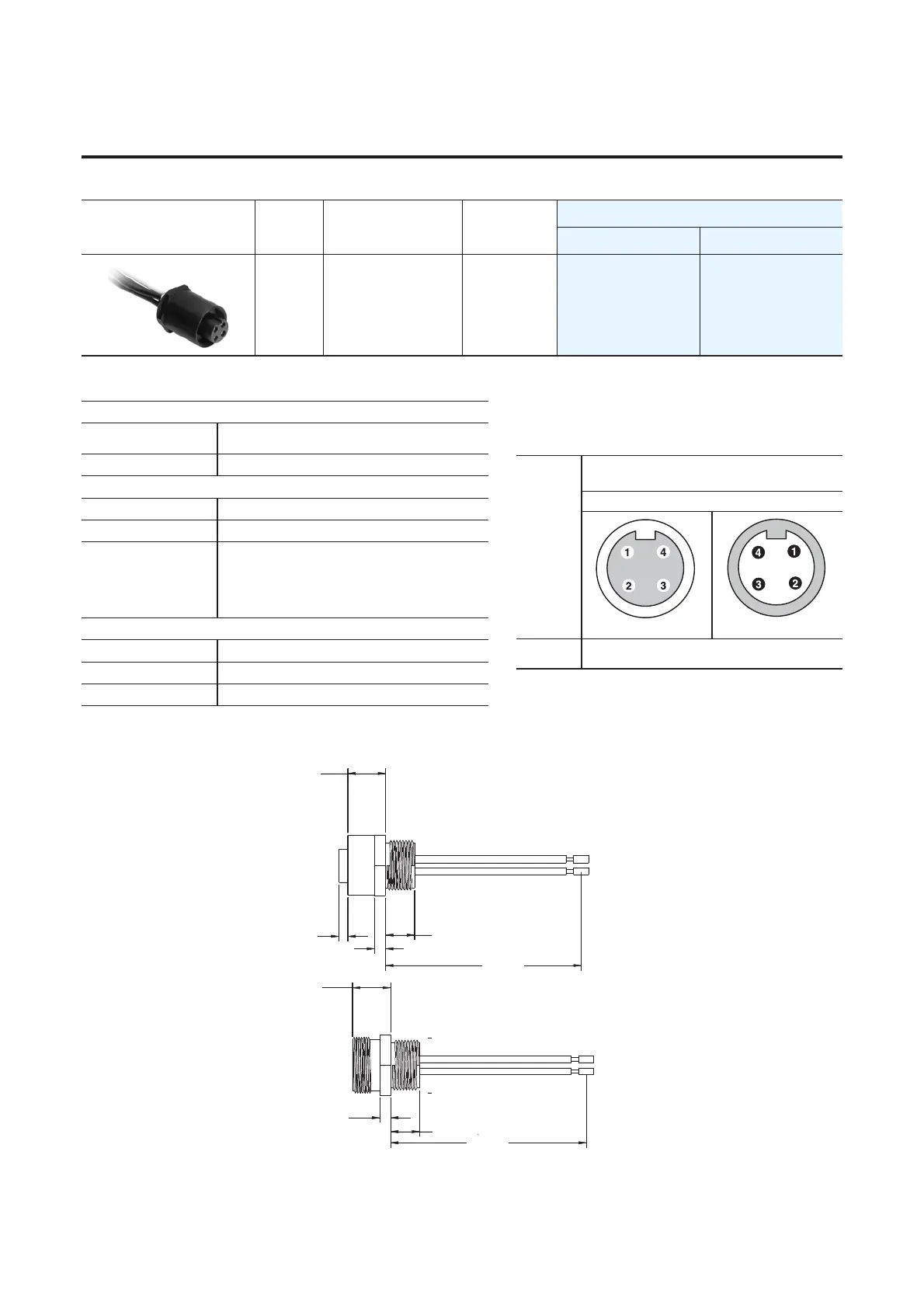

Specifications A-13
Table 1.C Power Receptacles (Male and Female)
Specifications Pinout and Color Code
Approximate Dimensions
Dimensions in millimeters (inches). Dimensions are not intended to be used for manufacturing purposes and are subject to change.
Pin Count Assembly Rating Color Code
Cat. No.
Female Male
0
0
4-pin 10 AWG, 600V, 25 A B 280-M35F-M1 280-M35M-M1
Mechanical
Receptacle Shell Material
Black Anodized Aluminum (female) and Zinc DieCast,
Black E-Coat (male) or 316 Stainless Steel
Insert Black PVC
Electrical
Contacts Copper Alloy with Gold over Nickel Plating
Cable Rating 600V AC/DC
Assembly Rating
4-pin: 10 AWG, 600V @ 25 A
Symmetrical Amps RMS Fault 65 kA when used with
Class CC, T, or J type fuses or
100 A circuit breaker
Environmental
Enclosure Type Rating IP67, NEMA 4; 1200 psi washdown
Certifications UL Listed (File No. E318496, Guide PVVA)
Standards Compliance UL 2237
Face View Pinout
10 AWG, 600V @ 25 A
4-pin
Female Male
Color Code
(B)
1 Black 3 Red
2 Green/Yellow Extended PIN 4 White
280-M35F-M1
280-M35M-M1
45.26
(1.782)
7.62 +/-2.54
(0.30 +/- 0.10)
11.89 (0.468)
6.35 (0.25)
11.89 (0.468)
6.35 (0.25)
51.61
(2.032)
1000
(39.37)
1000
(39.37)
