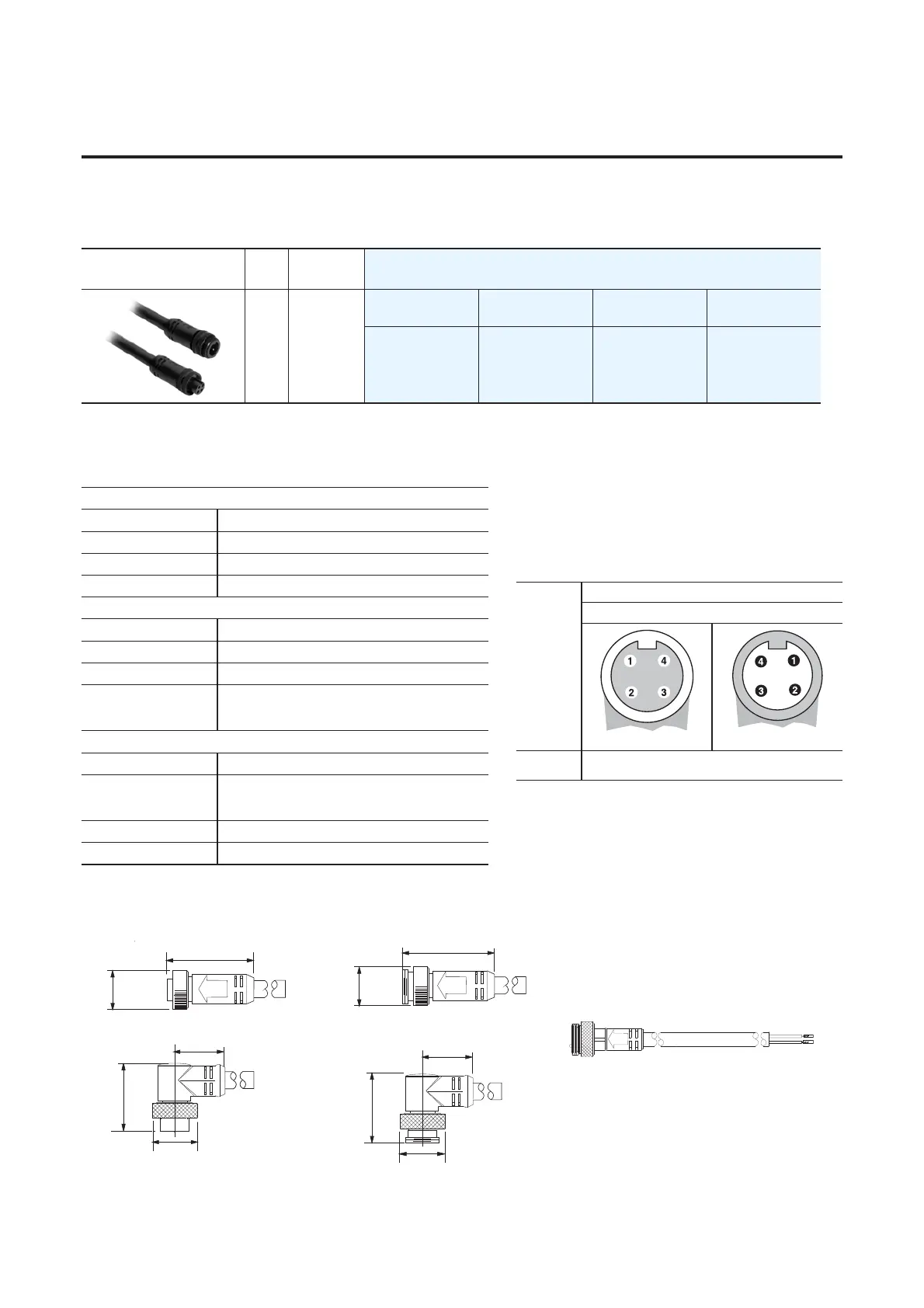

Specifications A-11
ArmorConnect™ Three-Phase Power Media
Table 1.A Patchcords
➊ The cat. no. is incomplete as shown. For desired length, replace the symbol with: 05 —0.5 m (1.62 ft), 1—1 m (3.3 ft), 015—1.5 m (4.9 ft), 2—2 m (6.5 ft),
025—2.5 m (8.1 ft), 3—3 m (9.8 ft), 4—4 m (13.1 ft), 6—6 m (19.7 ft), 8—8 m (26.2 ft), 10—10 m (32.8 ft), 12—12 m (39.4 ft), or 14—14 m (45.9 ft).
Specifications Pinout and Color Code
Approximate Dimensions
Dimensions in millimeters (inches). Dimensions are not intended to be used for manufacturing purposes and are subject to change.
Pin
Count
Assembly
Rating
Cat. No.
0
0
4-pin 600V, 25 A
Straight Female
Straight Male
Right-Angle Female
Straight Male
Straight Female
Right-Angle Male
Right-Angle Female
Right-Angle Male
280-PWRM35A-M➊ 280-PWRM35A-M➊ 280-PWRM35A-M➊ 280-PWRM35A-M➊
Mechanical
Coupling Nut Black Anodized Aluminum or 316 Stainless Steel
Housing Black PVC
Insert Black PVC
Cable Diameter 0.775 in. +/- 0.12 in. (19.68 mm +/- 0.5 mm)
Electrical
Contacts Copper Alloy with Gold over Nickel Plating
Cable Black PVC, dual rated UL TC/Open Wiring and STOOW
Cable Rating 600V AC/DC
Assembly Rating
600V @ 25 A, Symmetrical Amps RMS Fault: 65 kA when
used with Class CC, T, or J type fuses
or 100 A circuit breaker
Environmental
Enclosure Type Rating IP67, NEMA 4; IP69K 1200 psi washdown
Operating Temperature
UL Type TC 600V 90 °C Dry 75 °C Wet, Exposed Run (ER) or
MTW 600V 90 °C or STOOW 105 °C 600V -
CSA STOOW 600V FT2
Certifications UL Listed (File No. E318496, Guide PVVA)
Standards Compliance UL 2237
Face View Pinout
4-pin
Female Male
Color Code
1 Black 3 Red
2 Green/Yellow Extended PIN 4 White
88.9 (3.50)
38.6
(1.52)
Female straight
(1.95 - 2.25)
(2.94)
(1.52)
74.7
49.5 - 57.1
38.6
Female 90 deg.
88.9 (3.50)
38.6
(1.52)
Male straight
(1.95 - 2.25)
(2.94)
(1.52)
74.7
49.5 - 57.1
38.6
Male 90 deg.
Example of a Patchcord
