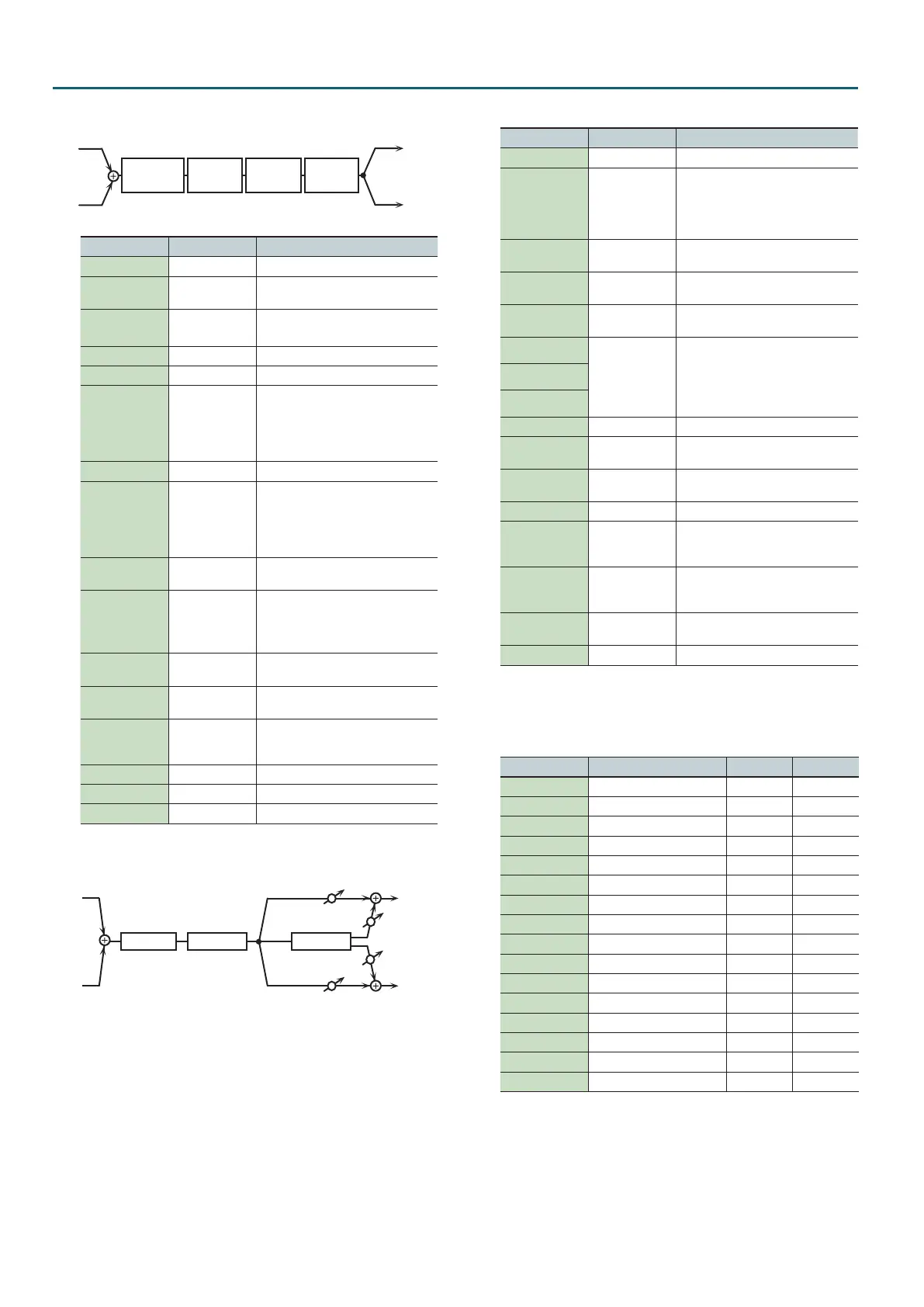

MFX Parameters
52: OD/DS g AutoWah
Amp
Simulator
2-Band
EQ
R in
Overdrive/
Distortion
R out
Auto
Wah
Parameter Value Explanation
Drive Switch OFF, ON Overdrive/distortion on/o
Drive Type
OVERDRIVE,
DISTORTION
Type of distortion
Drive # 0–127
Degree of distortion
Also changes the volume.
Tone # 0–127 Sound quality of the Overdrive eect
Amp Sw OFF, ON Turns the Amp Simulator on/o.
Amp Type
SMALL, BUILT-IN,
2-STACK, 3-STACK
Type of guitar amp
SMALL: small amp
BUILT-IN: single-unit type amp
2-STACK: large double stack amp
3-STACK: large triple stack amp
Auto Wah Switch OFF, ON Wah on/o
Auto Wah Filter
Type
LPF, BPF
Type of lter
LPF: Produces a wah eect in a broad
frequency range.
BPF: Produces a wah eect in a
narrow frequency range.
Auto Wah
Manual #
0–127
Center frequency at which the wah
eect is applied
Auto Wah Peak # 0–127
Width of the frequency region at
which the wah eect is applied
Increasing this value will make the
frequency region narrower.
Auto Wah Rate #
0.05–10.00 Hz,
note
Rate at which the wah eect is
modulated
Auto Wah
Depth #
0–127
Depth at which the wah eect is
modulated
Auto Wah
Balance #
D100:0W–
D0:100W
Volume balance of the sound that
passes through the wah (W) and the
unprocessed sound (D)
Low Gain -15–+15 dB Gain of the low range
High Gain -15–+15 dB Gain of the high range
Level 0–127 Output Level
53: GuitarAmpSim g Chorus
L in
R in
Chorus
Pre Amp
L out
R out
Balance W
Balance W
Balance D
Speaker
Parameter Value Explanation
Pre Amp Sw OFF, ON Turns the amp switch on/o.
Pre Amp Type
Type of guitar
amp
JC-120, CLEAN TWIN, MATCH DRIVE,
BG LEAD, MS1959I, MS1959II,
MS1959I+II, SLDN LEAD, METAL5150,
METAL LEAD, OD-1, OD-2, TURBO,
DISTORTION, FUZZ
Pre Amp Volume
#
0–127
Volume and amount of distortion of
the amp
Pre Amp Master
#
0–127 Volume of the entire pre-amp
Pre Amp Gain
LOW, MIDDLE,
HIGH
Amount of pre-amp distortion
Pre Amp Bass
0–127
Tone of the bass/mid/treble frequency
range
* Middle cannot be set if “Match
Drive” is selected as the Pre Amp
Type.
Pre Amp Middle
Pre Amp Treble
Chorus Switch # OFF, ON Chorus on/o
Chorus Pre Delay 0.0–100.0 ms
Adjusts the delay time from the direct
sound until the chorus sound is heard.
Chorus Rate
(Hz) #
0.05–10.00 Hz Frequency of modulation
Chorus Depth # 0–127 Depth of modulation
Chorus Balance #
D100:0W–
D0:100W
Volume balance of the sound that
passes through the chorus (W) and
the unprocessed sound (D)
Speaker Sw OFF, ON
Selects whether the sound will be sent
through the speaker simulation (ON)
or not (OFF)
Speaker Type
(See the
following table)
Type of speaker
Level 0–127 Output Level
Specications of each Speaker Type
The speaker column indicates the diameter of each speaker unit (in
inches) and the number of units.
Type Cabinet Speaker Microphone
SMALL 1 small open-back enclosure 10 dynamic
SMALL 2 small open-back enclosure 10 dynamic
MIDDLE open back enclosure 12 x 1 dynamic
JC-120 open back enclosure 12 x 2 dynamic
BUILT-IN 1 open back enclosure 12 x 2 dynamic
BUILT-IN 2 open back enclosure 12 x 2 condenser
BUILT-IN 3 open back enclosure 12 x 2 condenser
BUILT-IN 4 open back enclosure 12 x 2 condenser
BUILT-IN 5 open back enclosure 12 x 2 condenser
BG STACK 1 sealed enclosure 12 x 2 condenser
BG STACK 2 large sealed enclosure 12 x 2 condenser
MS STACK 1 large sealed enclosure 12 x 4 condenser
MS STACK 2 large sealed enclosure 12 x 4 condenser
METAL STACK large double stack 12 x 4 condenser
2-STACK large double stack 12 x 4 condenser
3-STACK large triple stack 12 x 4 condenser
