21

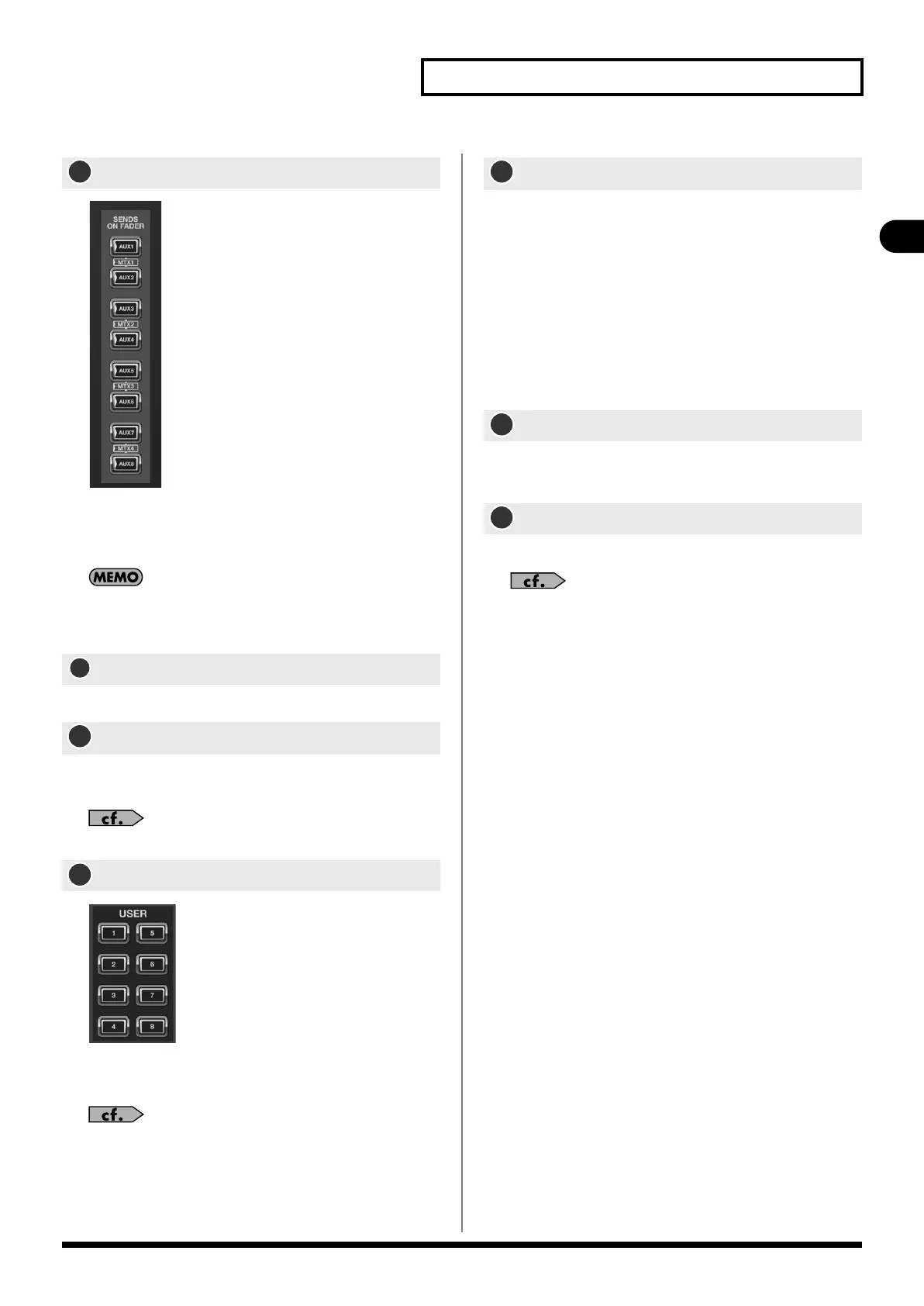

Explanation of the panels
Explanation of the panels
fig.MeterBtn.eps
Pressing one of the [AUX1] through [AUX8] buttons turns on
SENDS ON FADER mode for the corresponding bus. The button
flashes while in SENDS ON FADER mode.
To select MTX as the destination, simultaneously press the pair
[AUX1]/[AUX2], [AUX3]/[AUX4], [AUX5]/[AUX6], or [AUX7]/
[AUX8].
This Button cancels (turns off) solo for all channels and buses.
This button turns talkback on or off. It lights up when talkback is
on.
“Talkback” (p. 89)
fig.SetupSectGuide.eps
These buttons access the functions assigned to USER [1] through
[8]. The functions of these buttons are user-configurable.
“User Preference settings” (p. 94)
You can connect a set of headphones to these jacks, and use
them to monitor the MONITOR L/R audio signal.
• Miniature stereo phone type
• Stereo 1/4-inch phone type
The minimum impedance of headphones that you can
connect is 16
Ω
* When connecting sets of headphones to both the miniature stereo
phone and the stereo 1/4-inch phone type jacks, ensure that the
combined impedance of the two sets of headphones is not less than
16
Ω
This adjusts the output level of headphones connected to the
PHONES jacks.
Here you can place an iPad for controlling the unit remotely.
“How to Use TABLET STAND” (p. 13)
SENDS ON FADER section
SOLO CLEAR button
TALKBACK ON button
USER button section
8
9
10
11
PHONES jacks
PHONES LEVEL knob
iPad connection area
