65
Effects,GEQ,External effects
Effects,GEQ,External effects
1.
In the top panel's DISPLAY section, press the [EFFECT]
button.

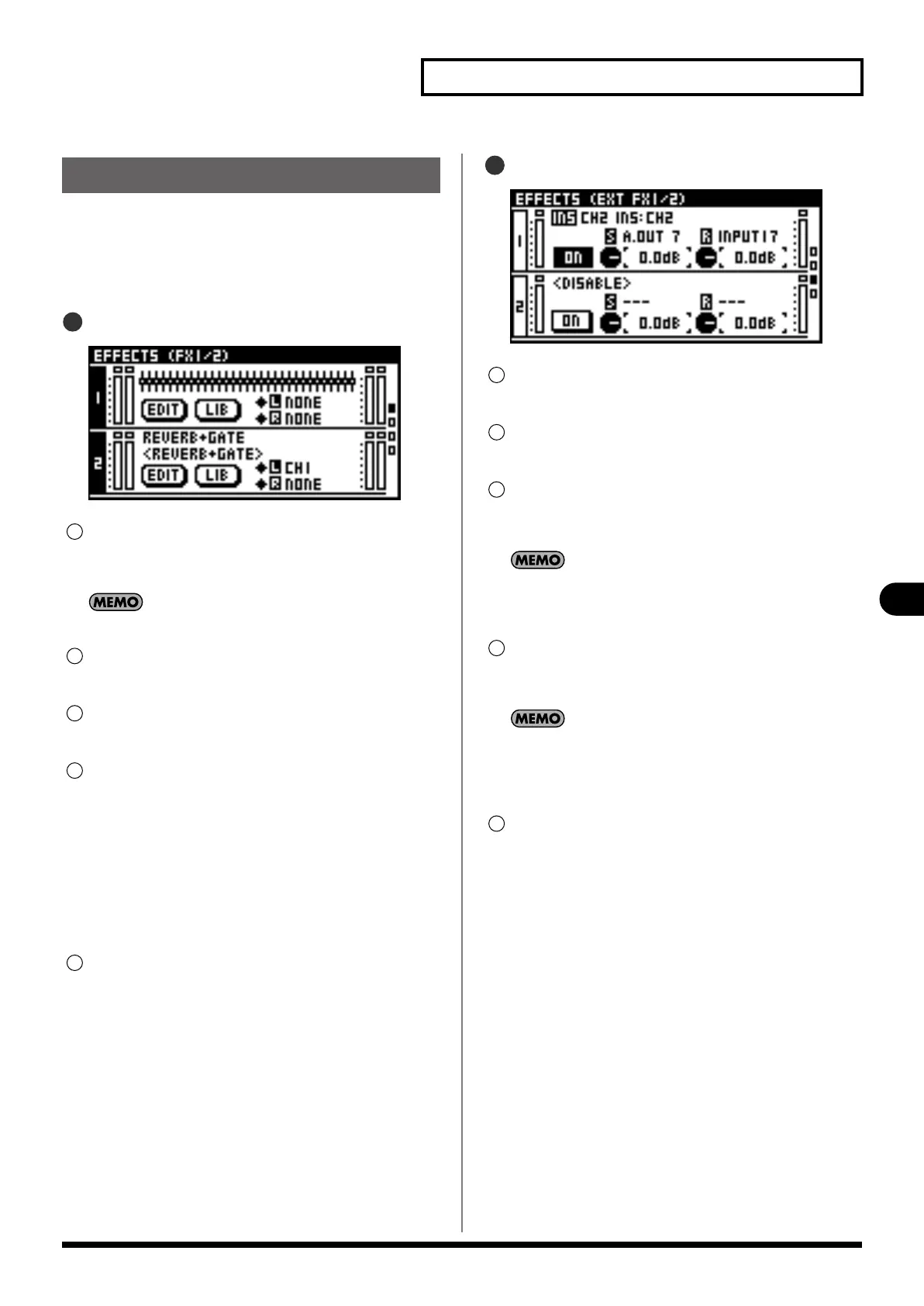

The EFFECTS screen appears.
You can use the up and down cursor buttons to change the
effect number.
FX1-4
Library name
The upper line shows the library name, and the lower line
shows the effect type name.
When the effect type is GEQ, the GEQ overview is displayed.
EDIT button
Pressing [ENTER] accesses the FX EDIT screen for the effect.
LIB button
Pressing [ENTER] access the FX LIBRARY screen.
INSERT/SOURCE indication
This shows the input-source for the effect.
1 LINK indication
This indicates the link status of the effect.
2 BYPASS indication
This indicates the bypass status of the effect.
3 INSERT/SOURCE indication
This shows the input-source for the effect.
Meters
This shows the input/output levels of the effect.
EXT FX1-4
INSERT indication
This shows the input-source for the external effect.
EXT FX ON button
This enables or disables the EXT FX.
SEND LEVEL knob
This adjusts the output level to the external effect in a range
of -Inf dB - +6.0 dB.
The ASSIGNABLE OUT jack is fixed at a nominal output level of
+4 dBu. The SEND LEVEL knob adjusts the output level in the
digital domain.
RETURN LEVEL knob
This adjusts the input level from the external effect in a
range of -Inf dB - 6.0 dB.
When you’re using it for insertion of an external effects device,
the INPUT jack’s nominal input level is fixed at +4 dBu.
The RETURN LEVEL knob adjusts the input level in the digital
domain.
Meters
This shows the input/output levels of the external effect.
EFFECTS screen
1
1
2
3
4
5
1
2
3
4
5
M-200i_e.book 65 ページ ２０１３年１月１６日 水曜日 午後４時９分
