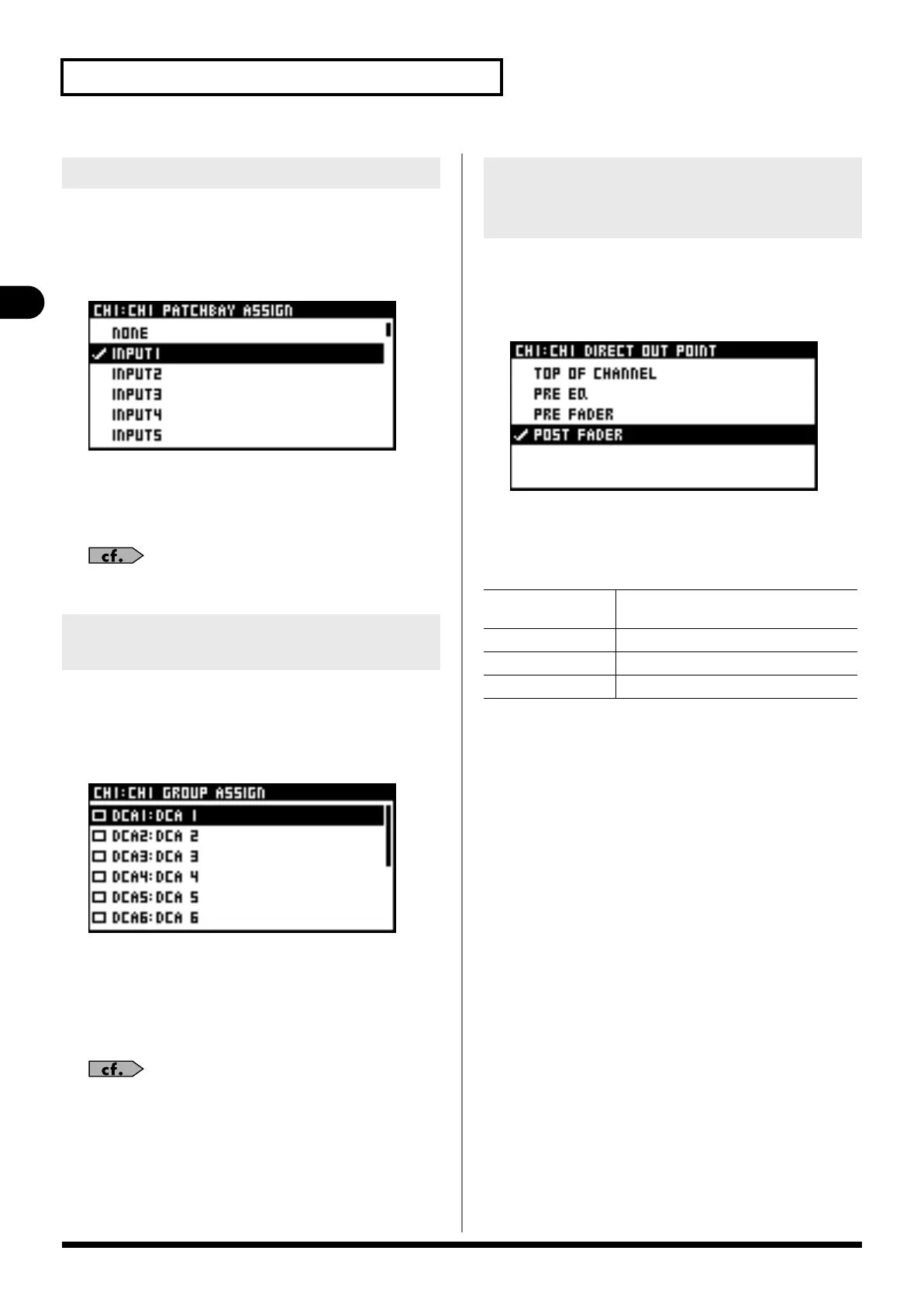

Input channel operations
Input channel operations
You can change the patchbay setting for a selected channel.
1.
Access the CHANNEL FUNCTION screen for the desired
channel.
2.
Move the cursor to “PATCHBAY“ and press [ENTER].
Move to the Patchbay screen for the selected channel.
3.
From the list, select the desired input jack, then press
[ENTER].
For information on operations at the Patchbay screen, refer to
the “Input/output patchbay“ section (p. 86).
You can assign input channels to DCA groups and mute groups.
1.
Access the CHANNEL FUNCTION screen for the desired
channel.
2.
Move the cursor to “GROUP ASSIGN“ and press [ENTER].
The GROUP ASSIGN screen appears.
3.
Move the cursor to the desired DCA or mute group and
press [ENTER].
4.
Press [EXIT] to quit the screen.
For details about DCA groups, refer to “DCA groups” (p. 60). For
details about mute groups, refer to “Mute groups” (p. 62).
1.
Access the CHANNEL FUNCTION screen for the desired
channel.
2.
Move the cursor to “DIRECT OUT POINT“ and press
[ENTER].
The DIRECT OUT POINT screen is displayed.
3.
Select the position from which the channel's signal is
sent as the direct out signal, then press [ENTER].
Changing the patching for a channel
Assigning channels to DCA groups and
mute groups
Selecting the position from which the
channel's signal is sent as the direct out
signal
TOP OF CHANNEL
Take the raw signal immediately out of the
preamp.
PRE EQ Take the pre-EQ signal.
PRE FADER Take the pre-fader signal.
POST FADER Take the post-fader signal.
